Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>
Panel Mode Door Actuator C236

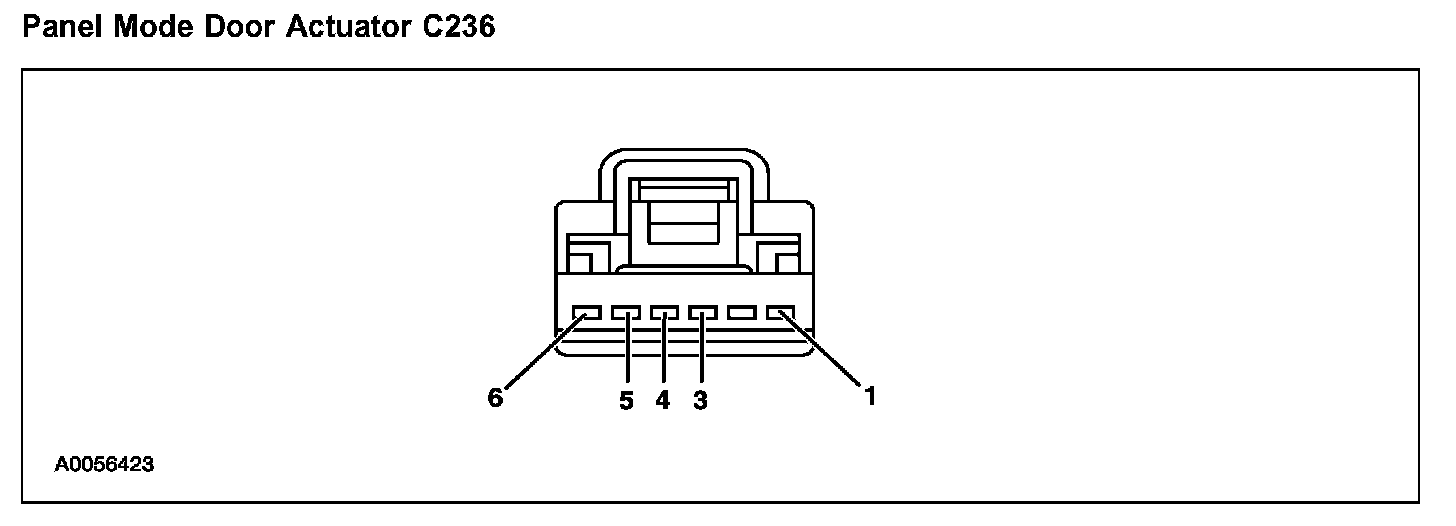

Panel Mode Door Actuator C236

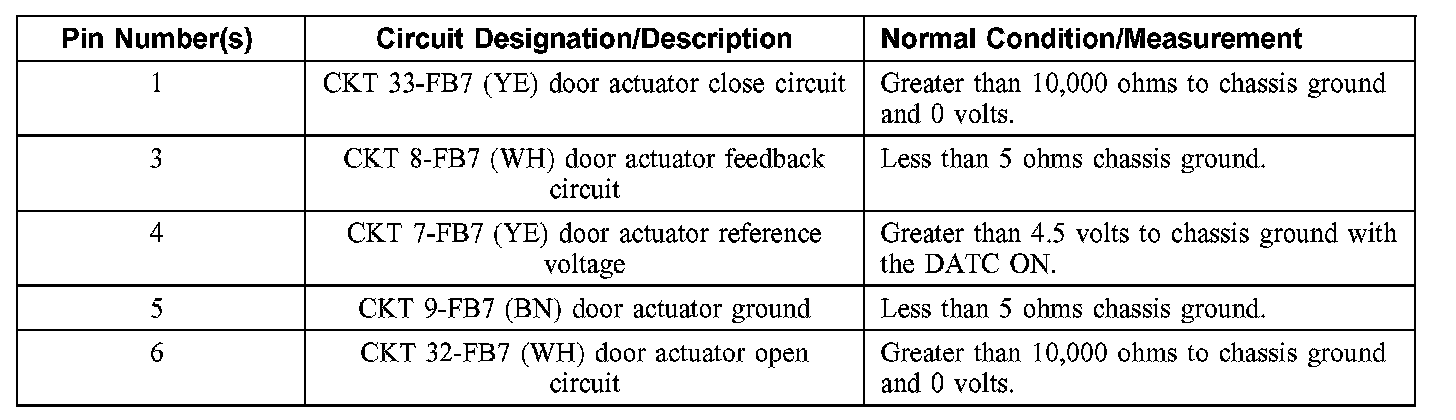

Panel Mode Door Actuator C236, Part 1:
Panel Mode Door Actuator C236, Part 2:
