Instrument Panel

INSTRUMENT CLUSTER AND PANEL ILLUMINATION

REMOVAL

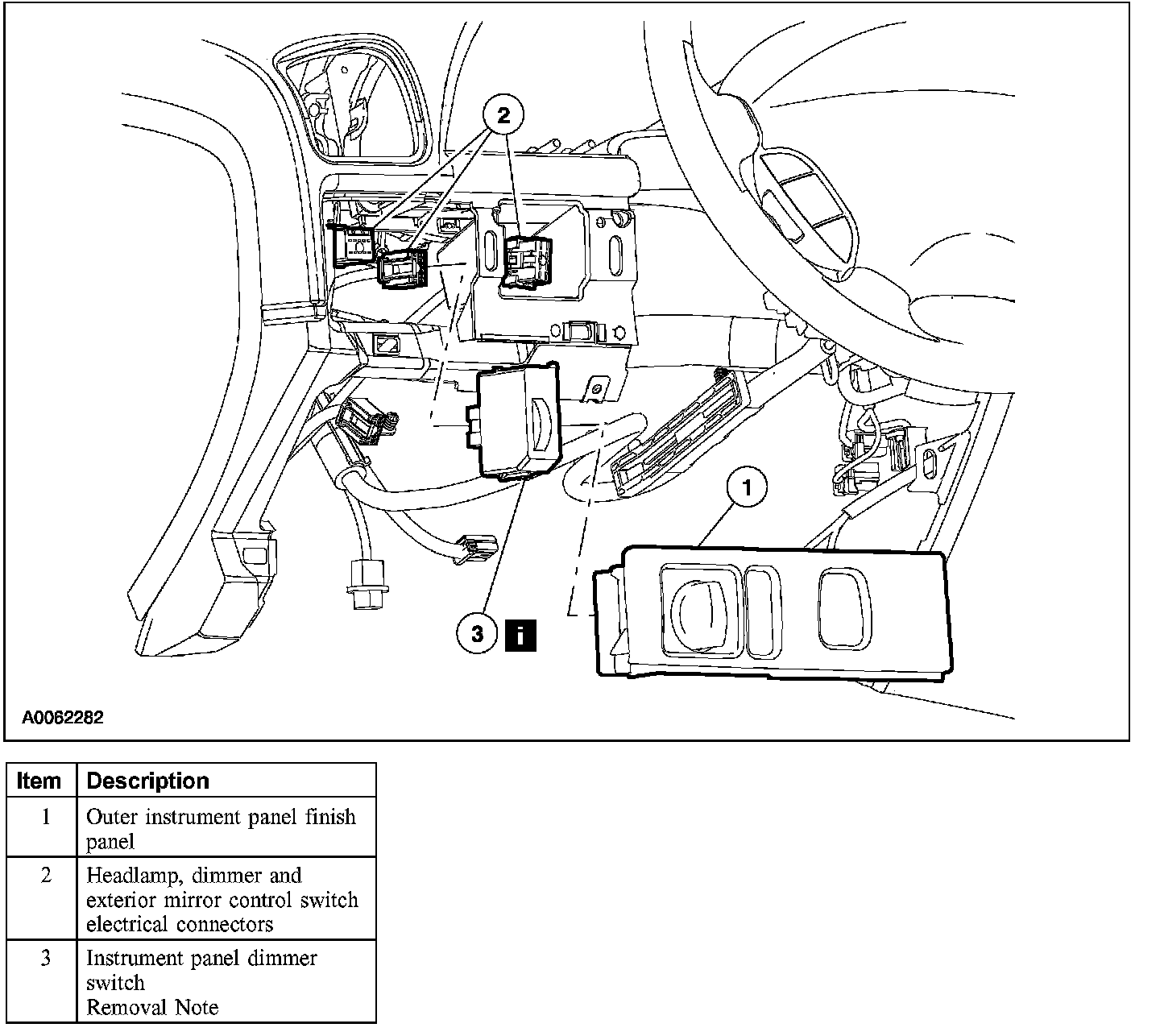

1. Remove the components in the order indicated in the illustration and table.

Item 3: Instrument Panel Dimmer Switch Removal Note
1. Release the tabs on the outer instrument panel finish panel to remove the instrument panel dimmer switch.

INSTALLATION
1. To install, reverse the removal procedure.
