Instrument Cluster Diagnostic Trouble Code (DTC) Index

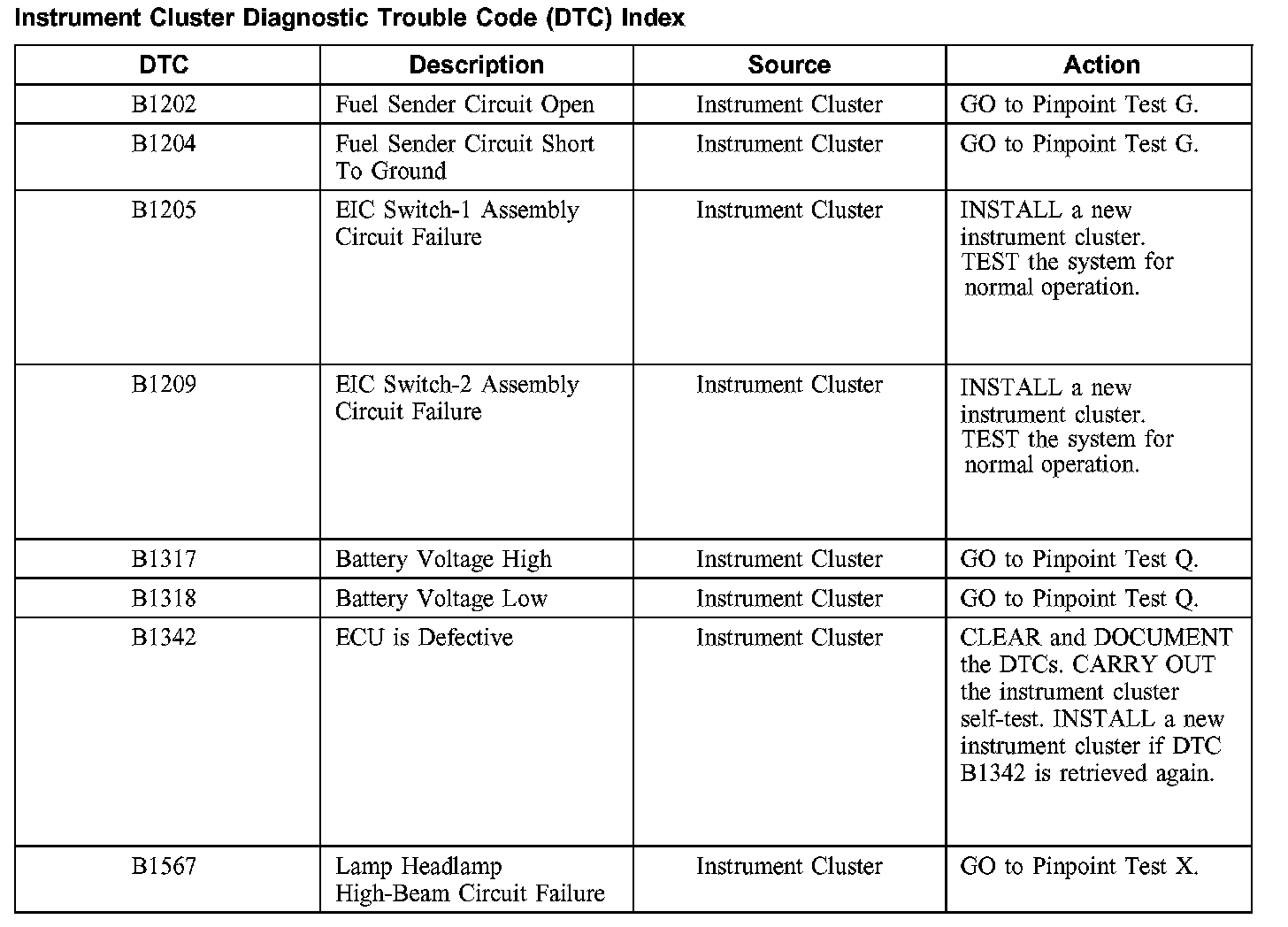

DTC Index B1202 - B1567:

DTC Index B2143 - U1123:

For a complete list of instrument cluster DTCs, refer to Information Bus (Module Communications Network).
