Connector Circuit Reference
>>
Front Electronic Module (FEM)
>>

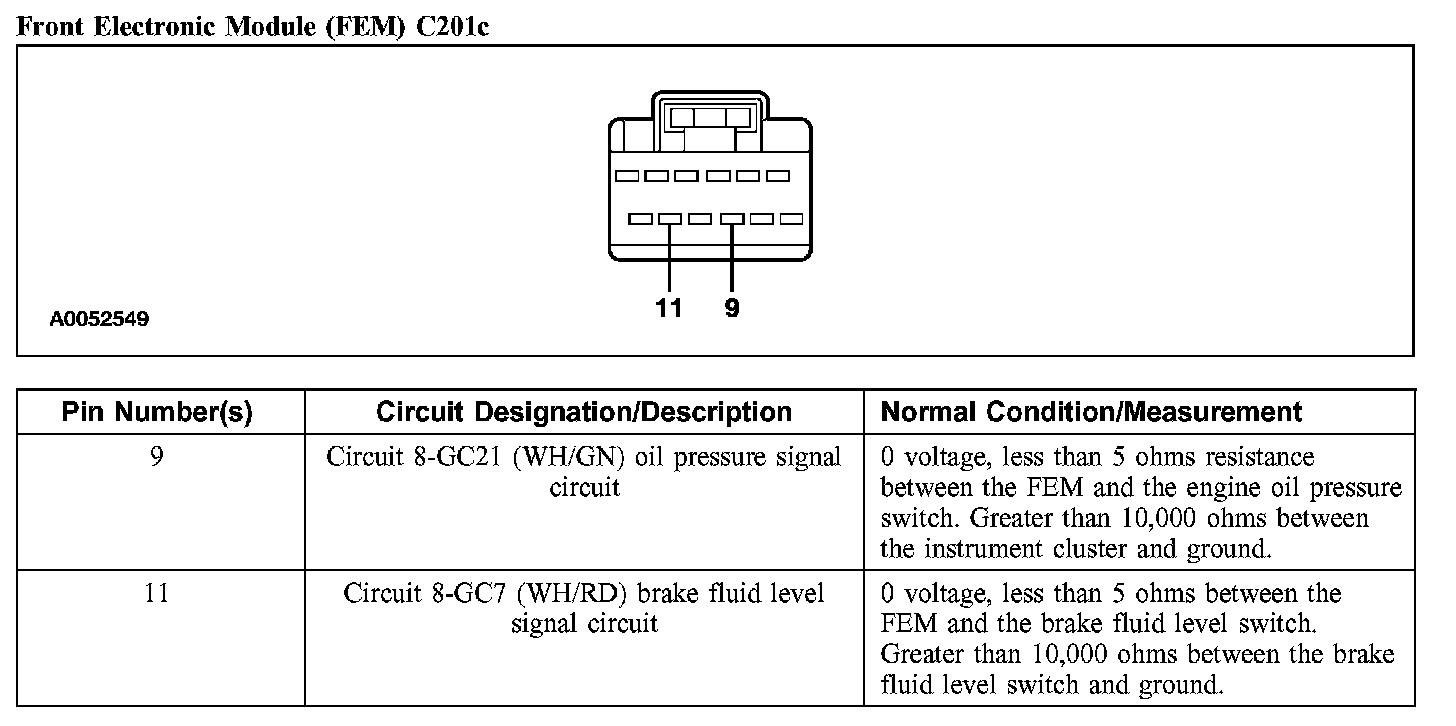

Front Electronic Module (FEM) C201c
Front Electronic Module (FEM) C201c
Front Electronic Module (FEM) C201c:
