Connector Circuit Reference
>>

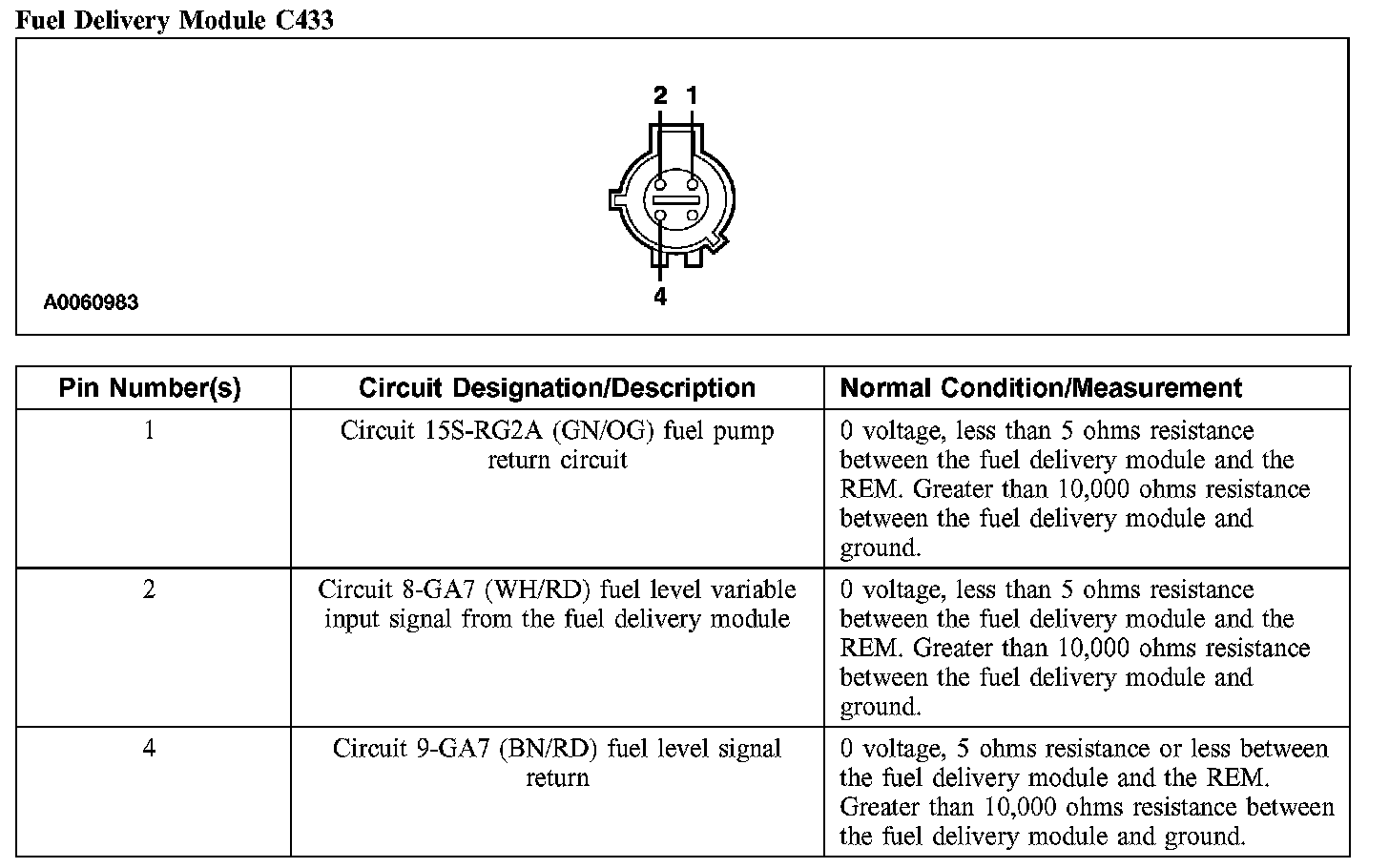

Fuel Delivery Module C433
Fuel Delivery Module C433
Fuel Delivery Module C433:
