Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Connector Circuit Reference >> Rear Electronic Module (Rem) >> Rear Electronic Module C420f

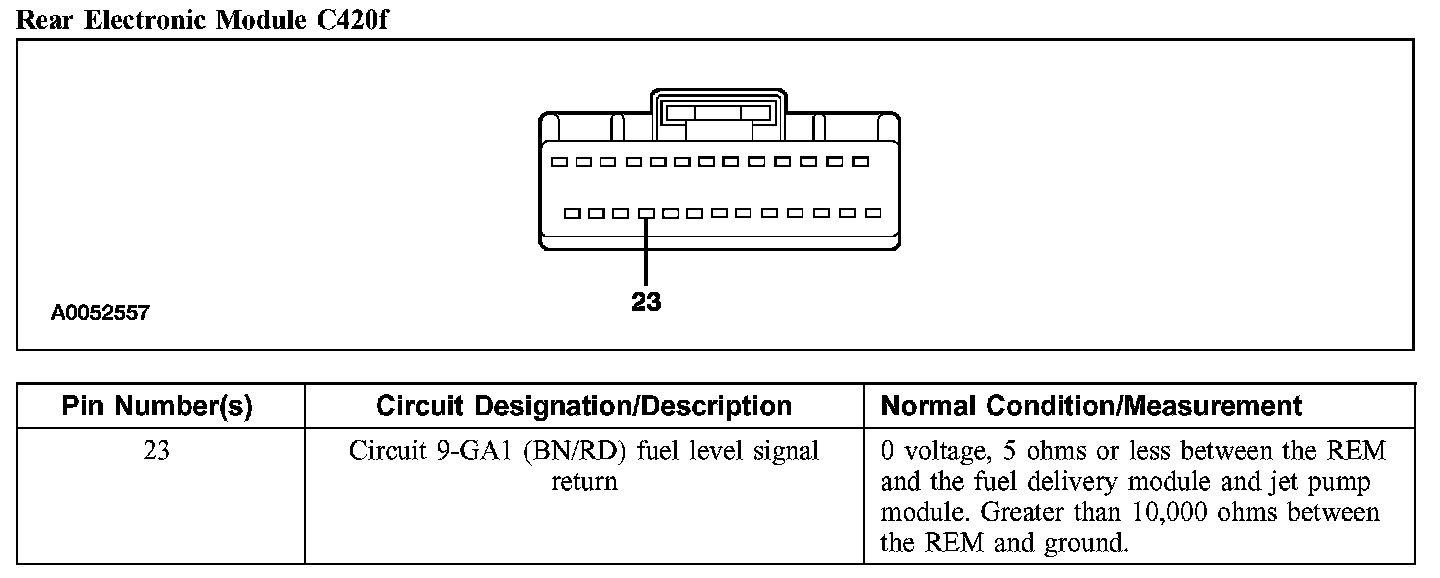

Rear Electronic Module C420f

Rear Electronic Module C420f:
