Ford
>>
2004
>>
Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster
>>
Connector Circuit Reference
>>
Restraint Control Module (RCM)
Restraint Control Module (RCM)

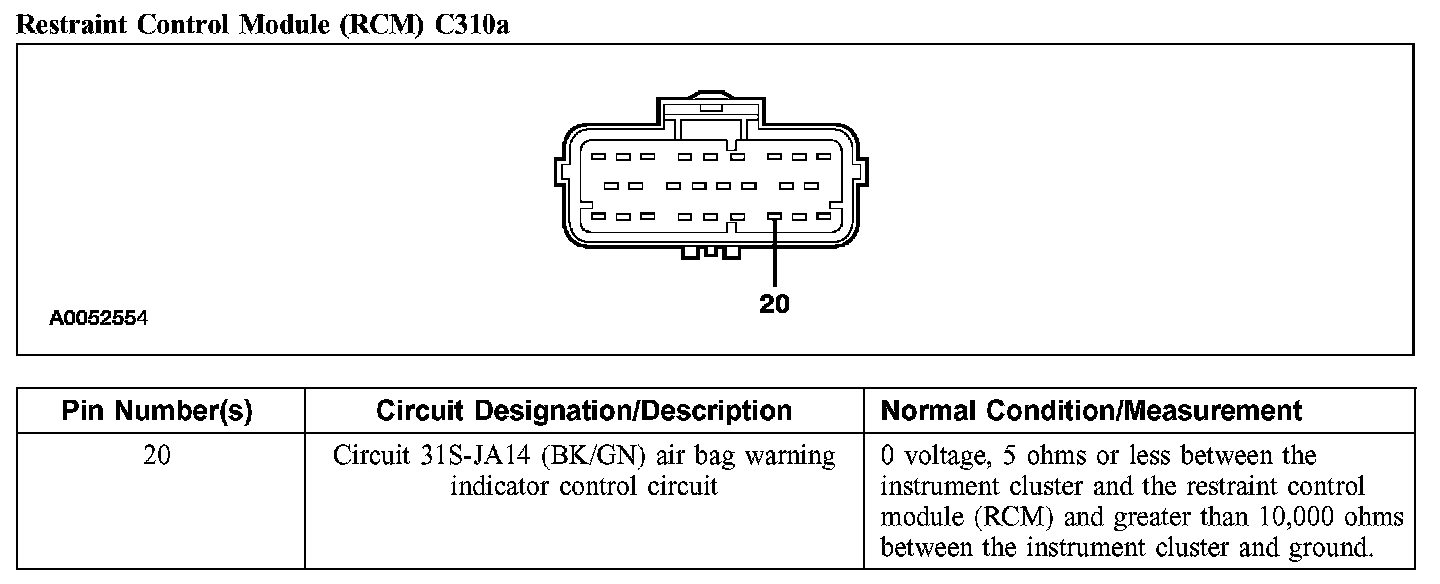

Restraint Control Module (RCM) C310a:
