Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Panel Illumination
>>
Diagnostic Schematic and Connector Information
>>

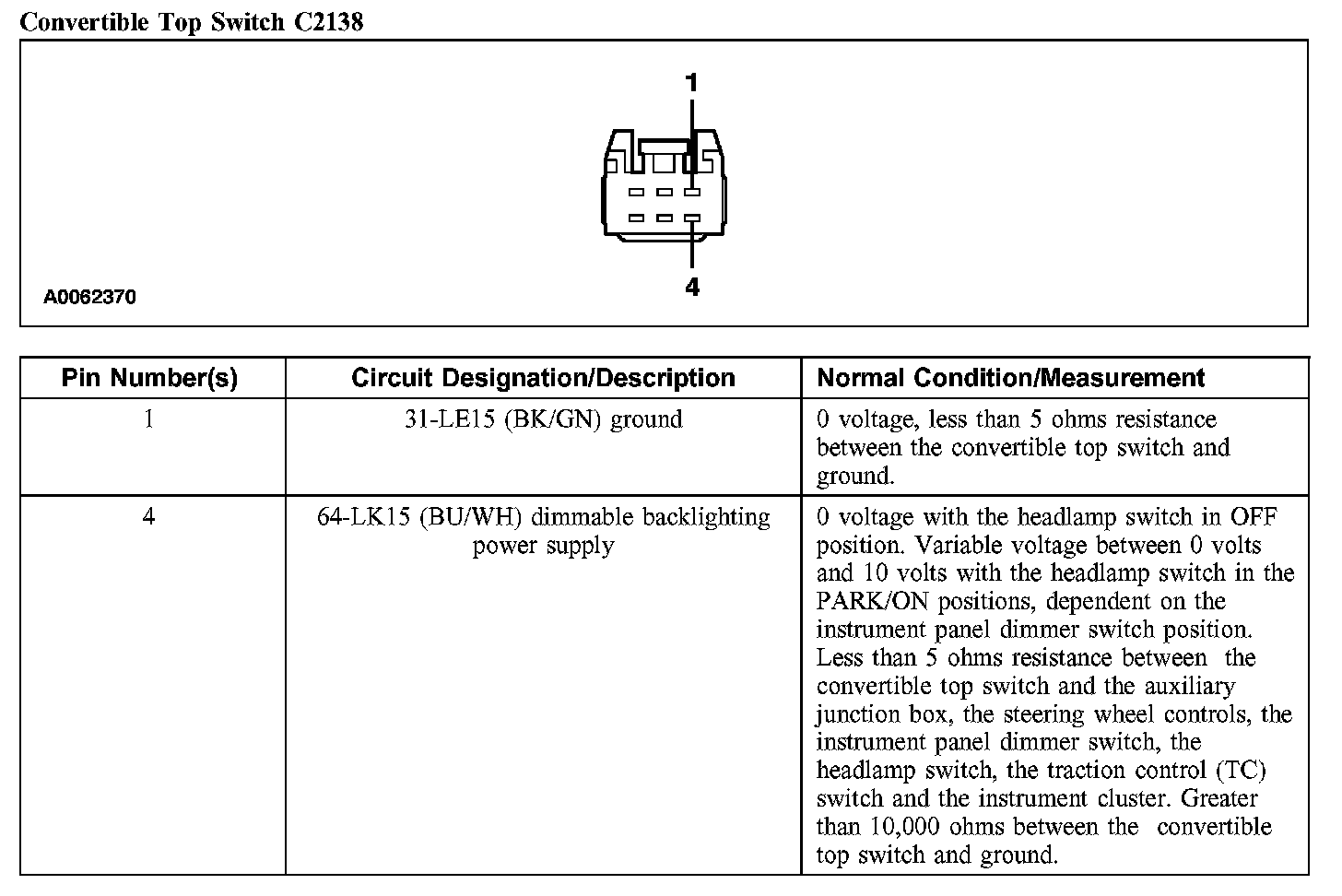

Convertible Top Switch C2138
Convertible Top Switch C2138
Convertible Top Switch C2138:
