Pinpoint Tests - Instrument Panel Illumination
>>
Diagnostic Schematic and Connector Information
>>
Instrument Panel Dimmer Switch
Instrument Panel Dimmer Switch

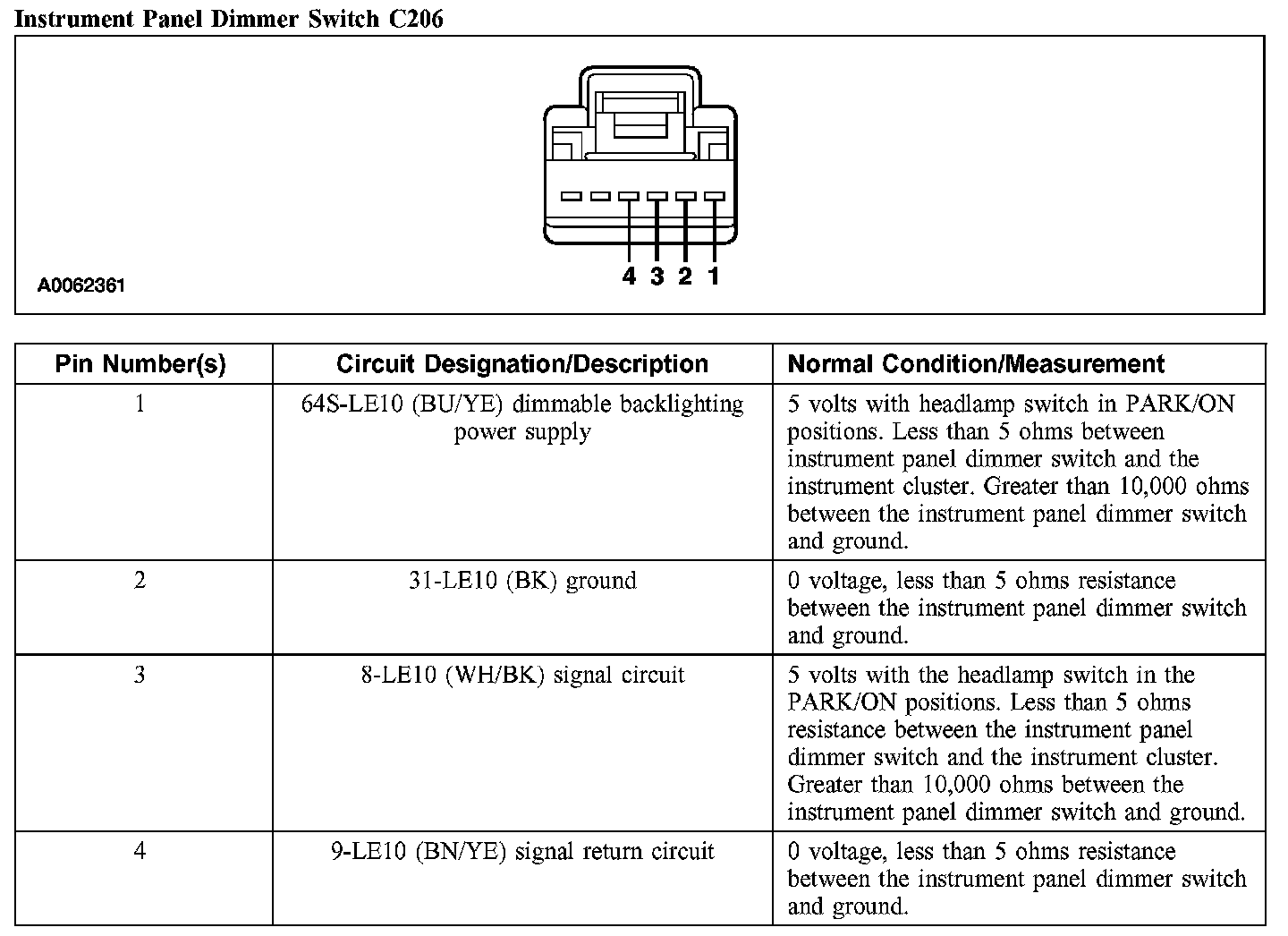

Instrument Panel Dimmer Switch C206:
