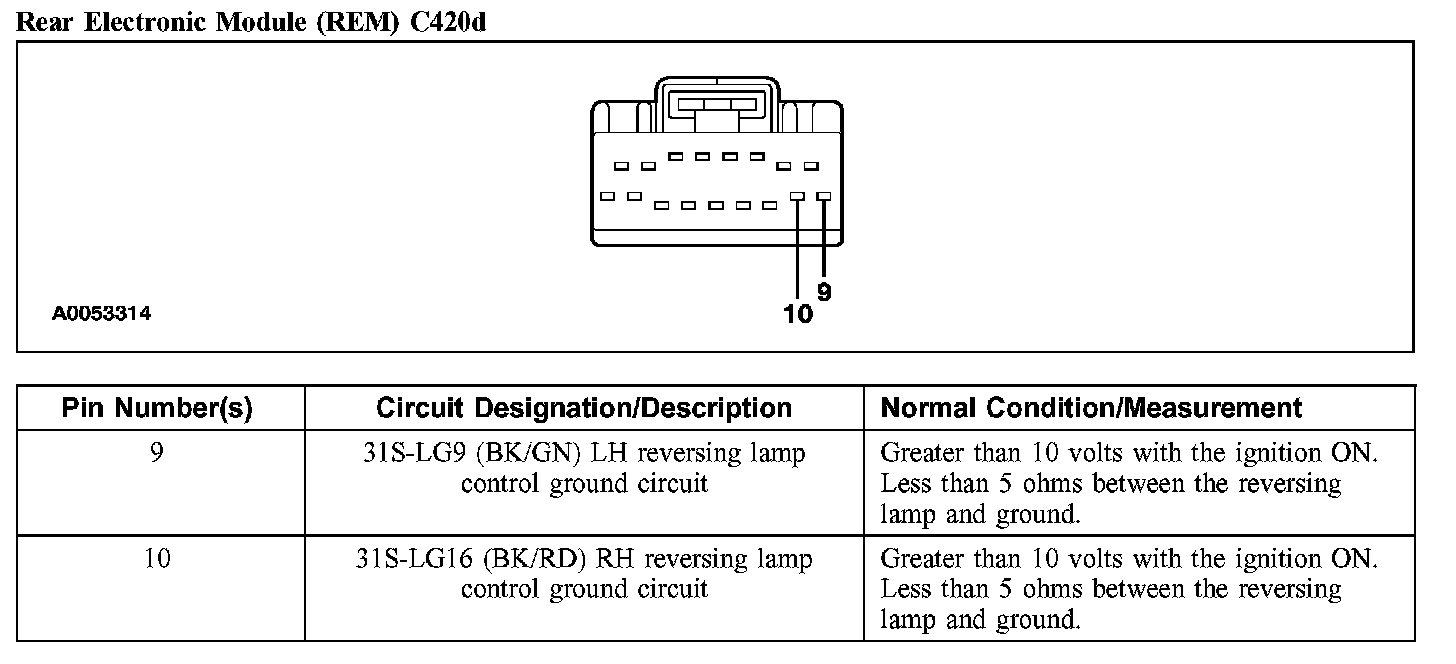

Rear Electronic Module (REM) C420d
Rear Electronic Module (REM) C420d
Rear Electronic Module (REM) C420d:
