Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Lighting and Horns >> Brake Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Brake Pedal Position (BPP) Switch C278

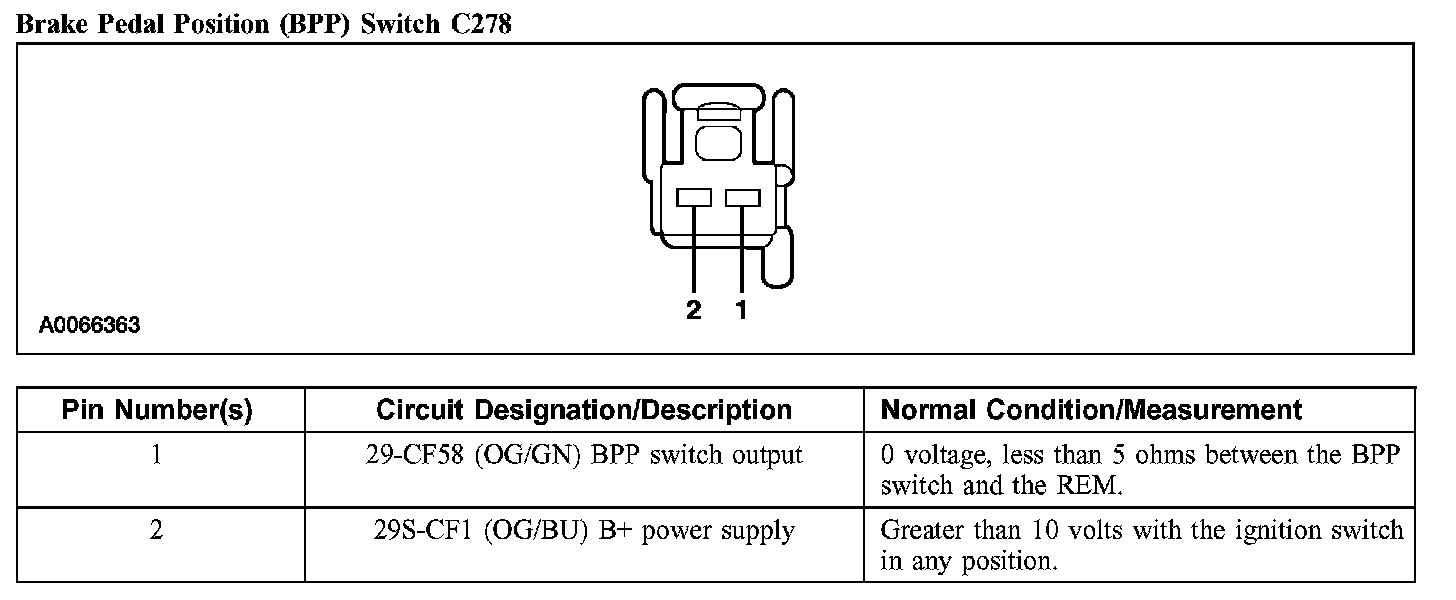

Brake Pedal Position (BPP) Switch C278

Brake Pedal Position (BPP) Switch C278:
