Connector Circuit Reference
>>

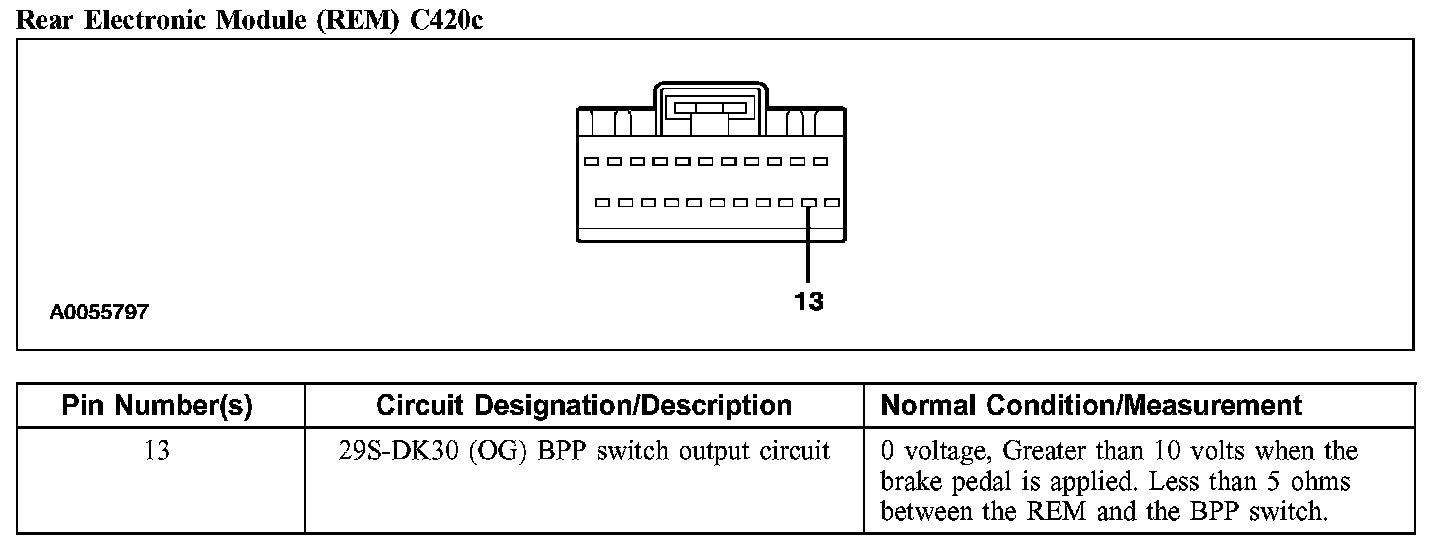

Rear Electronic Module (REM) C420c
Rear Electronic Module (REM) C420c
Rear Electronic Module (REM) C420c:
