Center Mounted Brake Lamp: Service and Repair

HIGH MOUNTED STOPLAMP

REMOVAL
1. Remove the removable hardtop if equipped.
2. Remove both rear wheels.

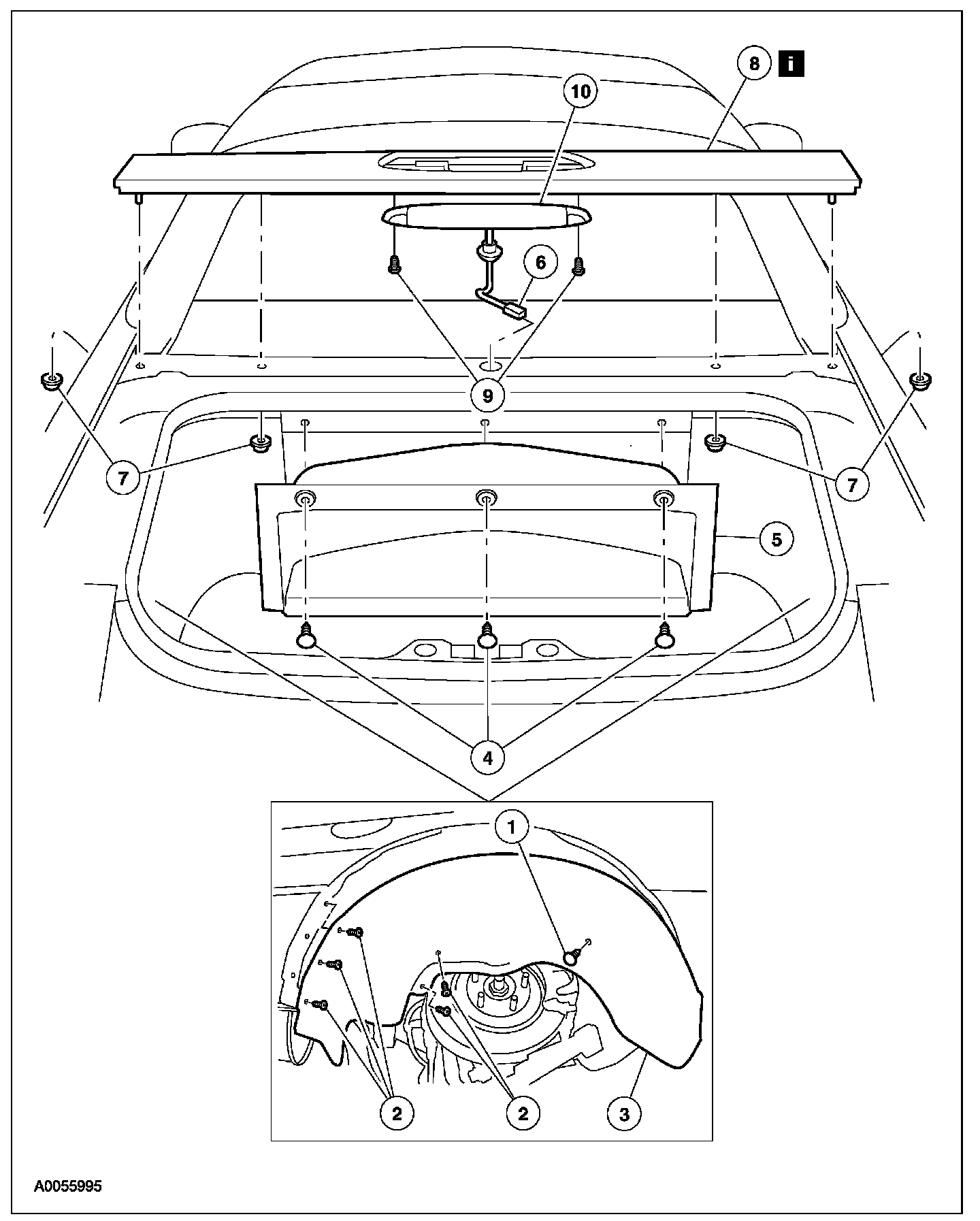

Part 1:

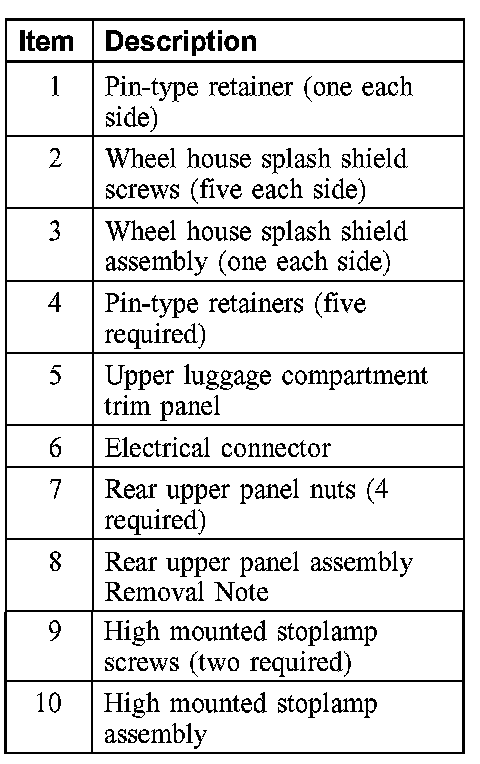

Part 2:

3. Remove the components in the order indicated in the illustration and table.

Items 8: Rear Upper Panel Assembly Removal Note

CAUTION: Take care not to break the locator pins, which are positioned on the rear upper finish panel assembly.

1. Carefully lift and remove the rear upper finish panel and pull the grommet through the rear deckplate.

INSTALLATION
1. To install, reverse the removal procedure.
