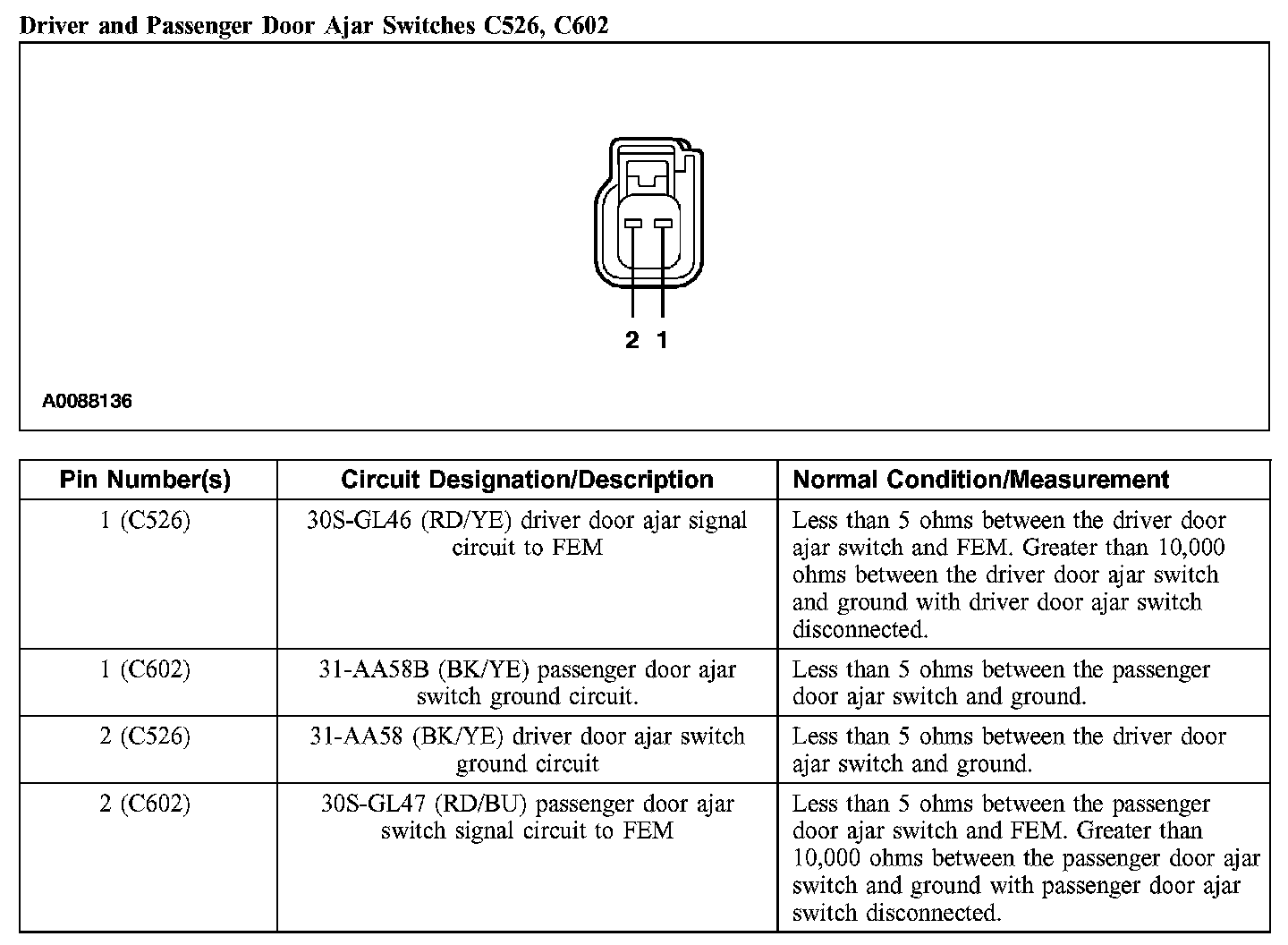

Driver and Passenger Door Ajar Switches C526, C602

Driver And Passenger Door Ajar Switches C526, C602:
