Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

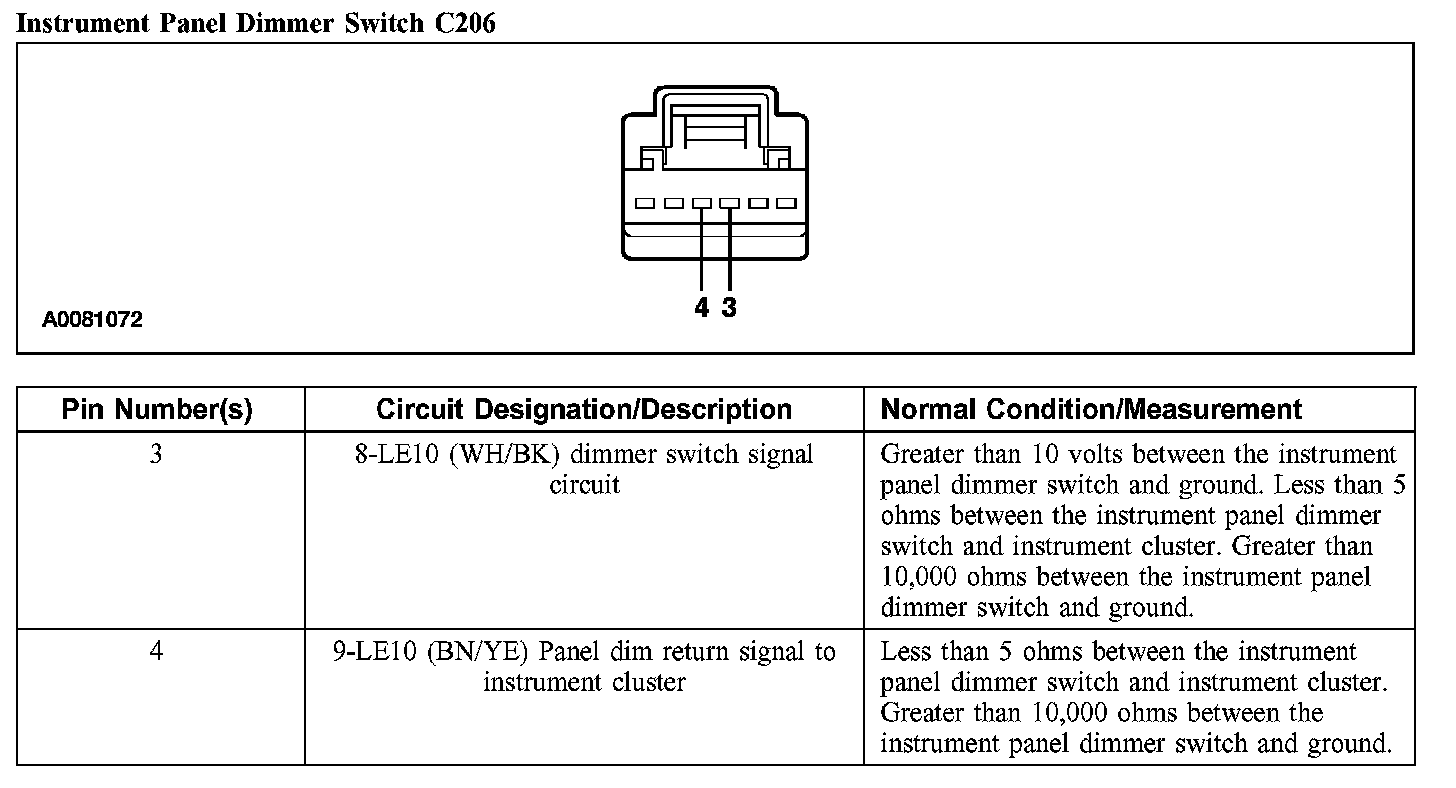

Instrument Panel Dimmer Switch C206
Instrument Panel Dimmer Switch C206
Instrument Panel Dimmer Switch C206:
