Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> LH and RH Footwell Lamps C209, C266

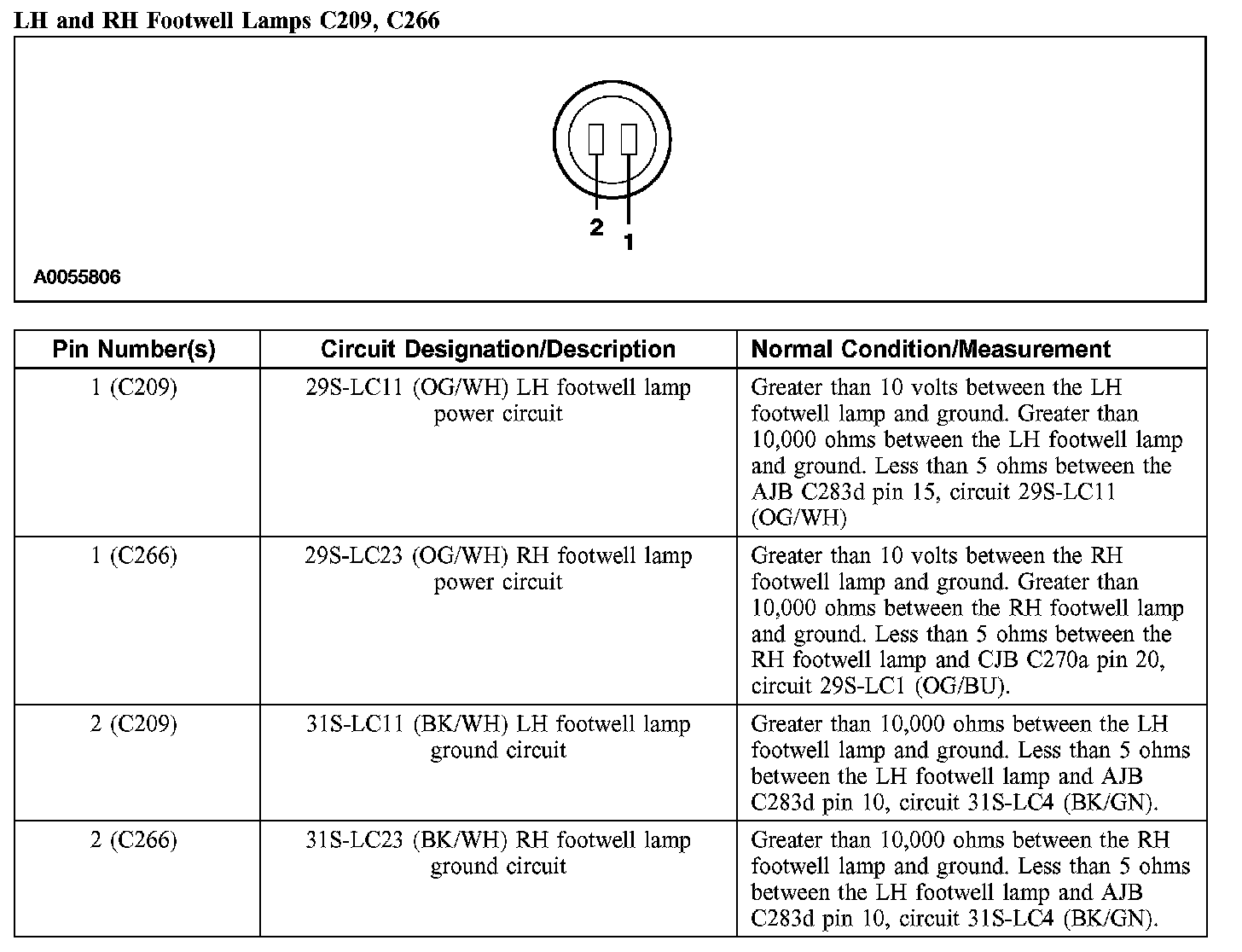

LH and RH Footwell Lamps C209, C266

LH And RH Footwell Lamps C209, C266:
