Home
>>
Ford
>>
2004
>>
Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Autolamps
>>
Connector Circuit Reference
>>

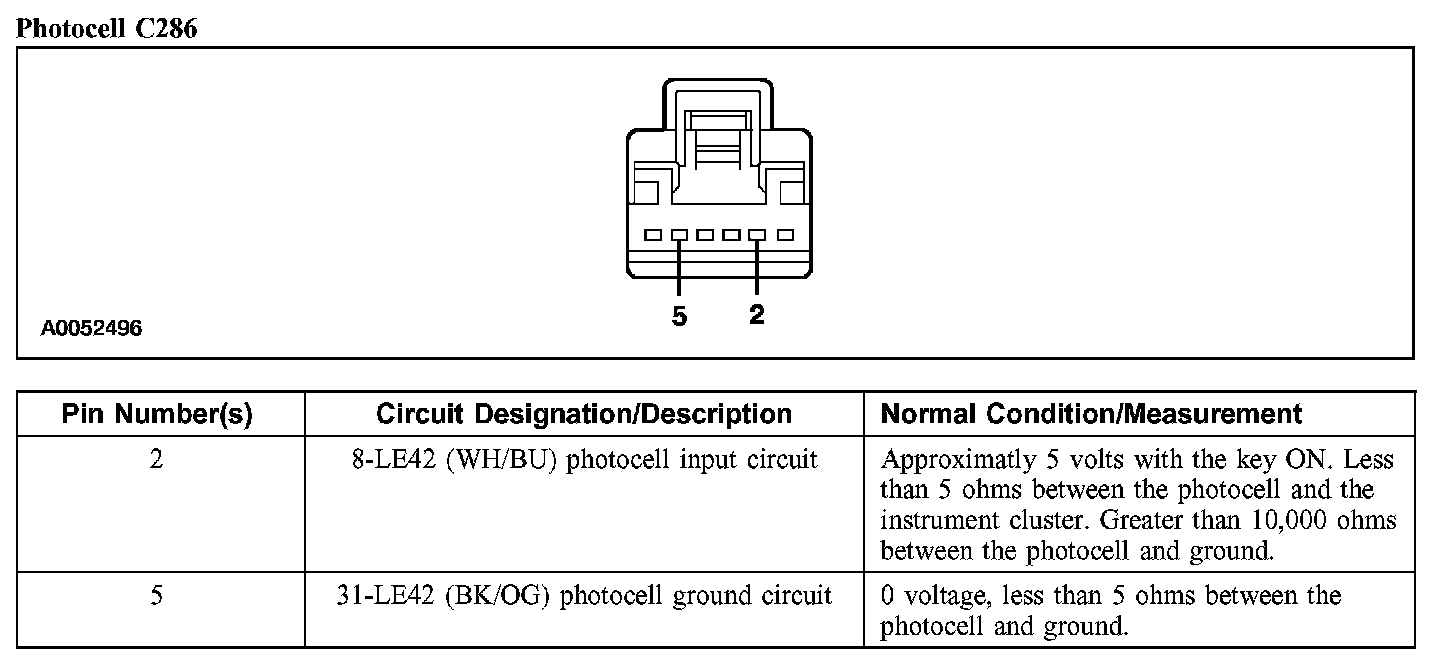

Photocell C286
Photocell C286
Photocell C286:
