Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Pinpoint Tests >> Headlamps >> Connector Circuit Reference >> Front Electronic Module (FEM) C201a

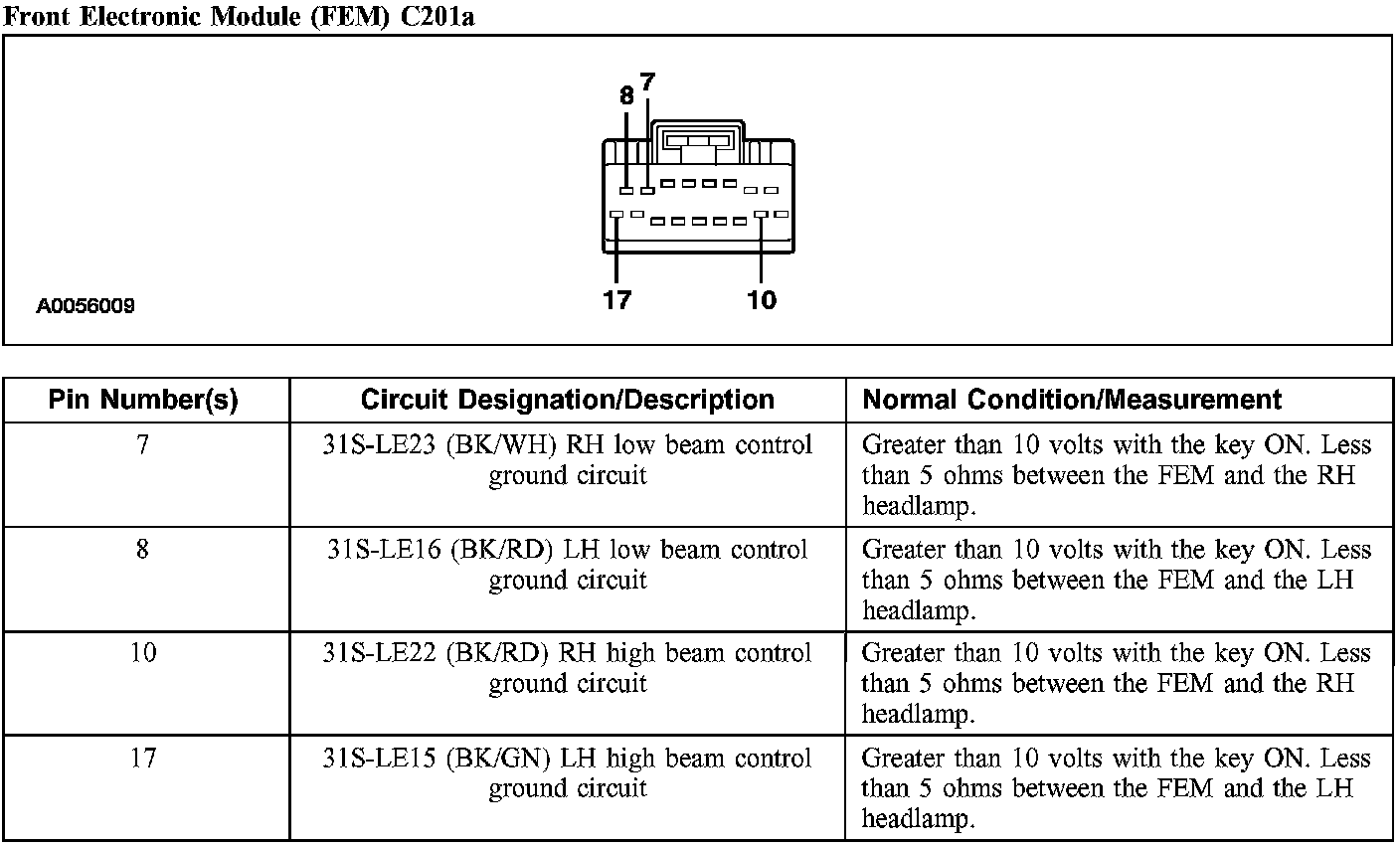

Front Electronic Module (FEM) C201a

Front Electronic Module (FEM) C201a:
