Diesel Data: Automotive Repair
Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Pinpoint Tests >> Headlamps >> Connector Circuit Reference >> LH Headlamp C1021, RH Headlamp C1041

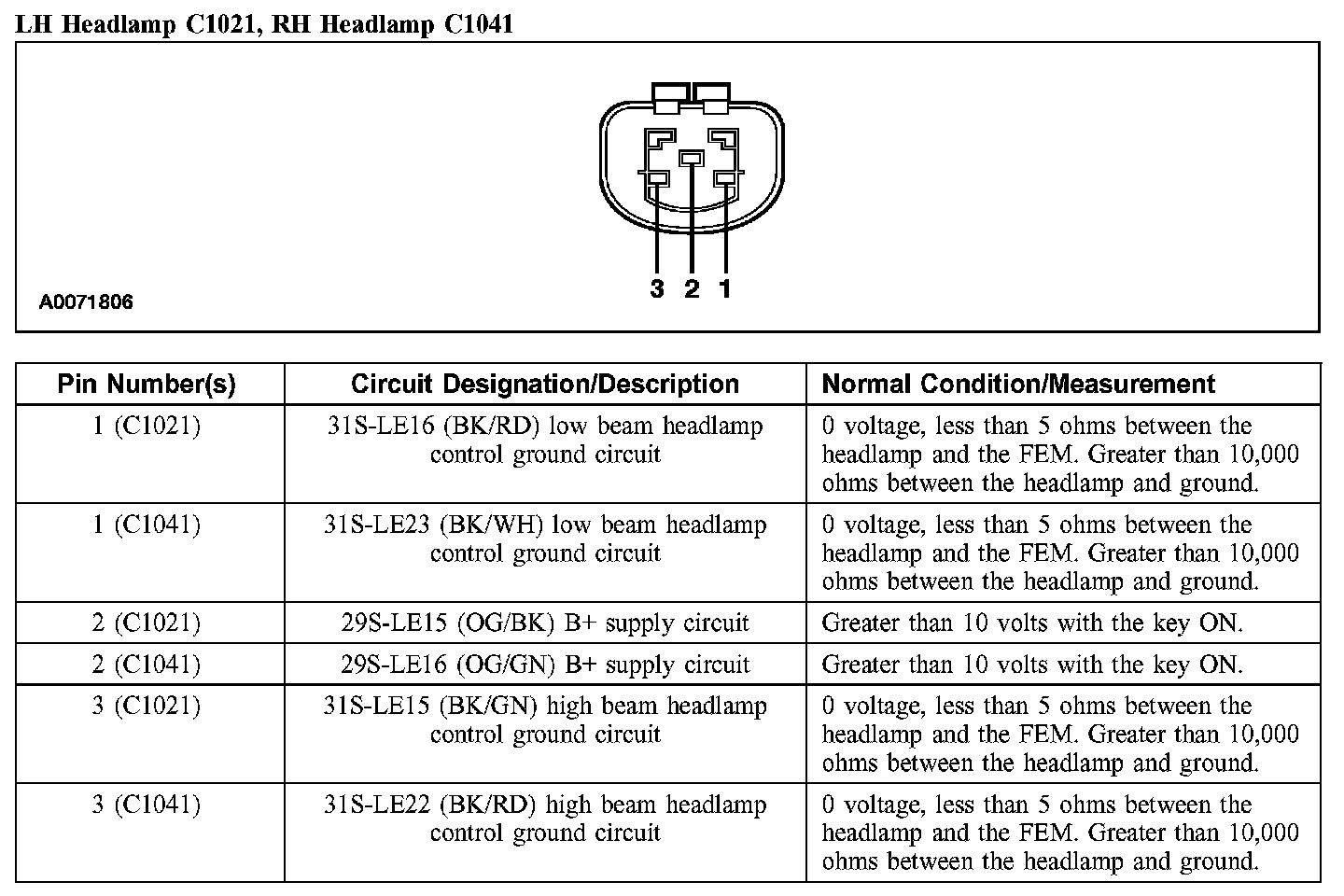

LH Headlamp C1021, RH Headlamp C1041

LH Headlamp C1021, RH Headlamp C1041:
