Horn: Service and Repair

HORN

REMOVAL
1. Raise and support the vehicle.

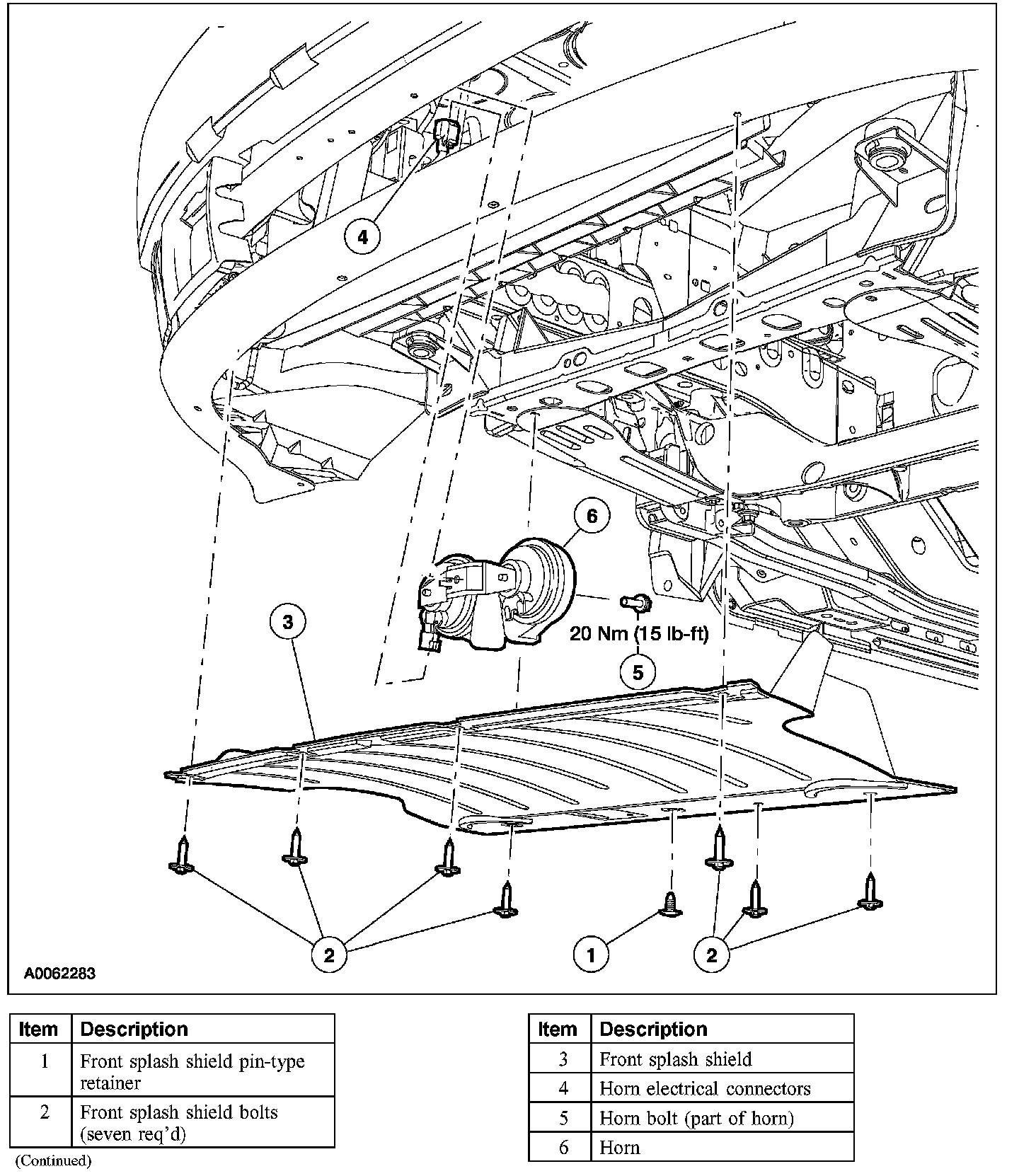

2. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
