Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Front Electronic Module (FEM) C201c

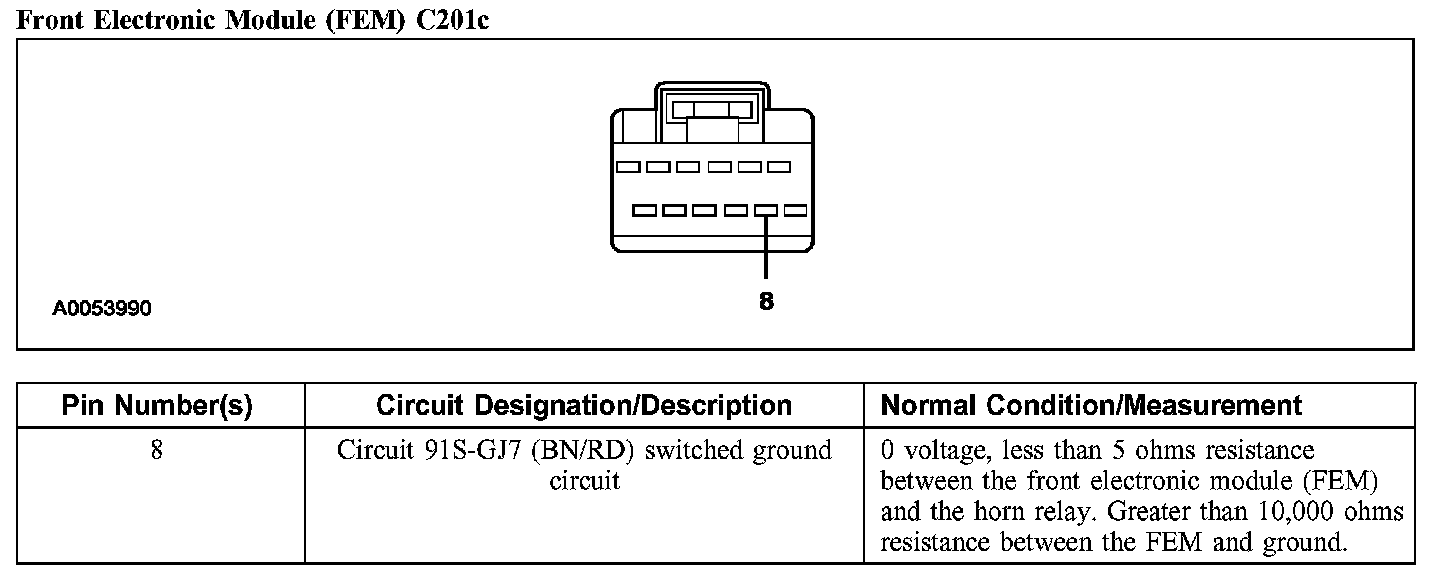

Front Electronic Module (FEM) C201c

Front Electronic Module (FEM) C201c:
