Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Parking Lamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

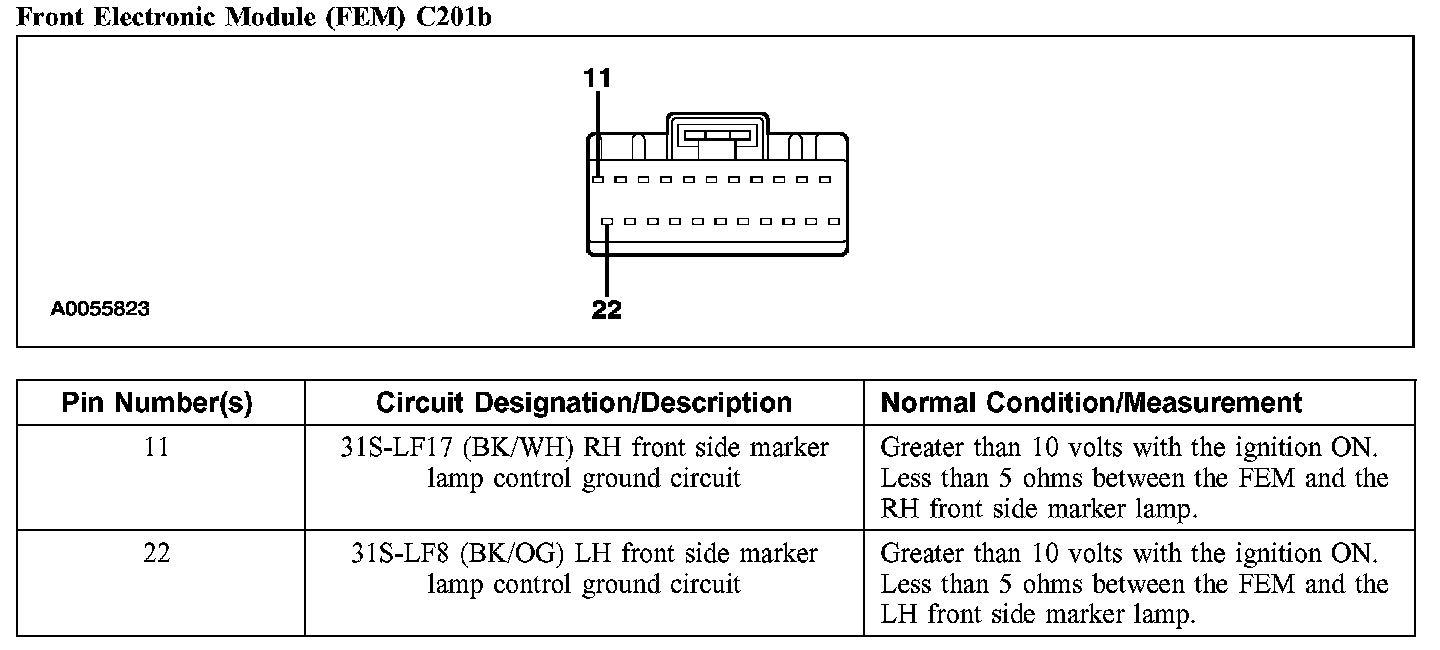

Front Electronic Module (FEM) C201b
Front Electronic Module (FEM) C201b
Front Electronic Module (FEM) C201b:
