Horn Switch: Service and Repair

HORN SWITCH

REMOVAL
1. Remove the driver air bag module.

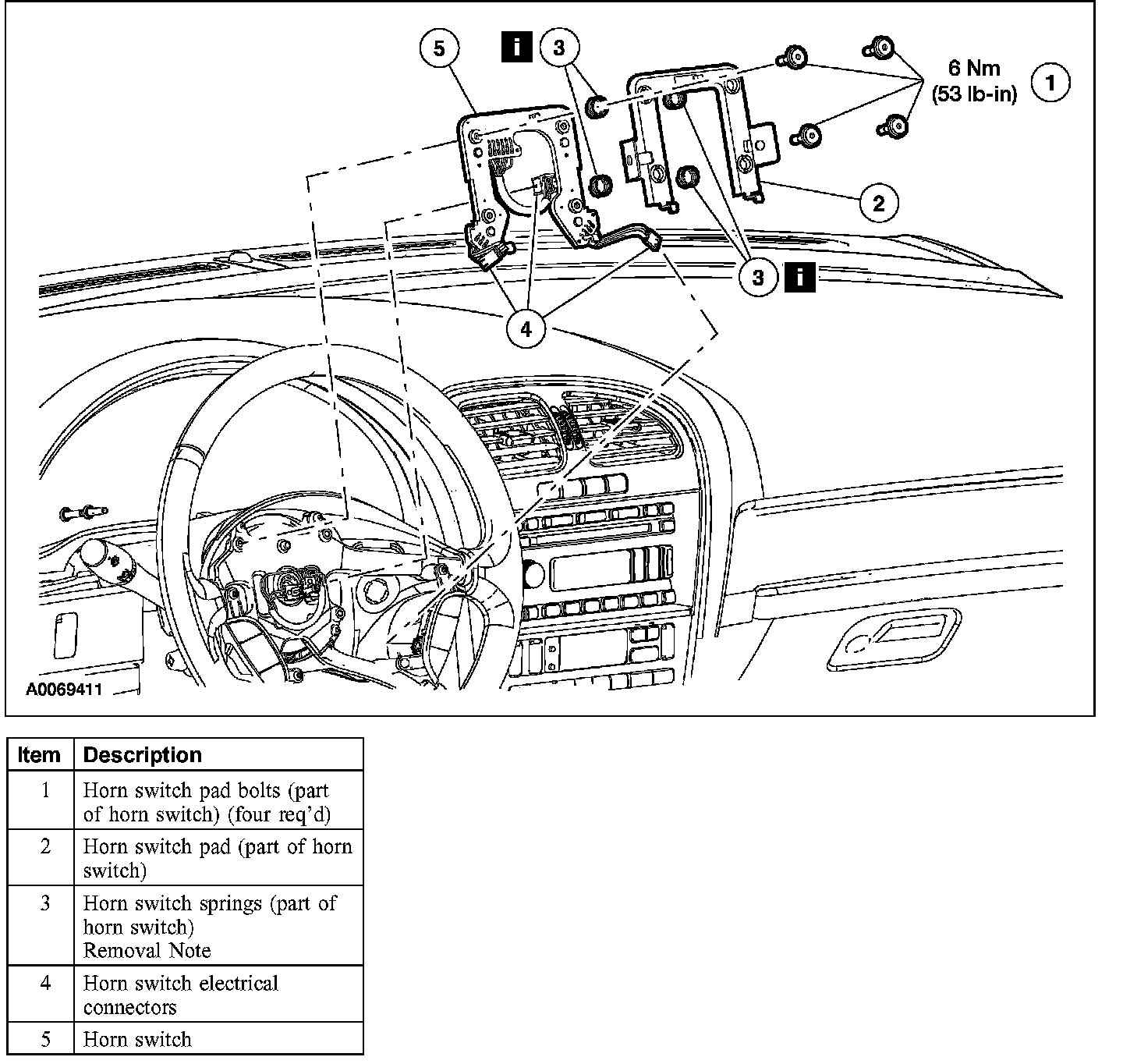

2. Remove the parts in the order indicated in the illustration and table.

Item 3: Horn Switch Springs Removal Note
1. The four horn switch springs are not attached. To avoid losing the springs use caution when removing the horn switch.

INSTALLATION
1. To install, reverse the removal procedure.
