Tail Lamp: Service and Repair

REAR LAMP ASSEMBLY

REMOVAL

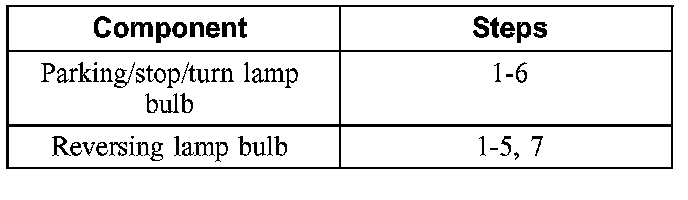

1. To remove individual components only, carry out the listed steps.

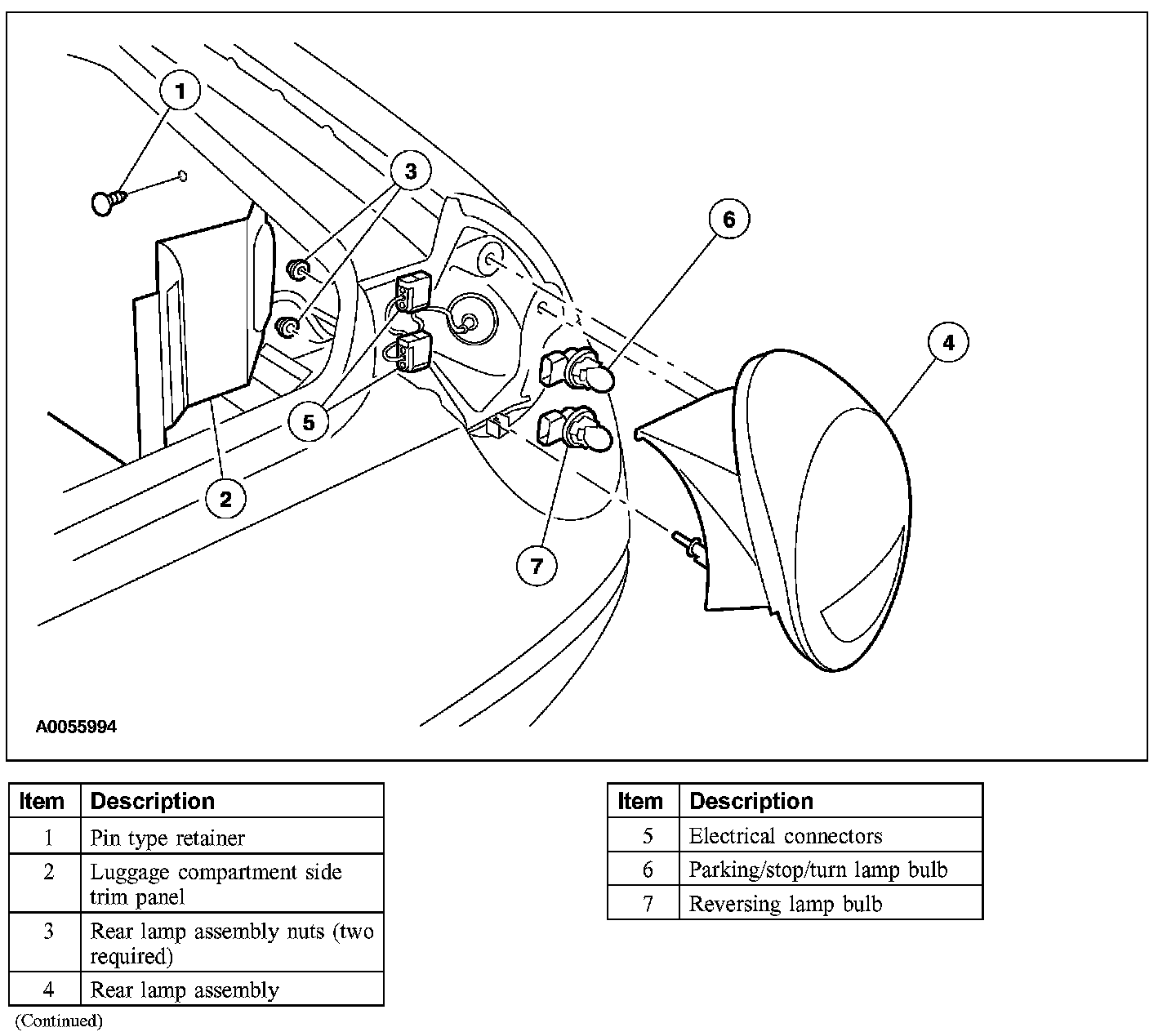

2. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
