Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Trailer Lamps
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>
Trailer Tow Connector C439

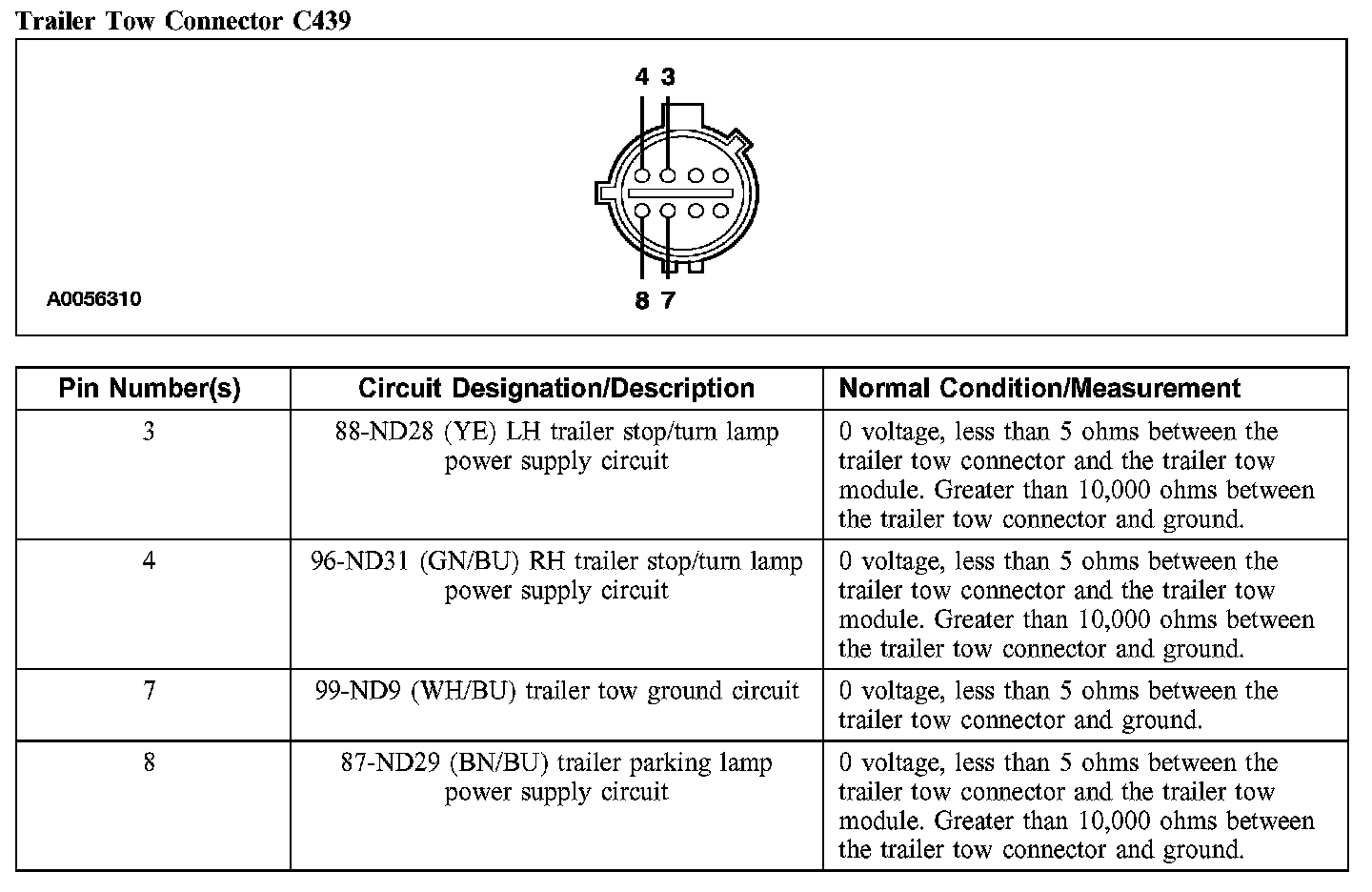

Trailer Tow Connector C439
Trailer Tow Connector C439:
