Drive Belt: Service and Repair

Accessory Drive Belt, Tensioner and Pulley






1. Remove front lower splash shield.





2. To remove individual components, carry out only the listed steps.

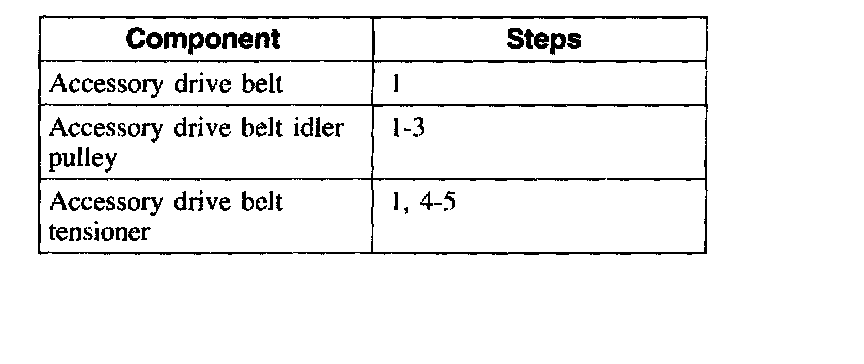

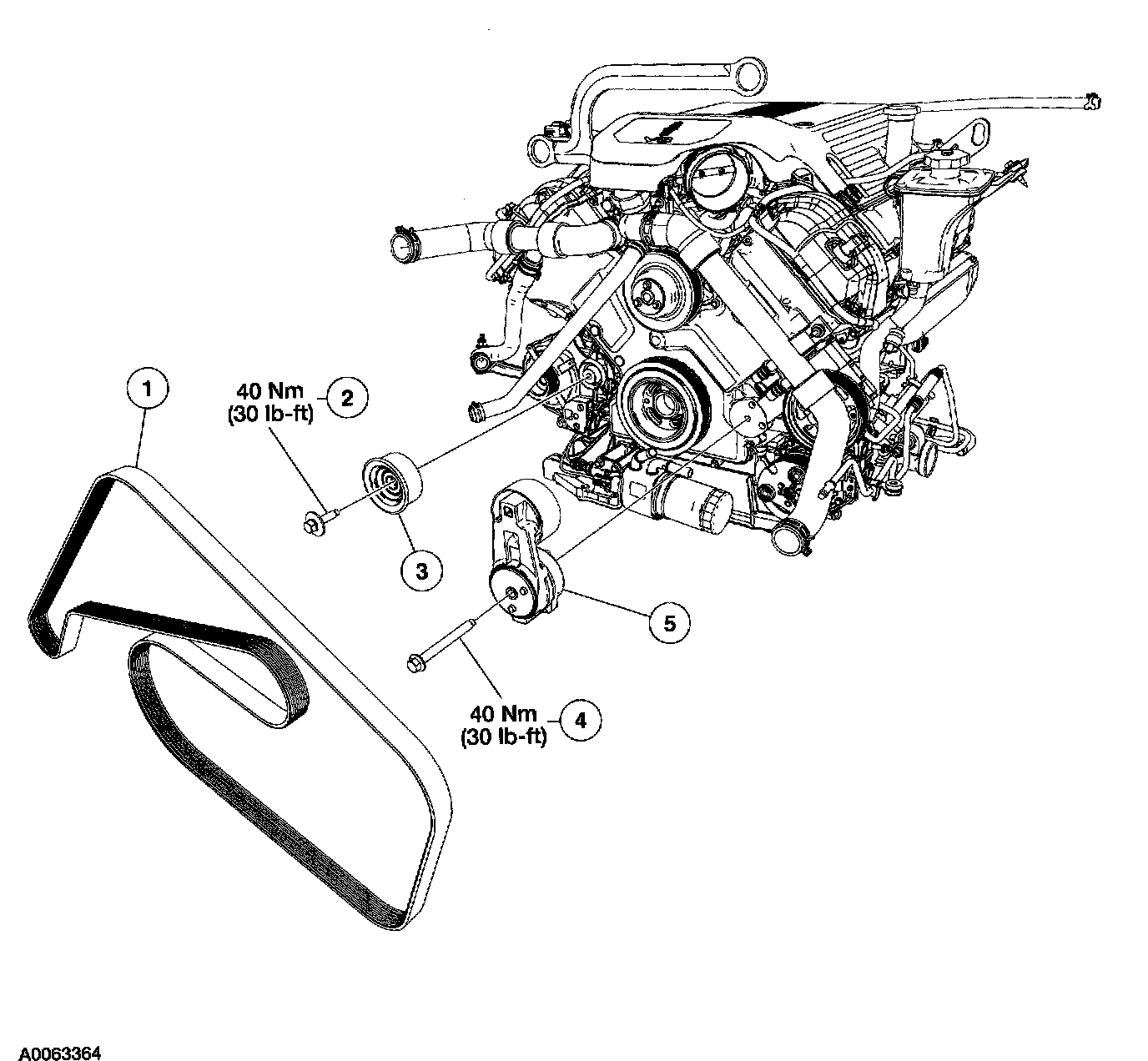

3. Remove the components in the order indicated in the illustration and table.

Part 1 Of 2:

4. To install, reverse the removal procedure.
