Test A

PINPOINT TEST A: DTC P0442 SMALL LEAK IN EVAP SYSTEM, DTC P0456 VERY SMALL LEAK IN EVAP SYSTEM, DTC P0457 MISSING OR LEAKING FUEL FILLER CAP

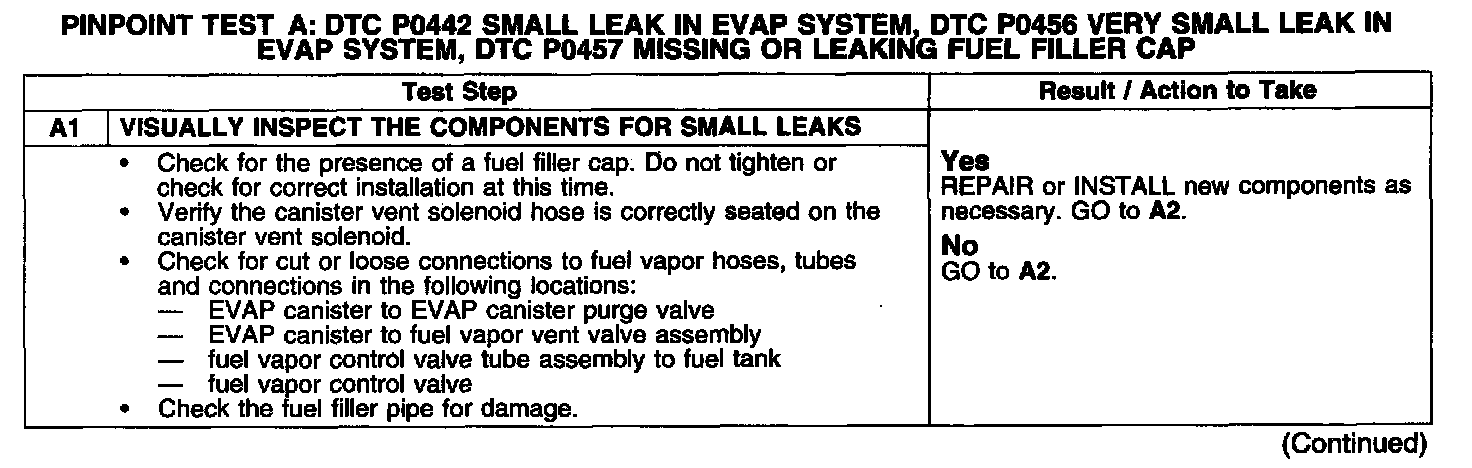

Test A1:

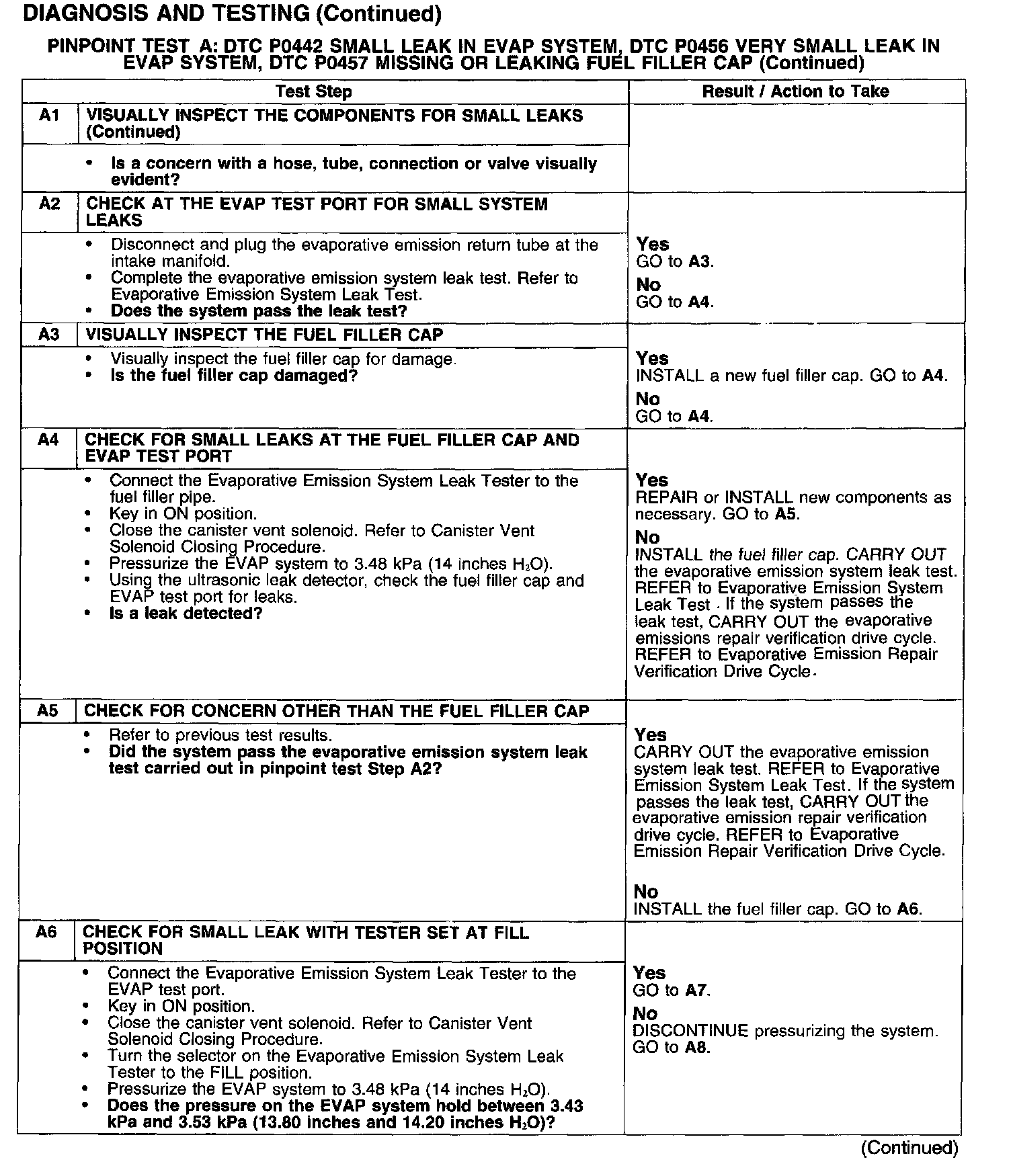

Test A1-A6:

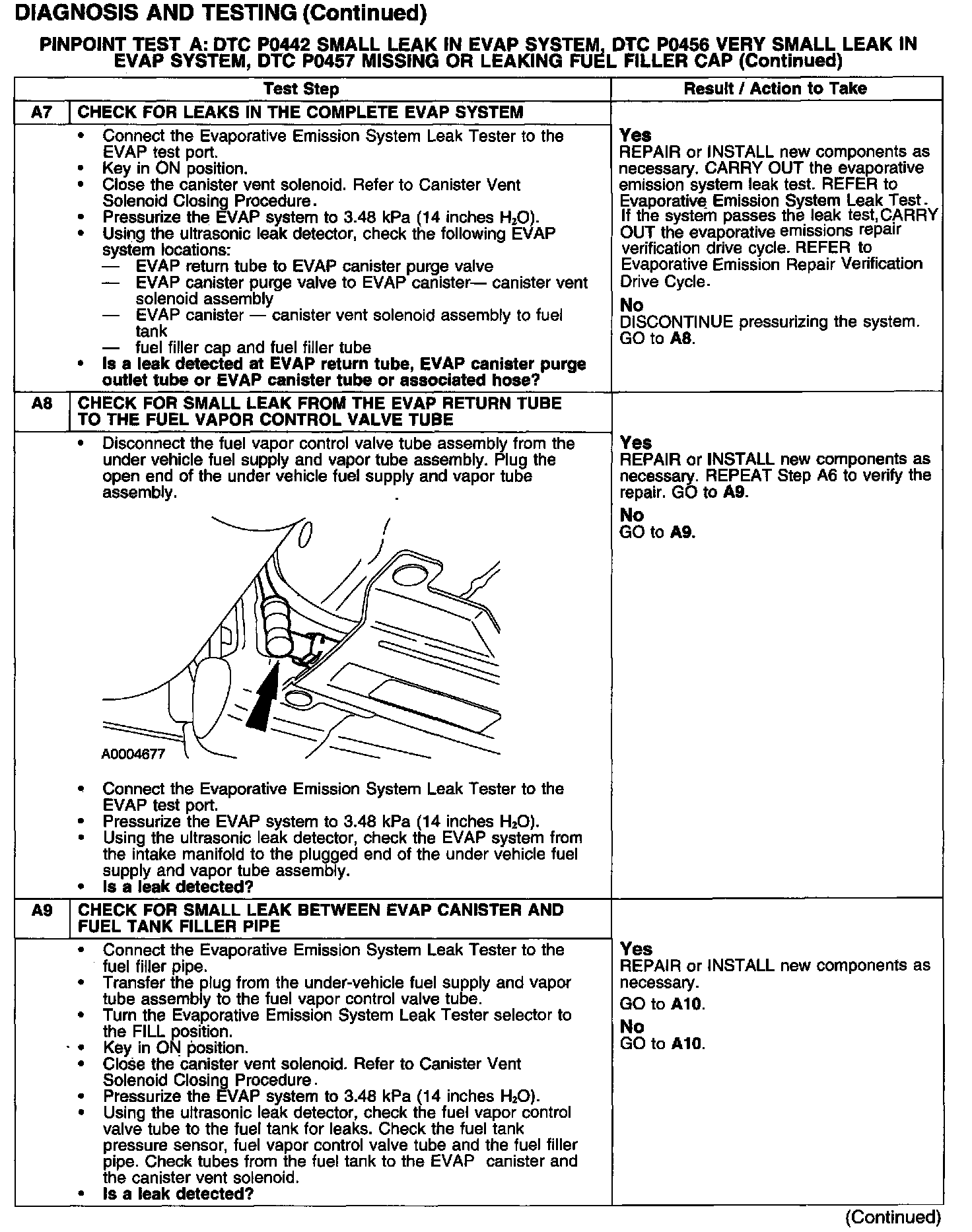

Test A7-A9:

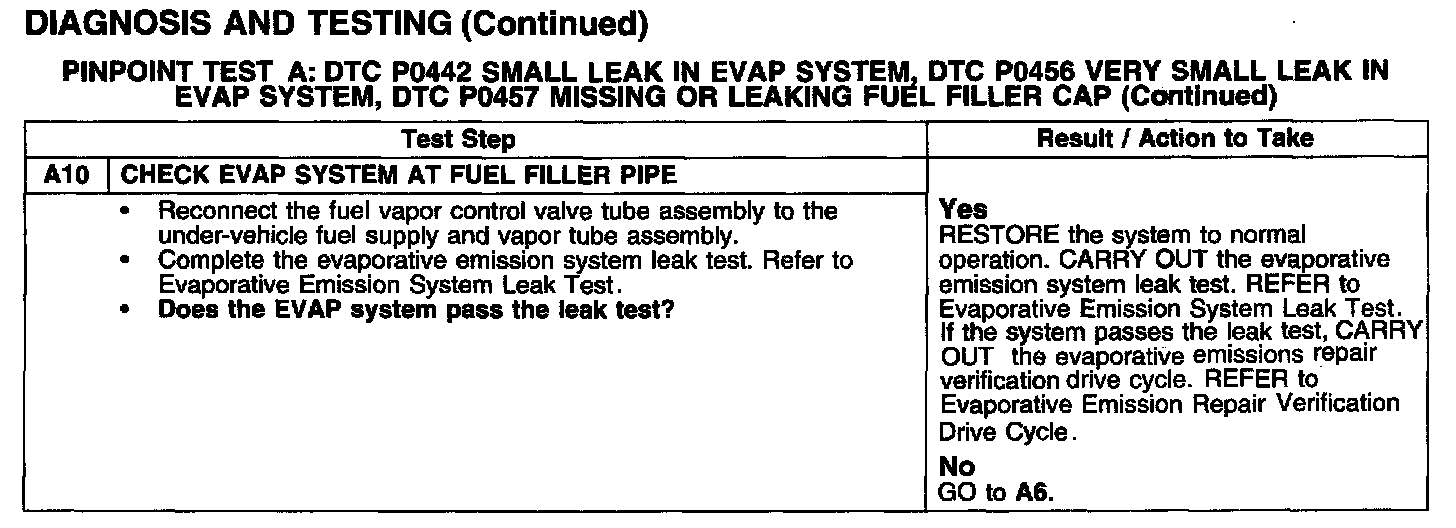

Test A10:
