Driver Air Bag Module

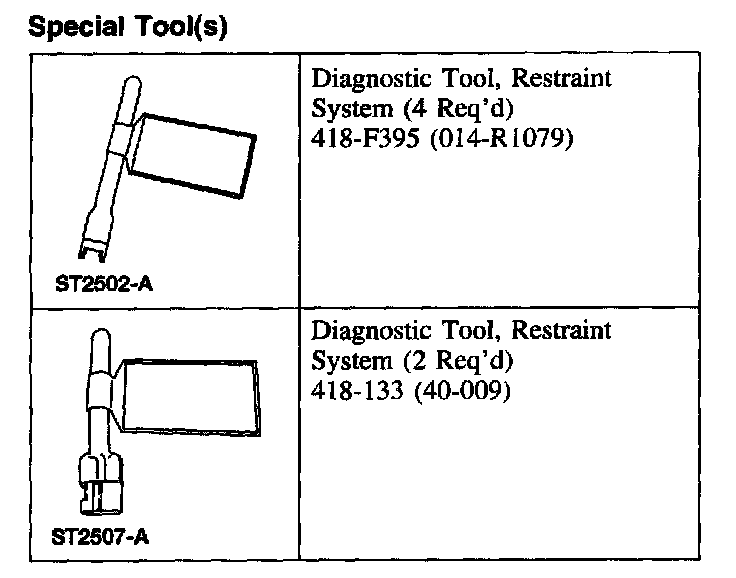

DRIVER AIR BAG MODULESpecial Tool(s):
SPECIAL TOOL(S)
REMOVAL
WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- Carry a live air bag module with the air bag and trim cover pointed away from your body. This will reduce the risk of injury in the event of an accidental deployment.
- Do not set a live air bag module down with the trim cover face down. This will reduce the risk of injury in the event of an accidental deployment.
- After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
- Air bag modules with discolored or damaged trim covers must be replaced, not repainted.
- The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
NOTE:
- After diagnosing or repairing an SRS, the restraint system diagnostic tools must be removed before operating the vehicle over the road.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
1. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
The side impact sensors are attached to the rocker panels, near the seats.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
Disconnect the battery ground cable and wait at least one minute.
2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure. Refer to Air Bag(s) Arming and Disarming.
NOTE: Within the Supplemental Restraint System (SRS) Deactivation and Reactivation procedure the driver air bag module is removed and restraint system diagnostic tools are attached at the appropriate locations.
Deactivate the supplemental restraint system (SRS). Refer to Air Bag(s) Arming and Disarming.
INSTALLATION
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions and notes at the beginning of the removal procedure.
1. NOTE: Make sure the battery negative cable is still disconnected before continuing with the installation portion of this procedure.

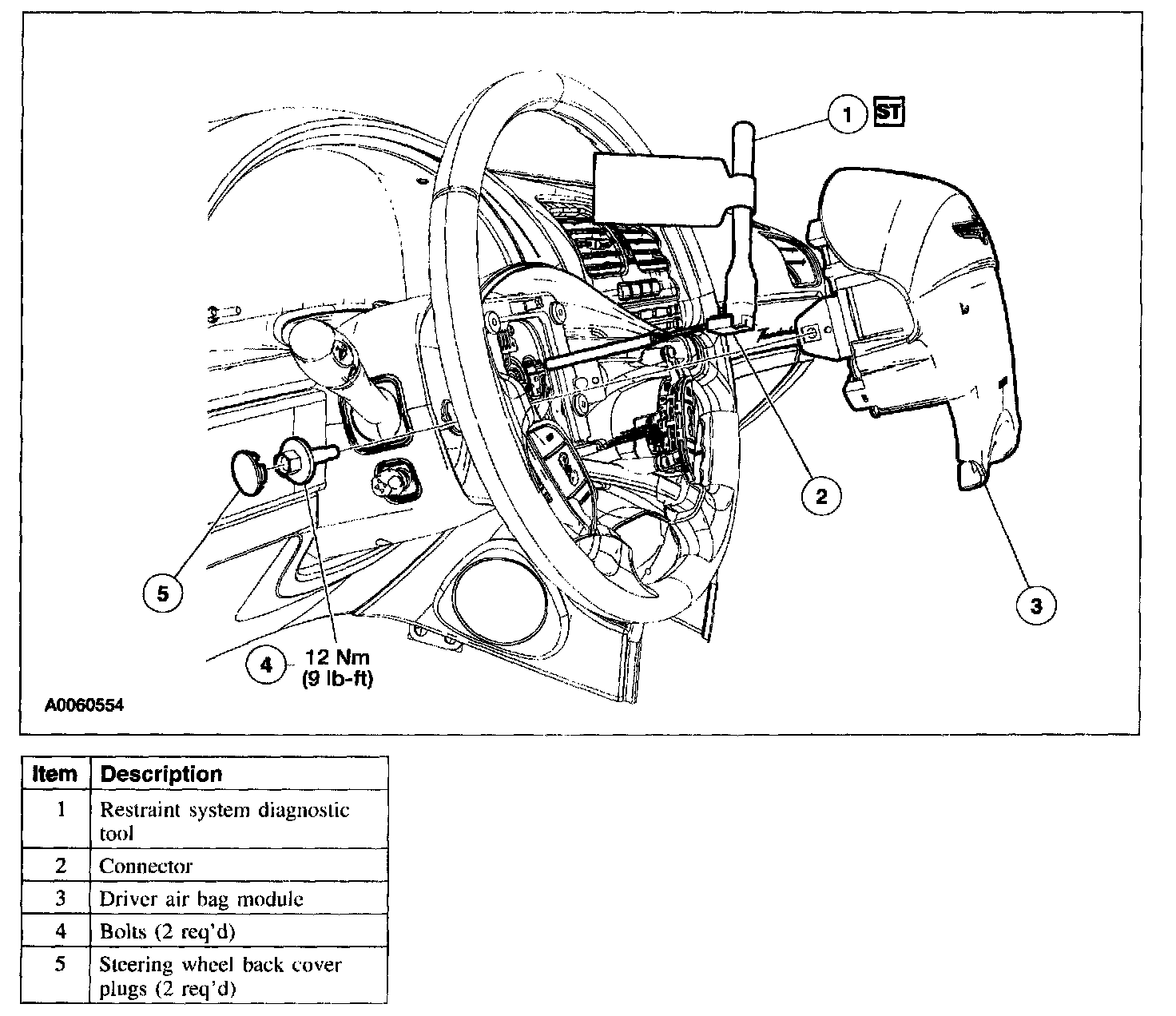

Install the components in the order indicated in the illustration and table.
2. Connect the battery ground cable.
3. With the restraint system diagnostic tool still installed at the remaining deployable devices, prove out the supplemental restraint system (SRS). Prove Out Procedure
4. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
The side impact sensors are attached to the rocker panels, near the seats.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
Disconnect the battery ground cable and wait at least one minute.
5. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure. Refer to Air Bag(s) Arming and Disarming.
Reactivate the supplemental restraint system (SRS). Refer to Air Bag(s) Arming and Disarming.
6. Connect the battery ground cable.
7. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). Prove Out Procedure
