Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR

REMOVAL
1. Disconnect the battery ground cable.

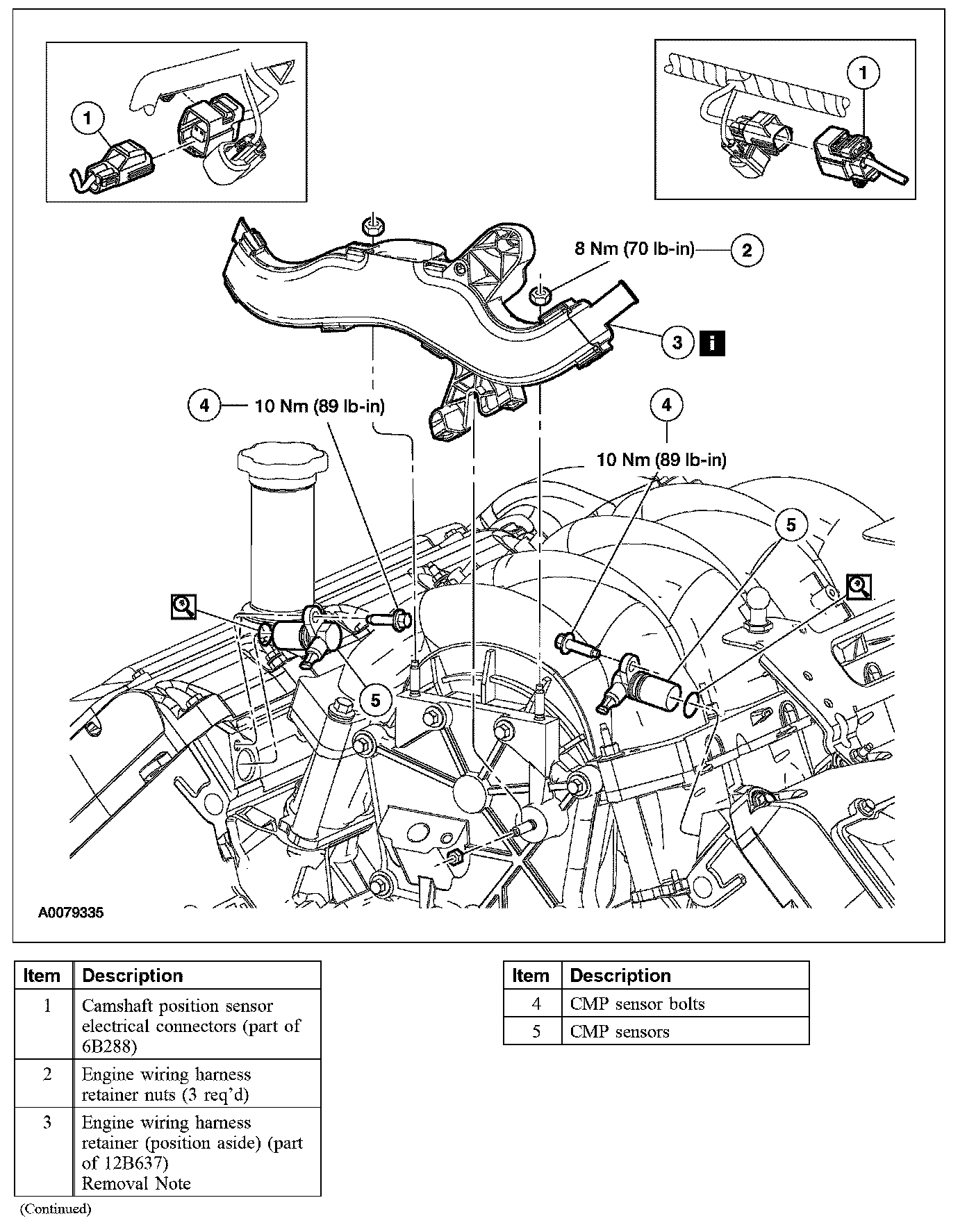

2. Remove the components in the order indicated in the illustration and table.

Item 3: Engine Wiring Harness Retainer Removal Note

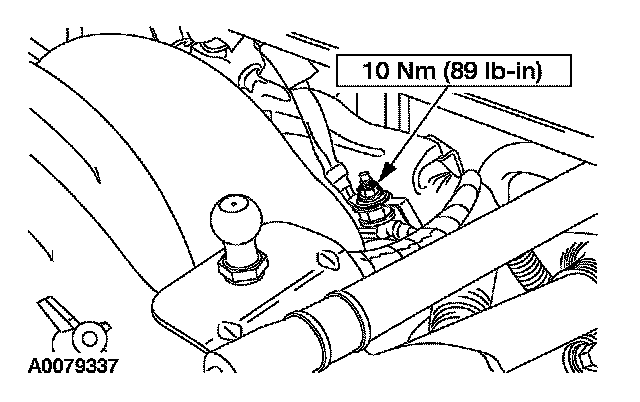

1. Remove the ground strap retainer and position the ground strap aside.

INSTALLATION
1. To install, reverse the removal procedure.
