Diesel Data
: Automotive Repair
Home
>>
Ford
>>
2004
>>
Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

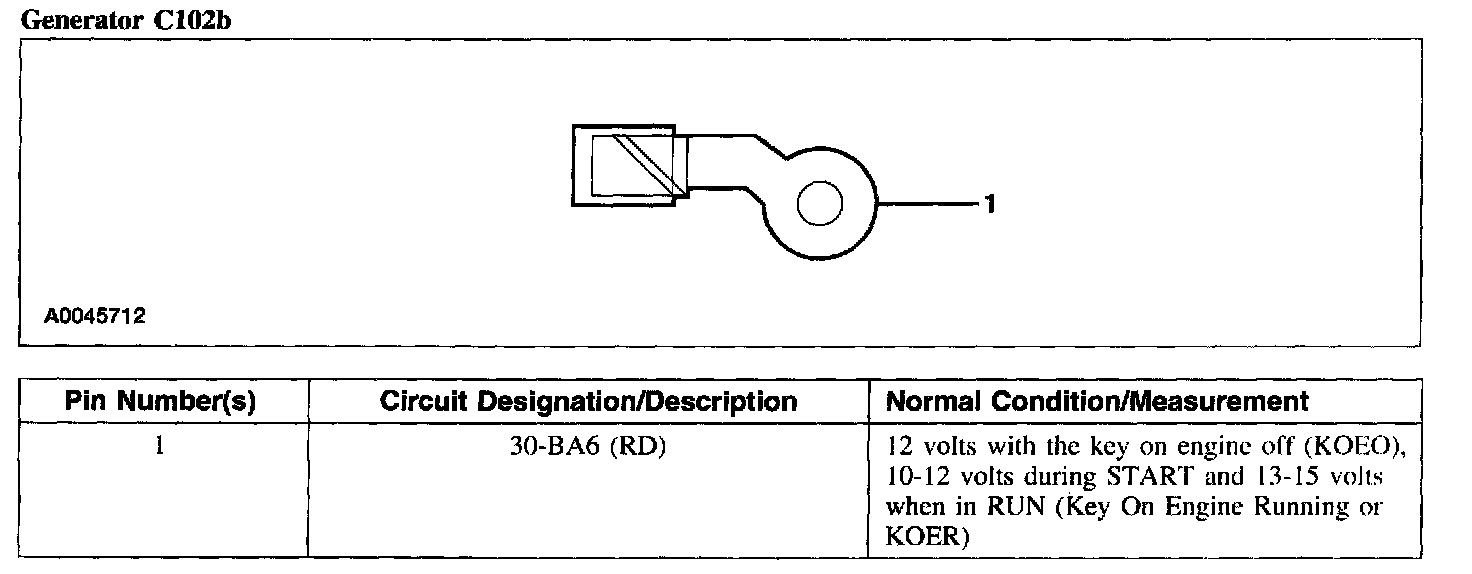

Generator C102b
Generator C102b
Generator C1O2b:
