Powertrain Control Module C175c

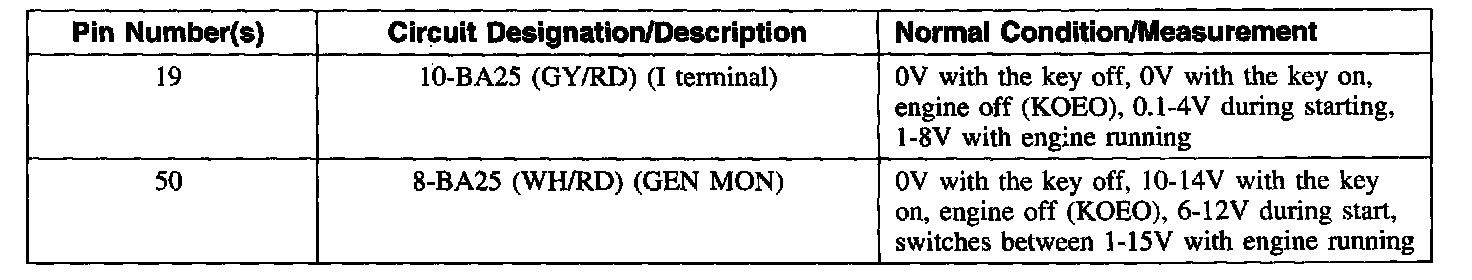

Powertrain Control Module C175c, Part 1:

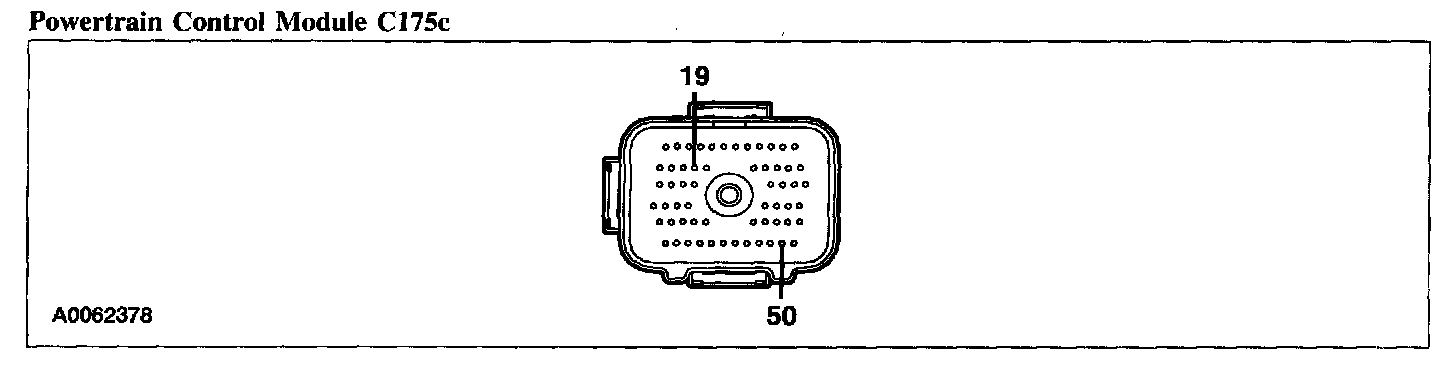

Powertrain Control Module C175c, Part 2:
