Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> TR Sensor

TR Sensor

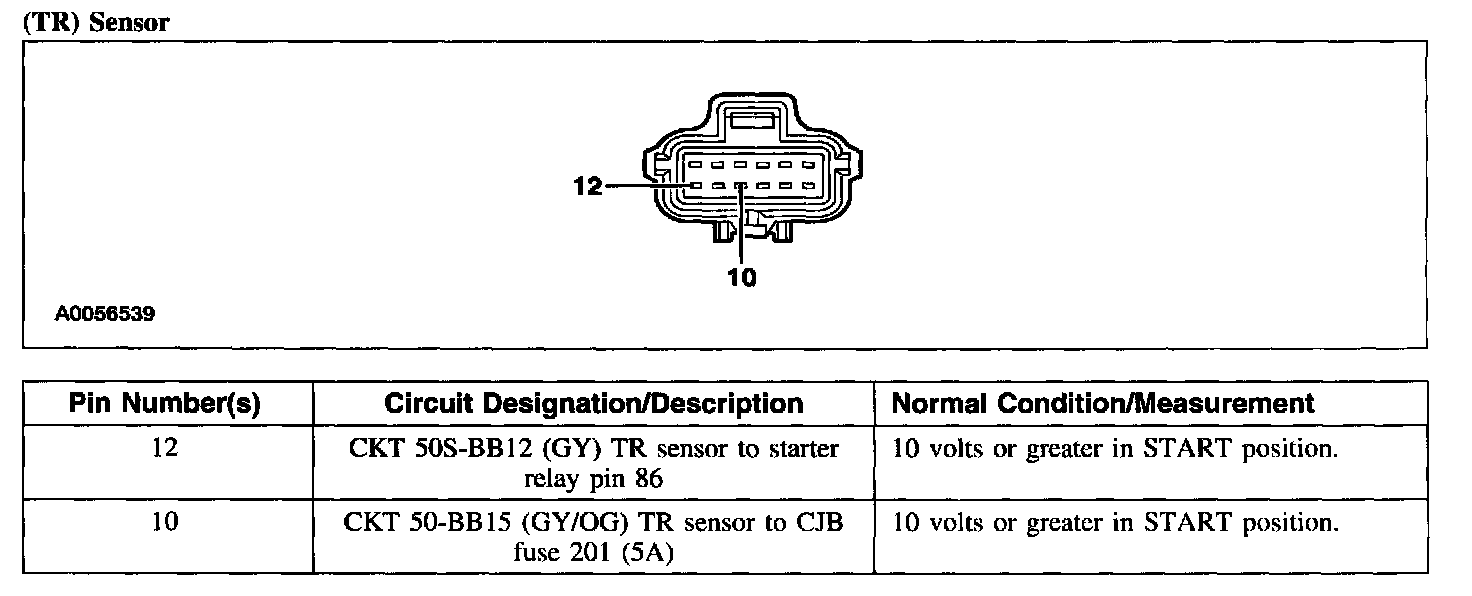

(TR) Sensor:
