Power Steering Fluid Cooler: Service and Repair
Power Steering Fluid CoolerSpecial Tools And Equipment:

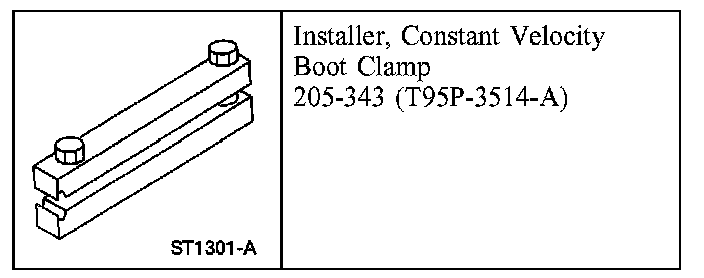

Special Tool(s)
1. Remove the air conditioning condenser.

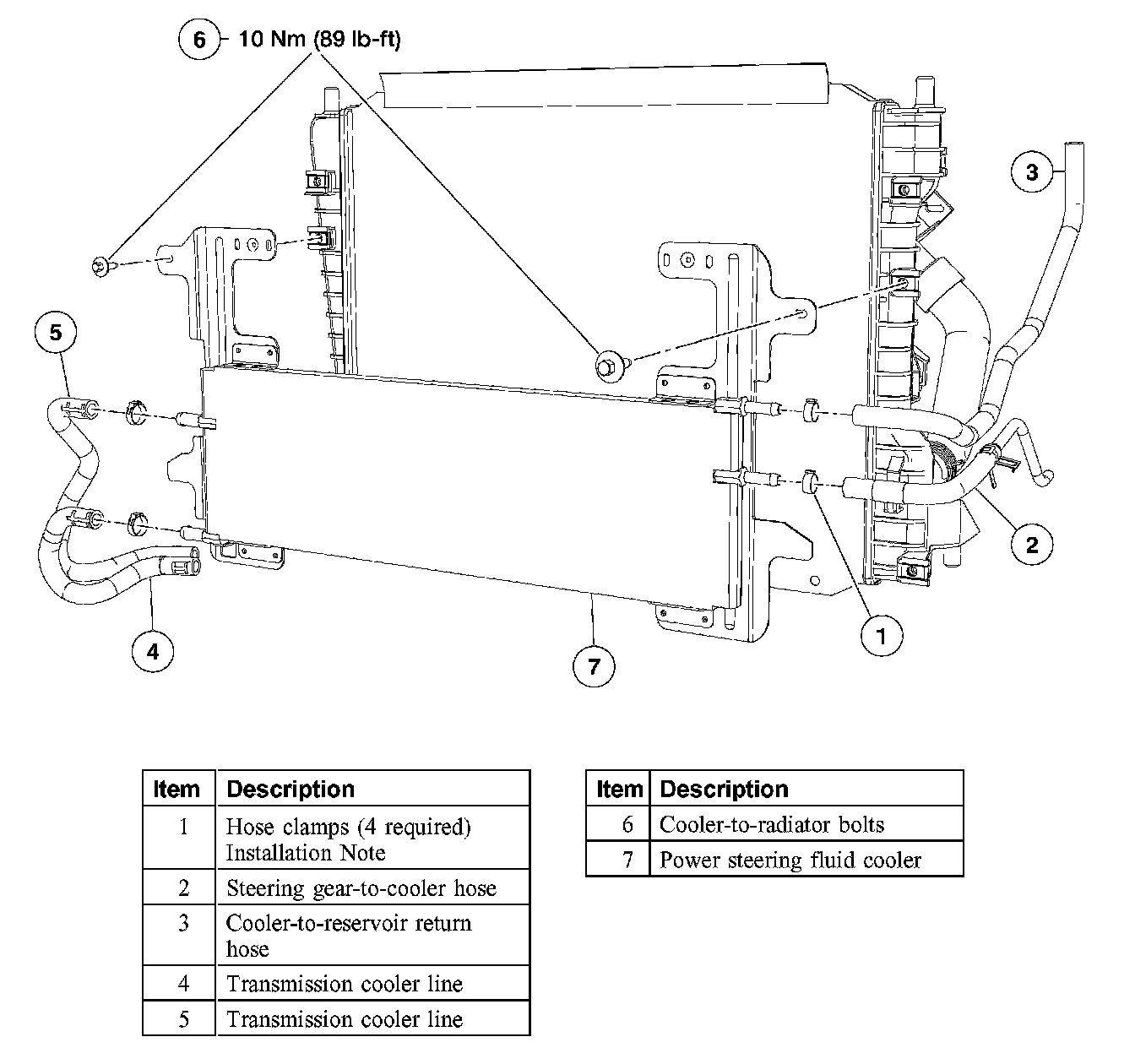

2. Remove the parts in the order indicated in the illustration and table.
3. To install, reverse the removal procedure.
4. Fill and leak test the system.

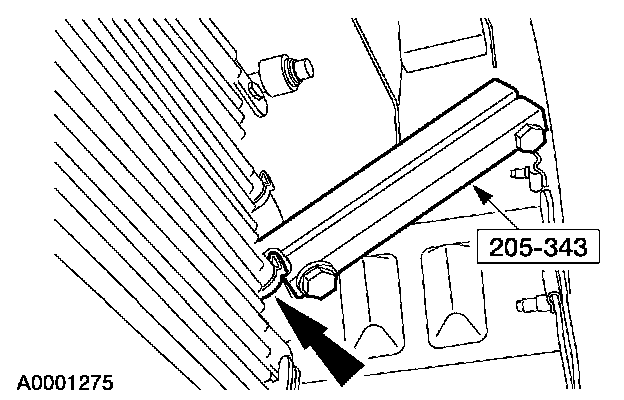

Item 1: Hose Clamps Installation Note
1. Using the special tool, tighten the clamps.
