Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Tilt/Telescope Motor C227

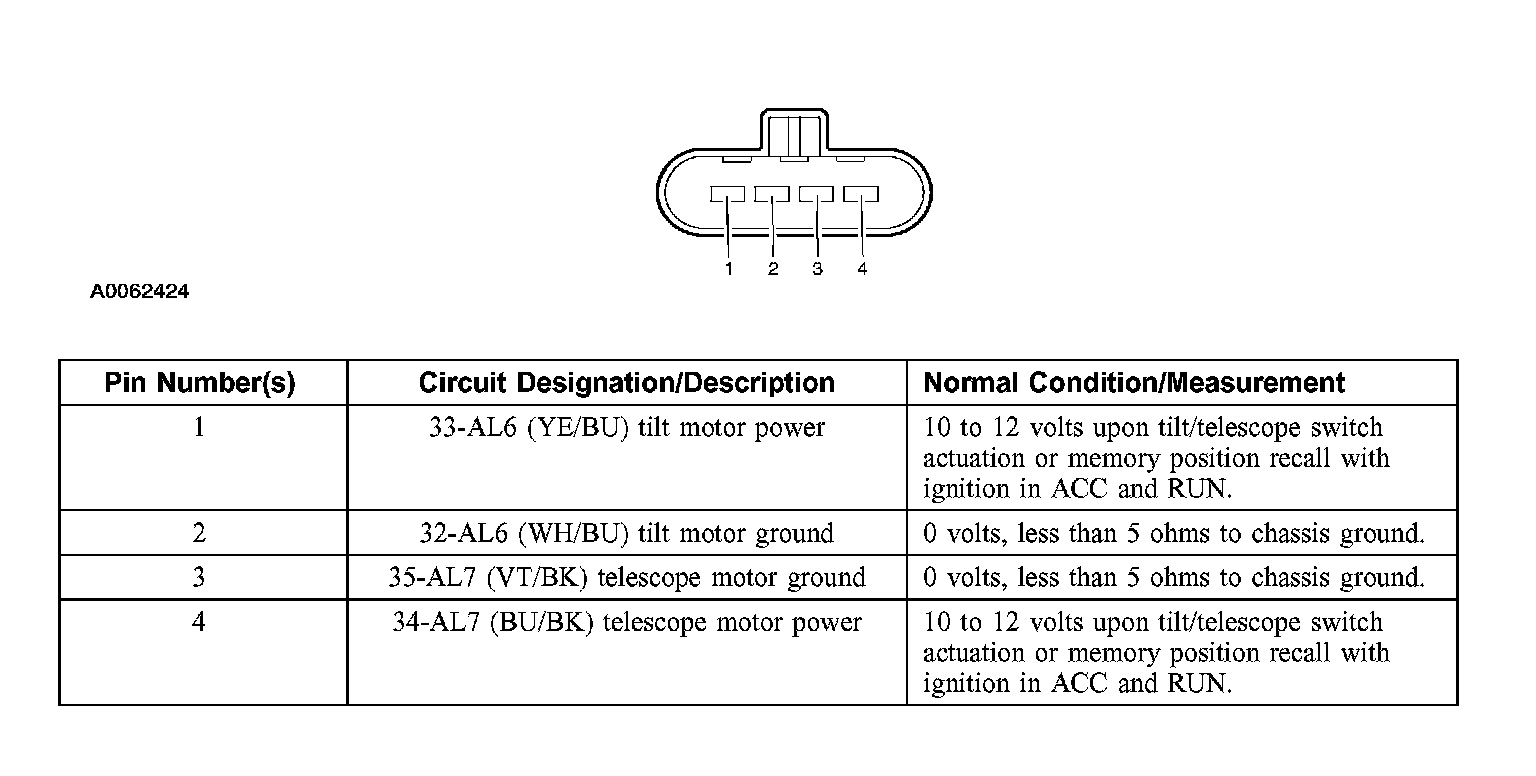

Tilt/Telescope Motor C227
