Rear

Stabilizer Bar and Link-Rear

CAUTION: Use the hex holding feature to prevent the ball studs from turning when removing the ball stud nuts.

NOTE: Only carry out Step 1 if servicing the stabilizer bar.

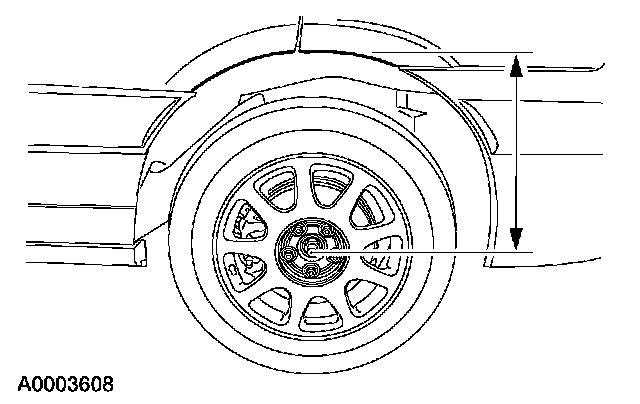

1. For reference during the installation of the upper arm-to-frame fasteners, measure the distance between the center of the wheel hub and the lip of the fender with the weight of the vehicle resting on the wheel and tire assemblies.
2. Remove both rear tires and wheels.

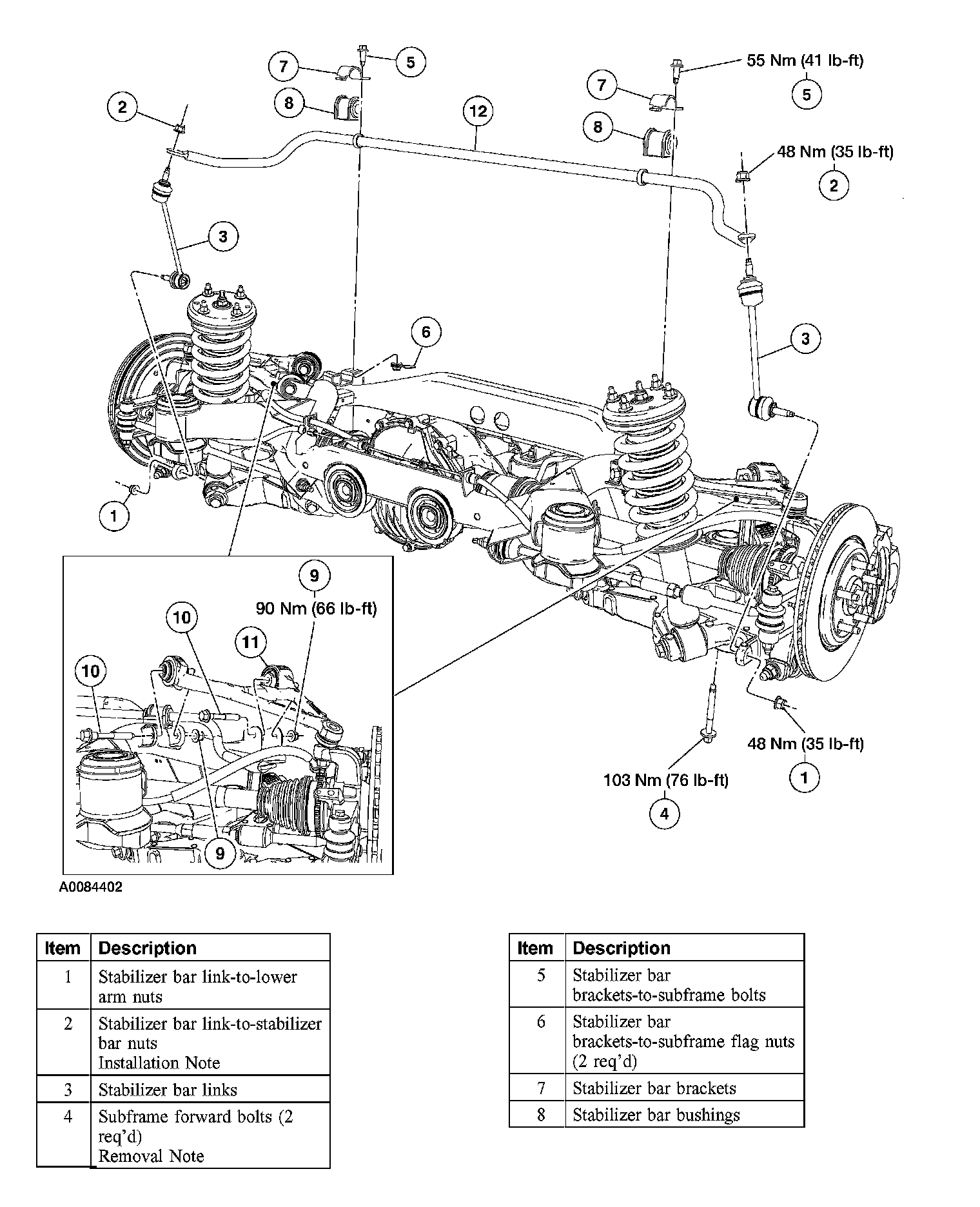

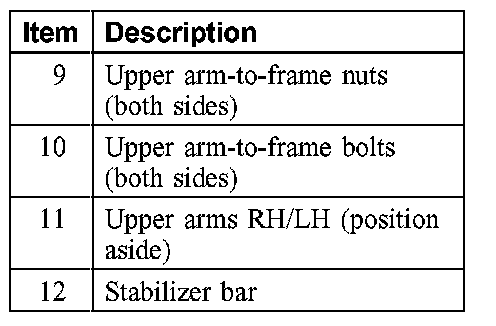

3. Remove the parts in the order indicated in the illustration and table.

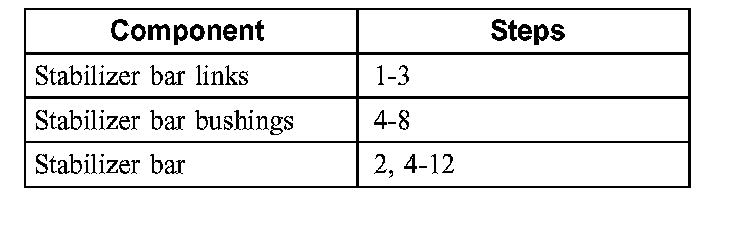

4. To remove individual parts, only carry out the listed steps.








5. To install, reverse the removal procedure.

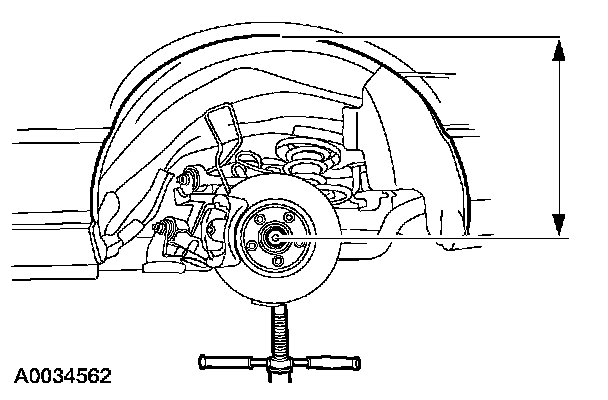

6. Before tightening the upper arm-to-frame fasteners, position a jack under the lower arm and raise the vehicle until the distance between the center of the hub and the lip of fender is equal to the measurement taken during the removal procedure.

Item 4: Subframe Forward Bolts Removal Note
1. Using suitable jack stands, support the subframe.
2. Remove the subframe forward bolts.
^ Lower the front of the subframe approximately 37 mm (1.48 inch).

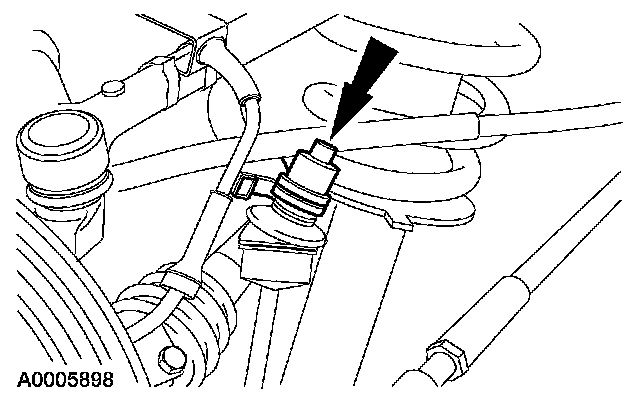

Item 2: Stabilizer Bar Link-to-Stabilizer Bar Nuts Installation Note





1. Install a new protective cap on the stabilizer bar link.
