Rear

Shock Absorber and Spring Assembly-Rear

1. With the vehicle in NEUTRAL, position on a hoist.

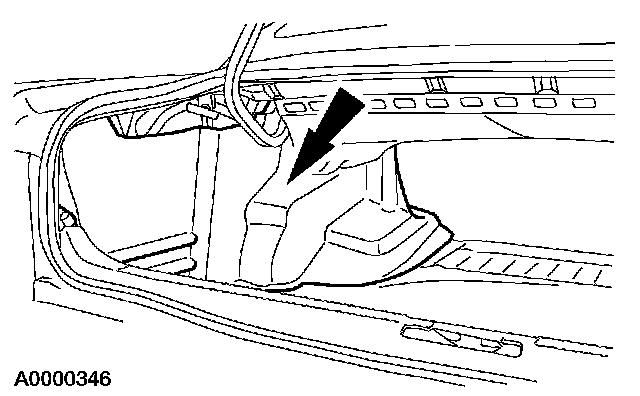

2. Position the luggage compartment trim panel aside.

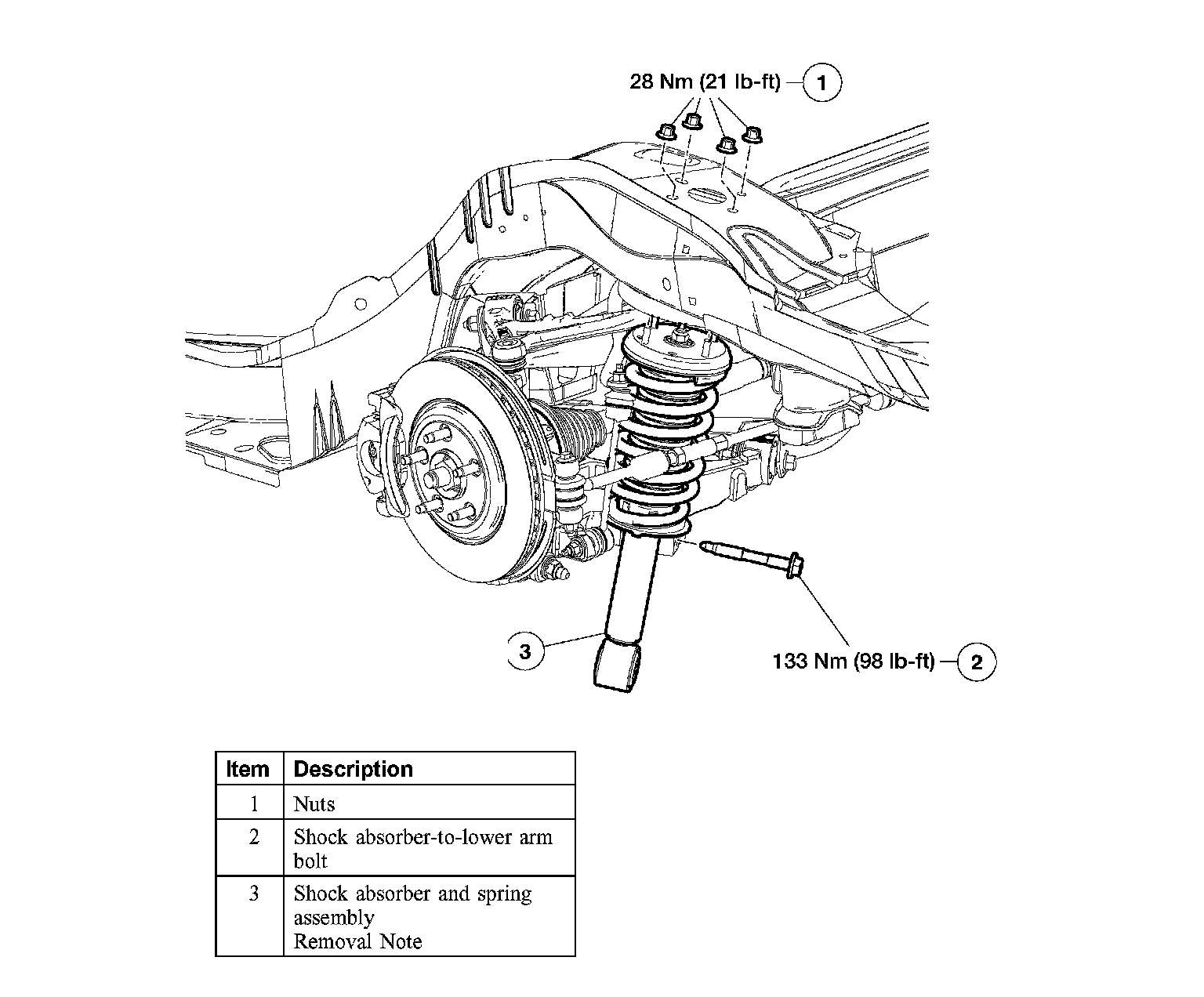

3. Remove the components in the order indicated in the illustration and table.





4. To install, reverse the removal procedure.

Item 3: Shock Absorber and Spring Assembly Removal Note
