Shifter A/T: Service and Repair

Transmission Selector Lever

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Place the range selector lever in the D5 position.
3. Remove the center console.

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

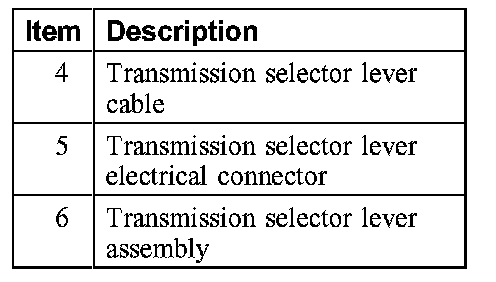

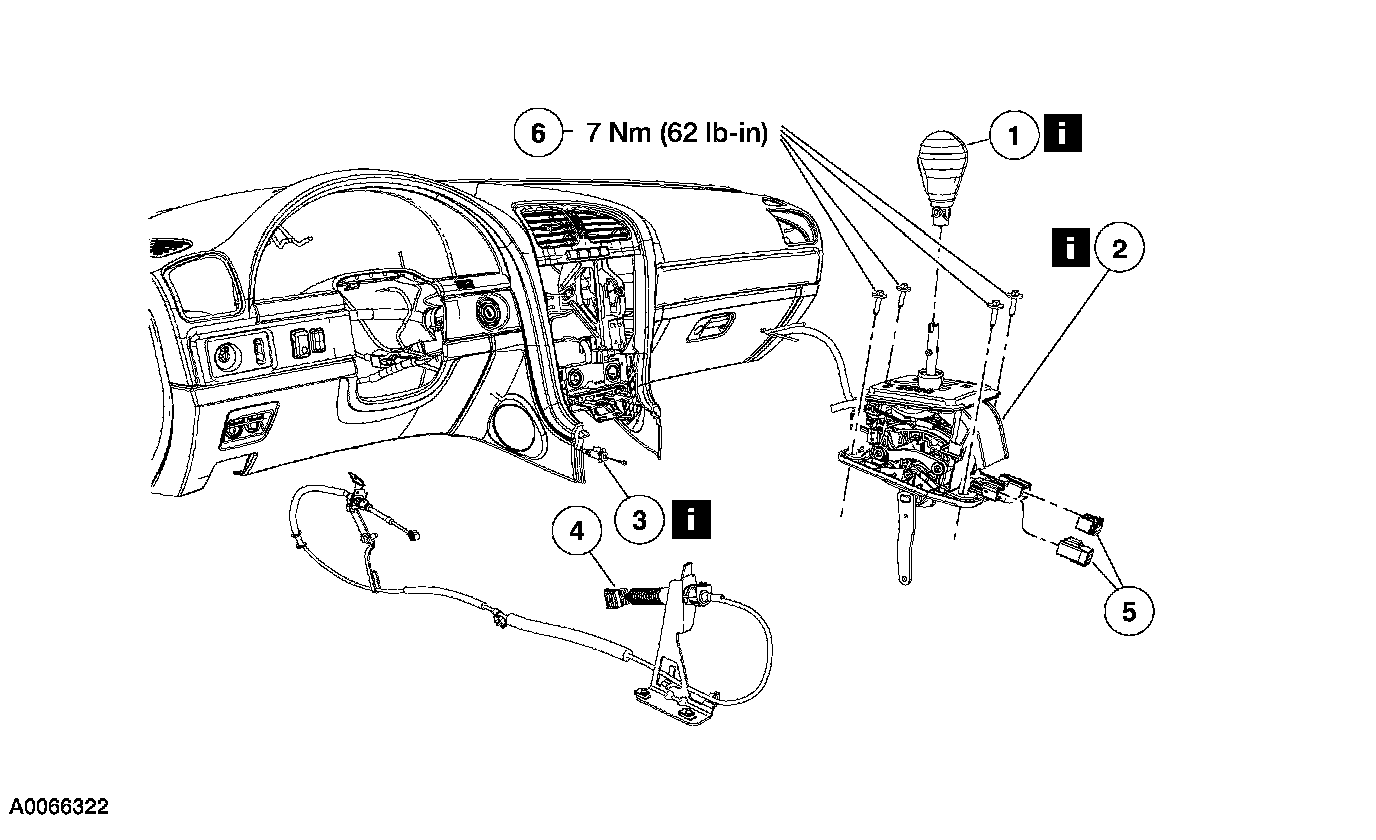

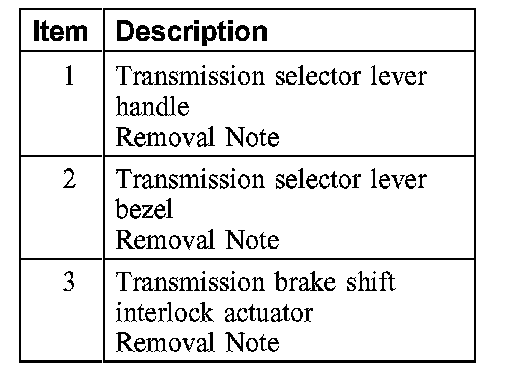

4. Remove the parts in the order indicated in the illustration and table.
5. To install, reverse the removal procedure.

Item 1: Transmission Selector Lever Handle Removal Note

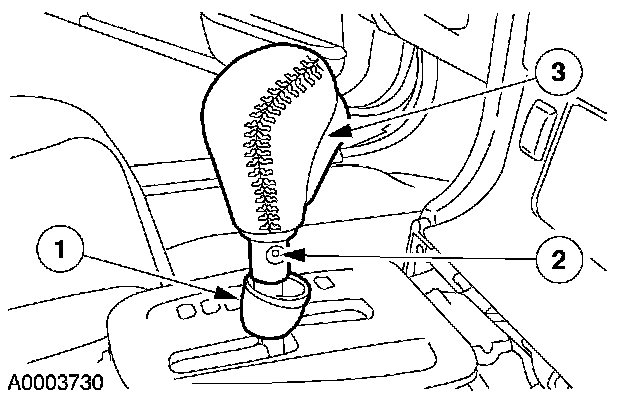

1. Remove the handle and cover.
1 Slide the cover down.
2 Remove the two screws.
3 Remove the handle and the cover.

Item 2: Transmission Selector Lever Bezel Removal Note

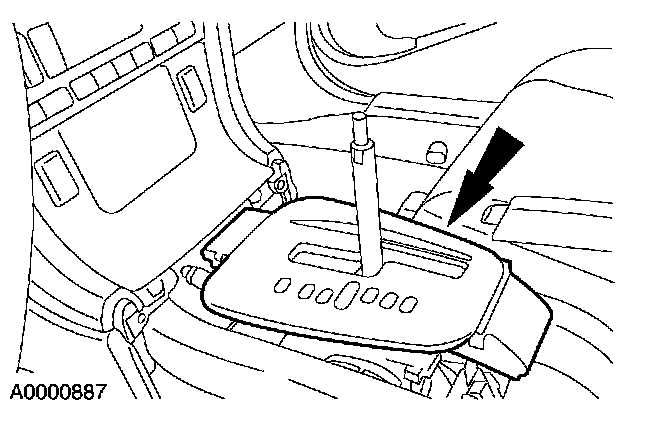

1. Remove the shifter bezel out of the way.

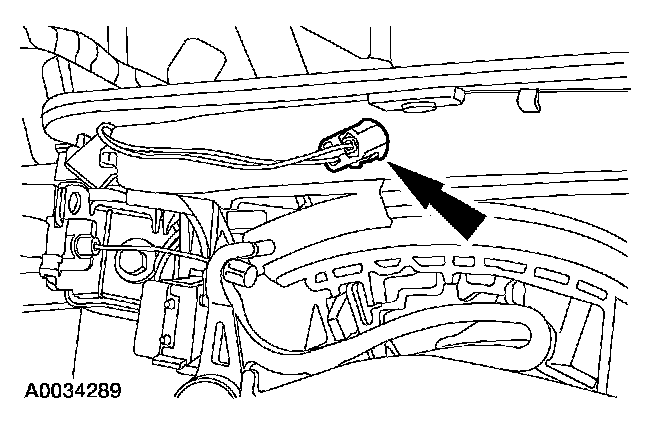

2. Remove the PRNDL indicator bulb.

Item 3: Transmission Brake Shift Interlock Actuator Removal Note

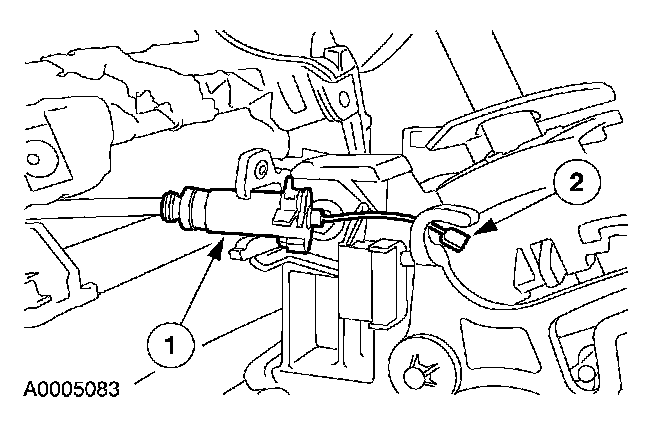

1. Disconnect the cable from the lever.
1 Remove the shift interlock cable from the bracket.
2 Disconnect the cable from the lever.
