Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Specifications >> Mechanical Specifications >> Torque Specifications

Torque Specifications

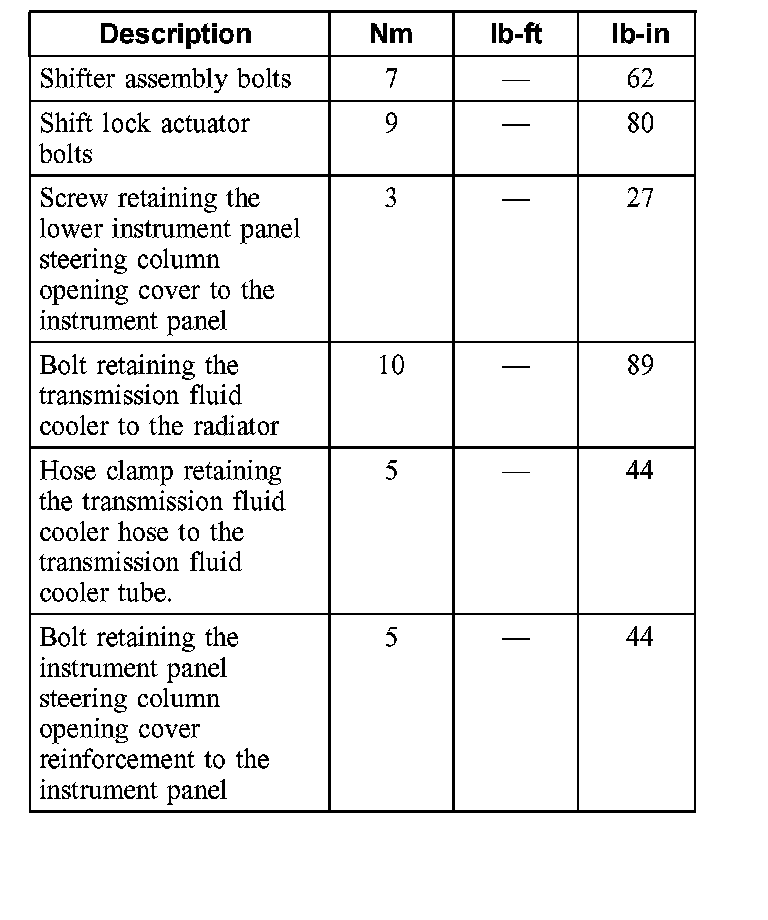

Part 1 Of 4:

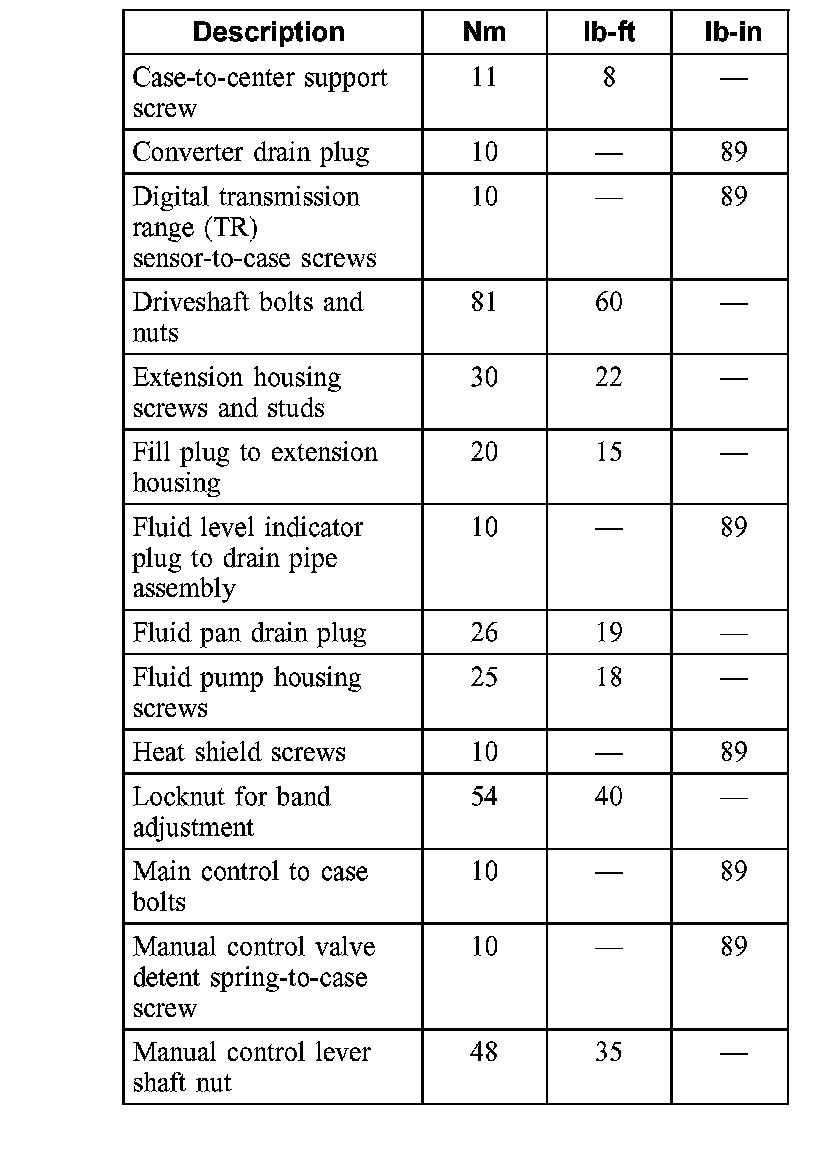

Part 2 Of 4:

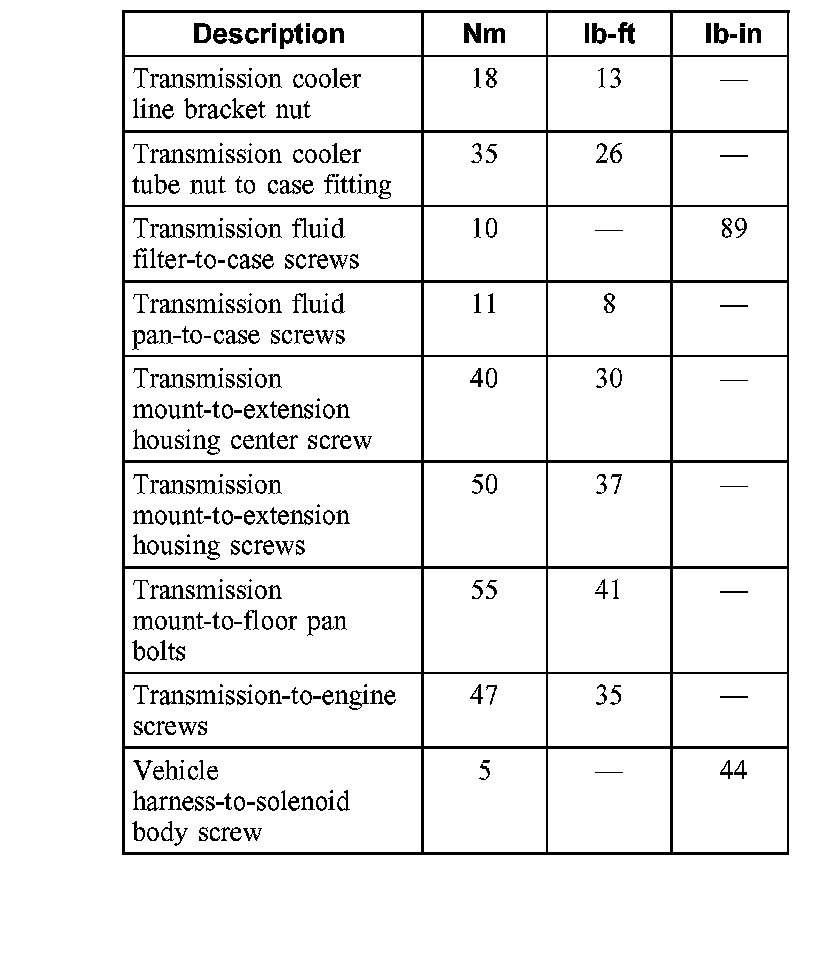

Part 3 Of 4:



Part 4 Of 4:
