Diagnostic Trouble Code Chart

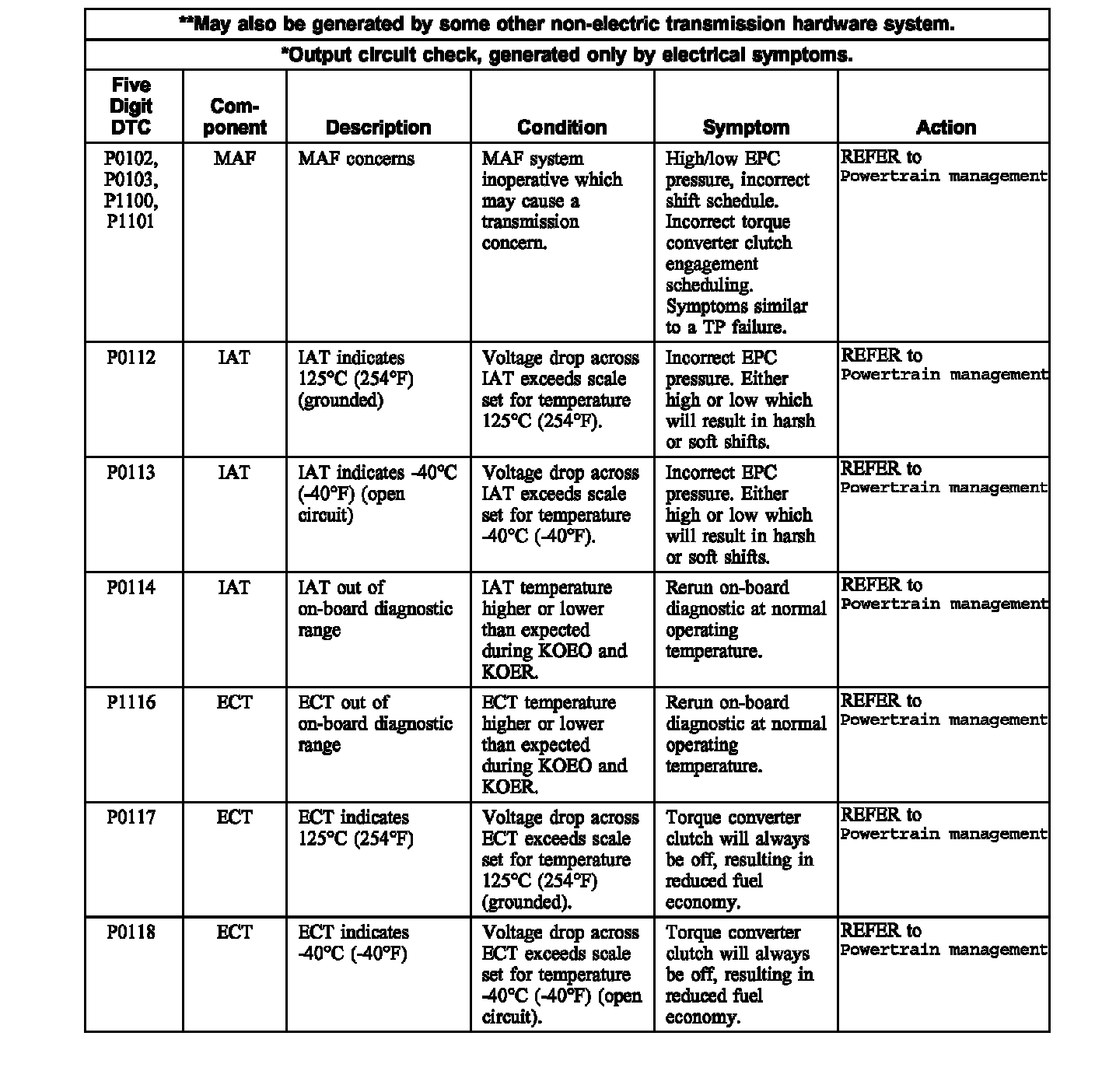

Part 1 Of 13:

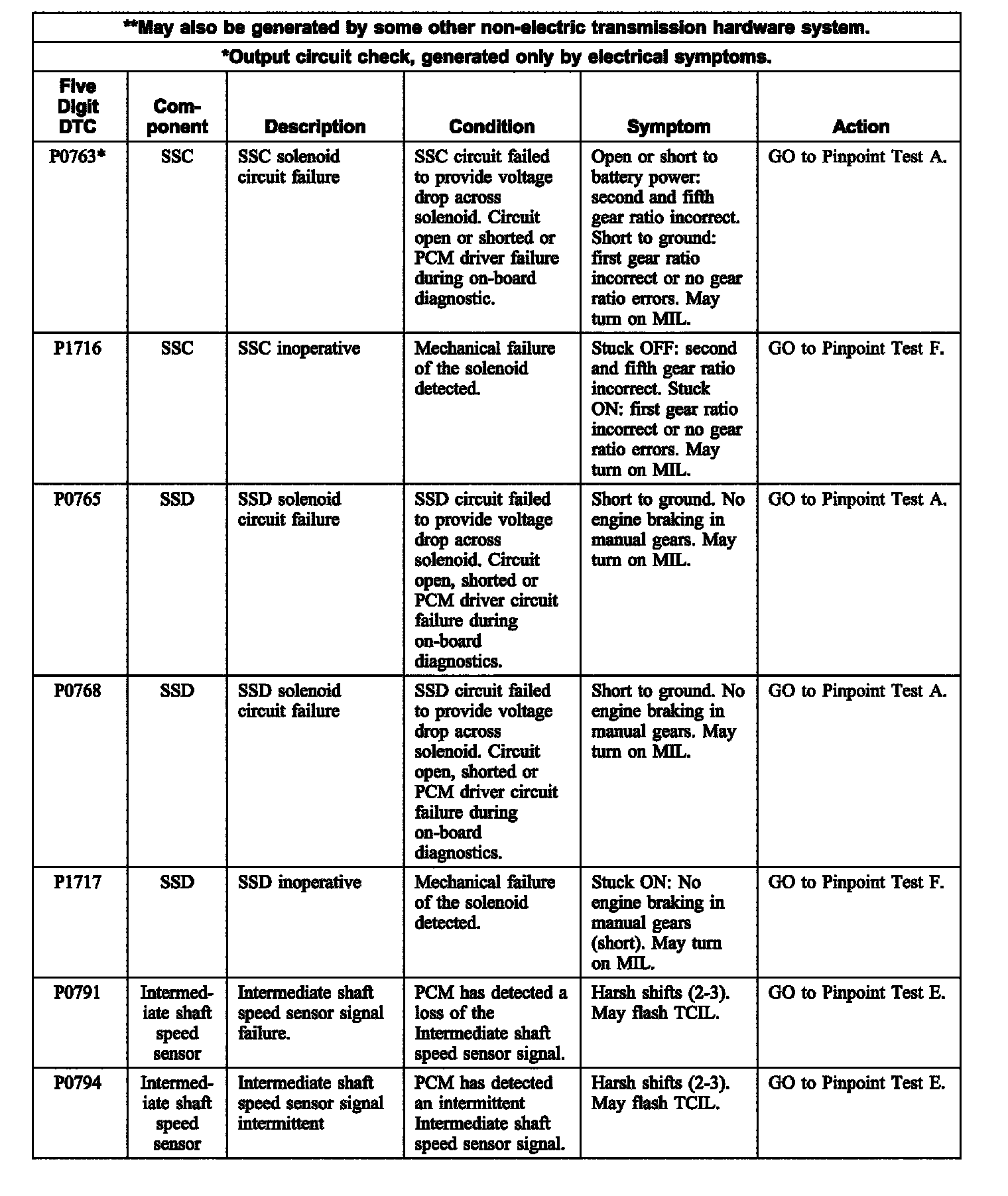

Part 2 Of 13:

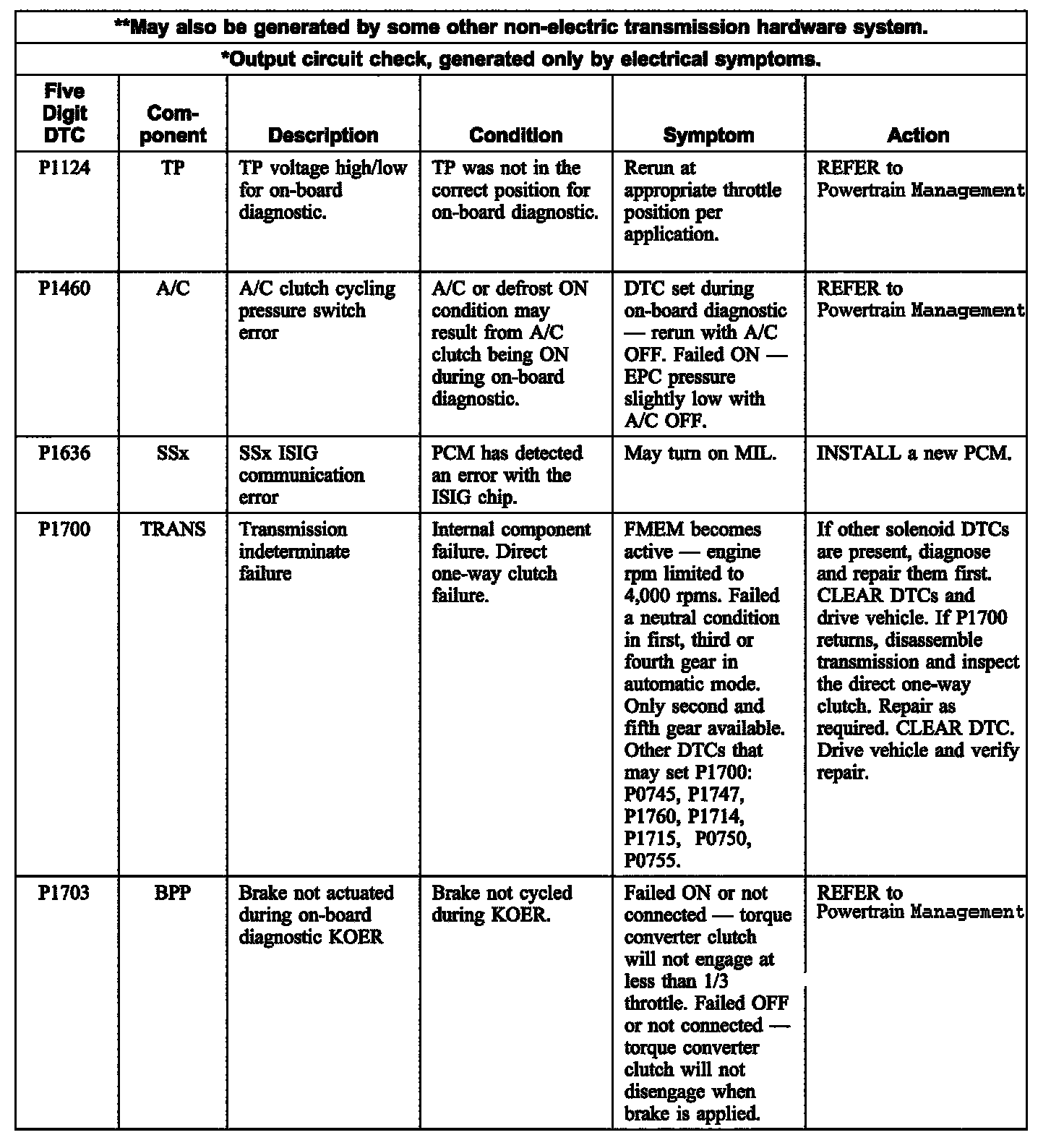

Part 3 Of 13:

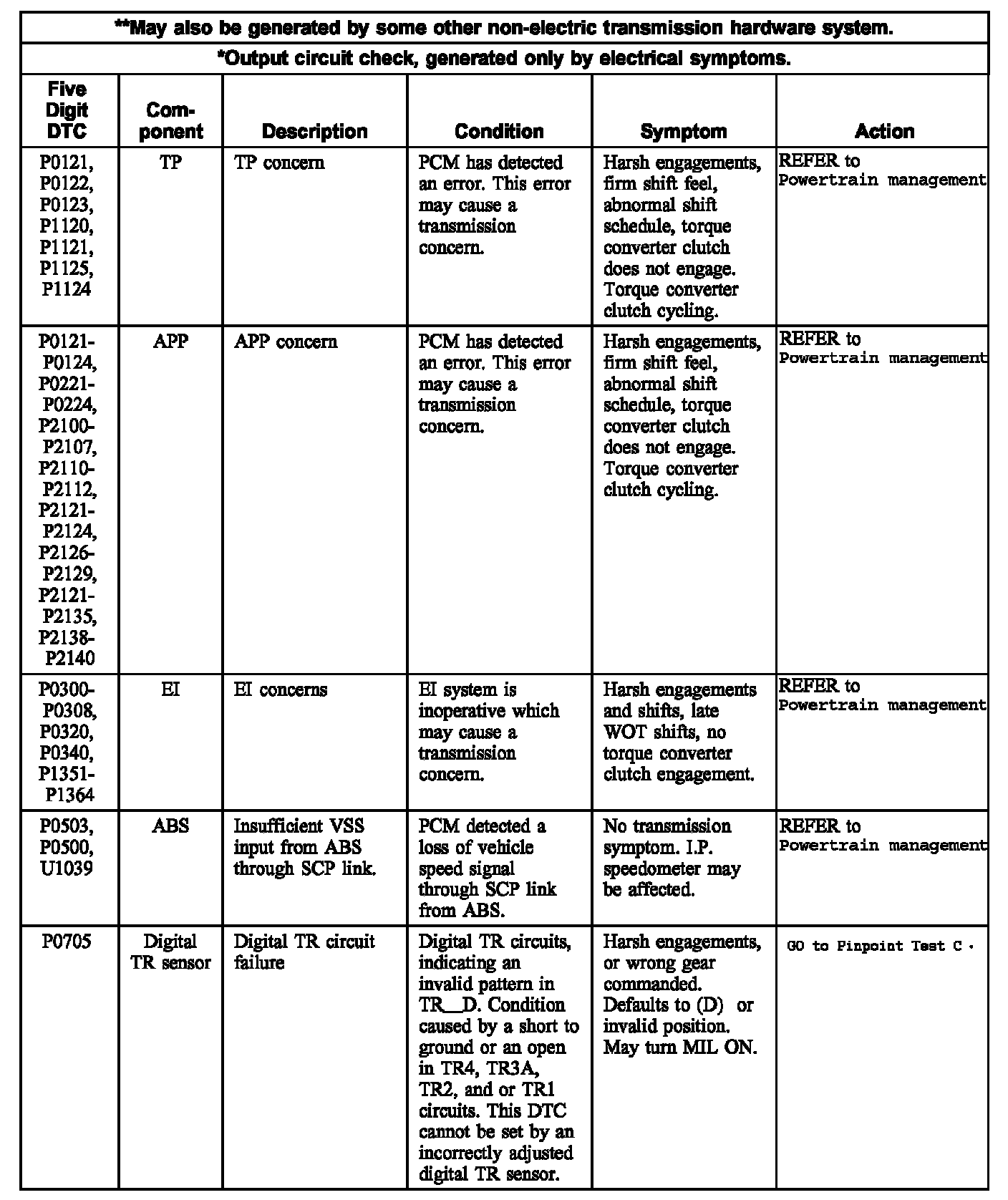

Part 4 Of 13:

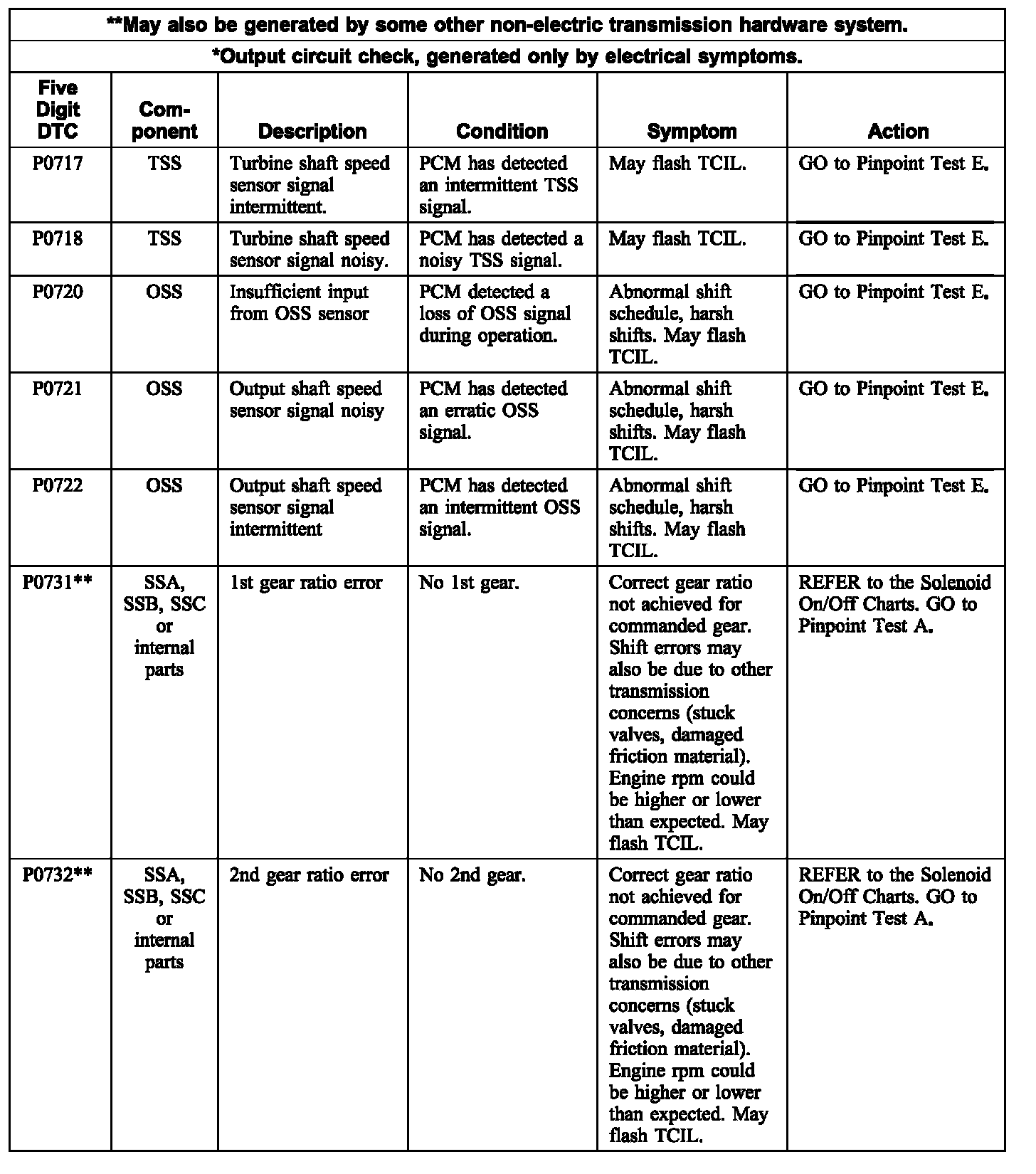

Part 5 Of 13:

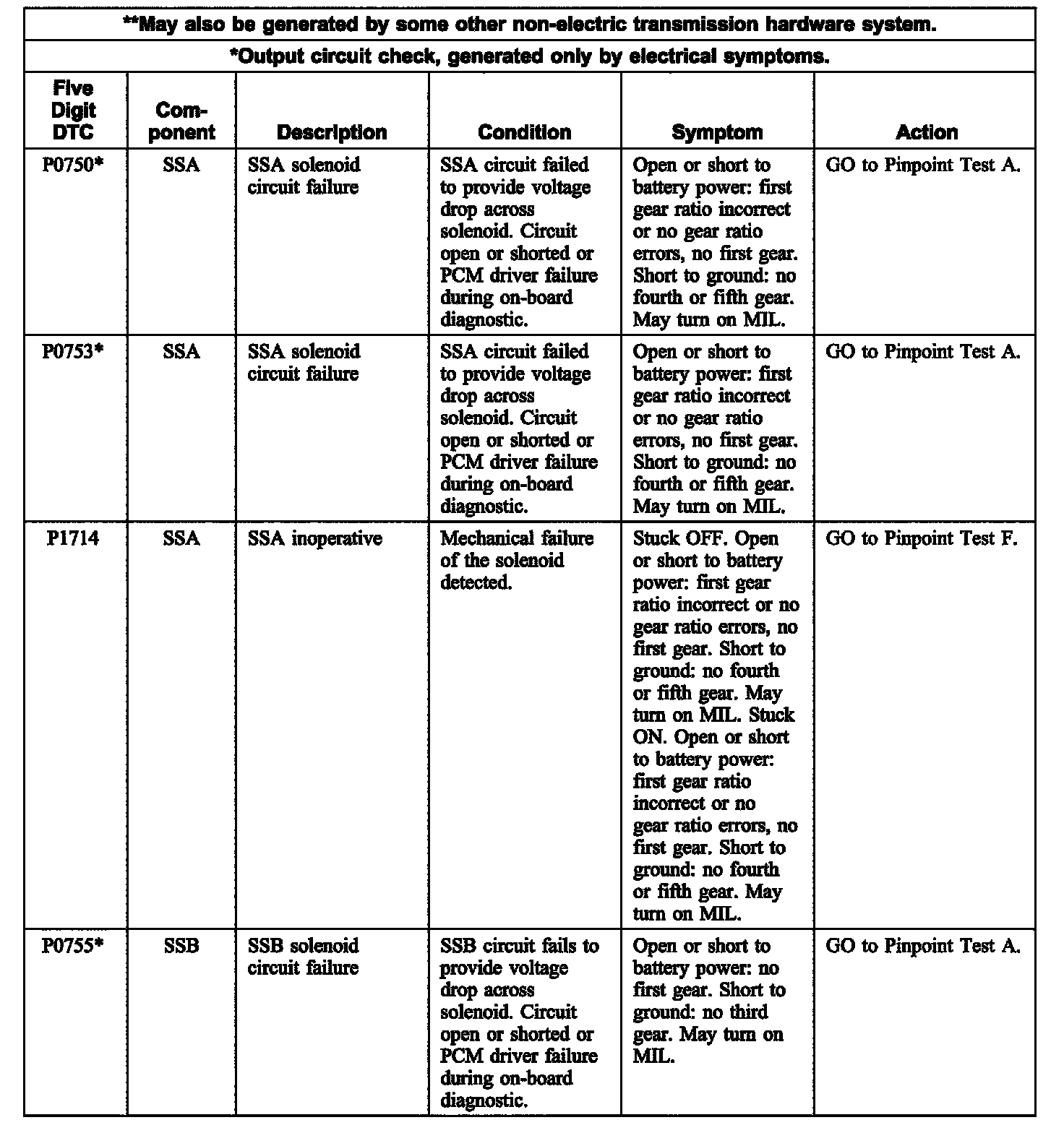

Part 6 Of 13:

Part 7 Of 13:

Part 8 Of 13:

Part 9 Of 13:

Part 10 Of 13:

Part 11 Of 13:

Part 12 of 13:

Part 13 Of 13:
