Transmission Fluid Cooler

Transmission Fluid Cooler

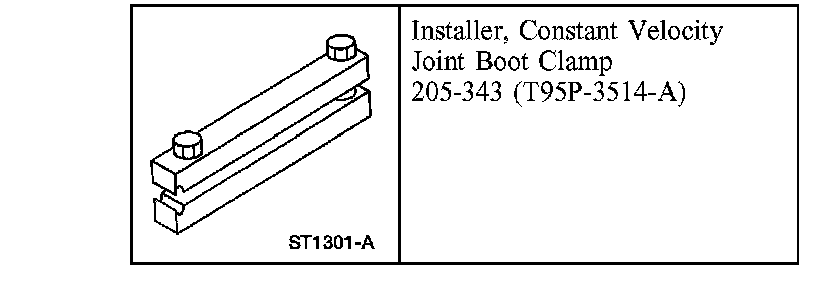

Special Tool(s)

Part 1 Of 2:

Part 2 Of 2:

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the A C condenser.

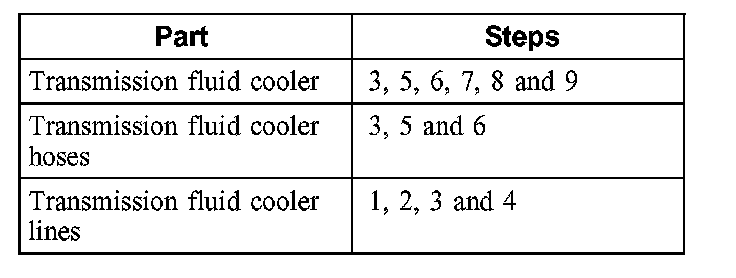

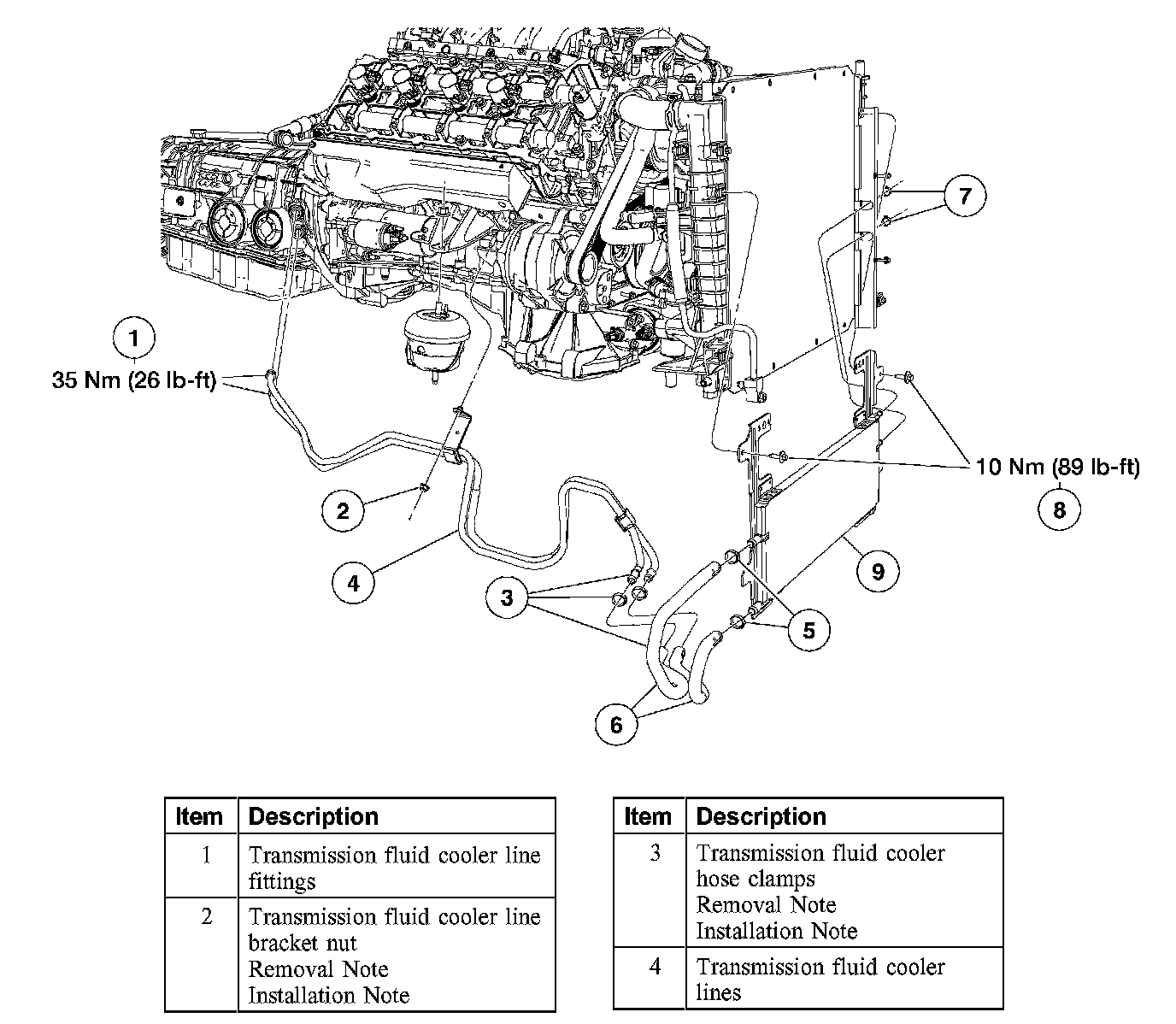

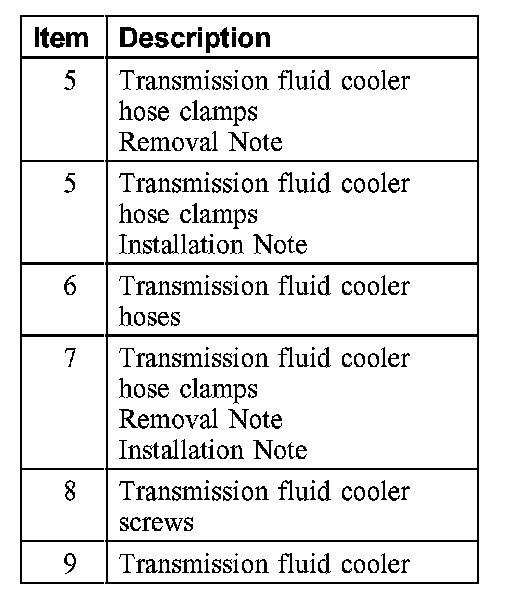

3. Remove the parts in the order indicated in the illustration and table.





To remove individual parts, only carry out the listed steps:

4. To install, reverse the removal procedure.
5. Carry out the transmission fluid level check.

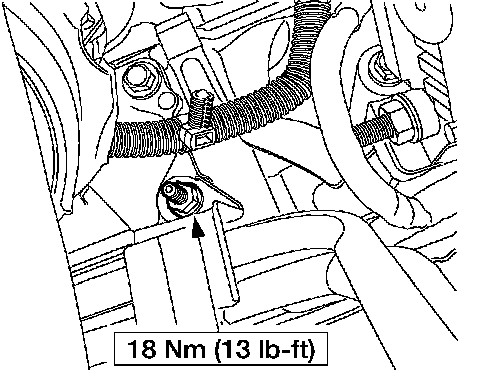

Item 2: Transmission Fluid Cooler Line Bracket Nut Removal Note

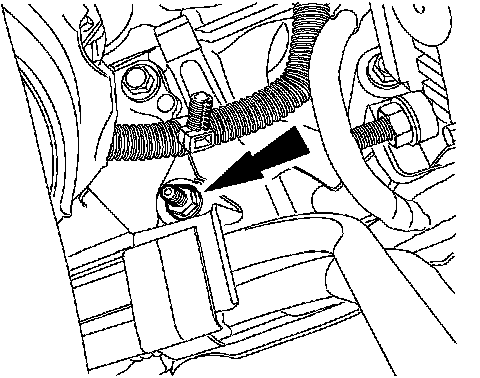

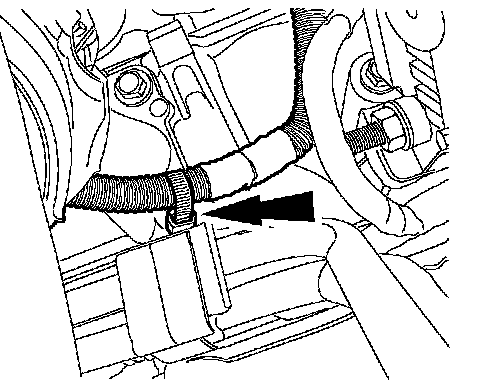

1. Remove the wire harness retainer from the steel fluid cooling tube support bracket.





2. Remove the steel fluid cooling tube support bracket.

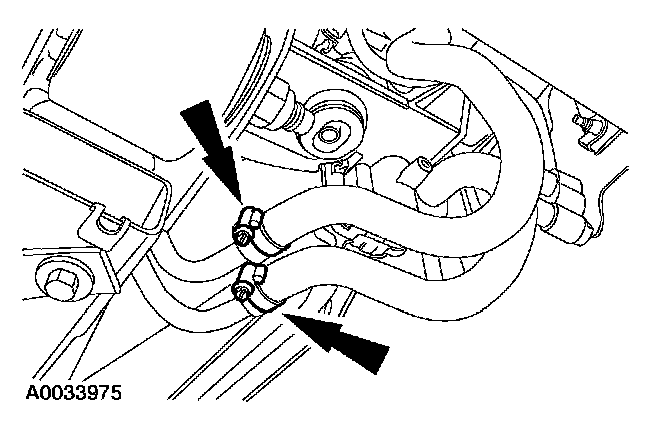

Item 3: Transmission Fluid Cooler Hose Clamps Removal Note

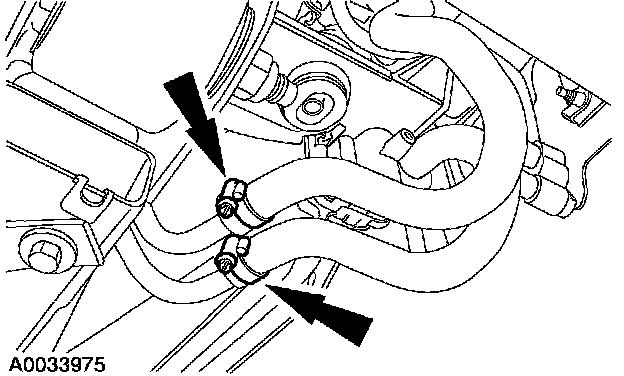

1. Remove the transmission fluid cooler hose clamps.

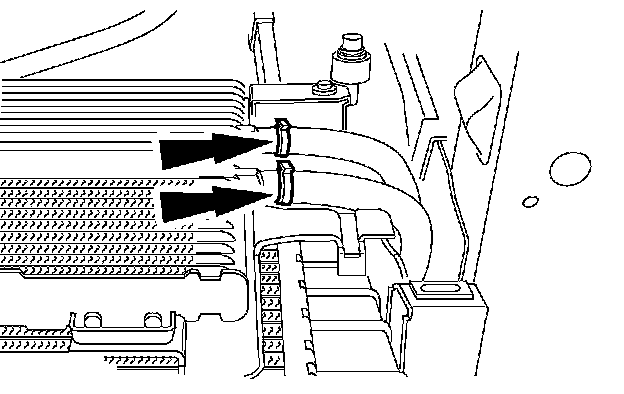

Items 5 and 7: Transmission Fluid Cooler Hose Clamps Removal Note





1. Remove and discard the transmission fluid cooler hose clamps.

Items 5 and 7: Transmission Fluid Cooler Hose Clamps Installation Note

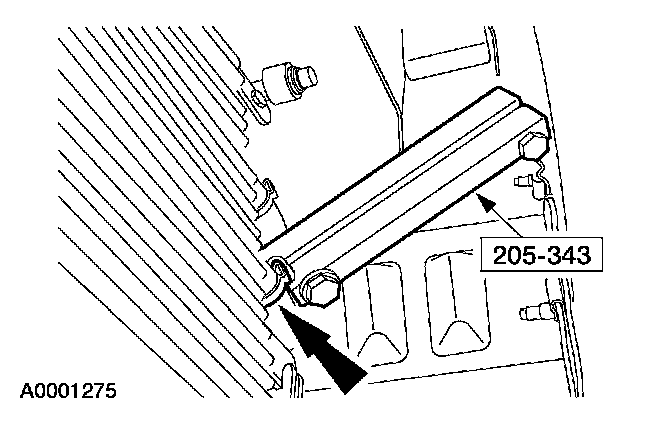

1. Using the special tool, install new transmission fluid cooler hose clamps.

Item 3: Transmission Fluid Cooler Hose Clamps Installation Note





1. Install the transmission fluid cooler hose clamps.

Item 2: Transmission Fluid Cooler Line Bracket Nut Installation Note





1. Install the steel fluid cooling tube support bracket.

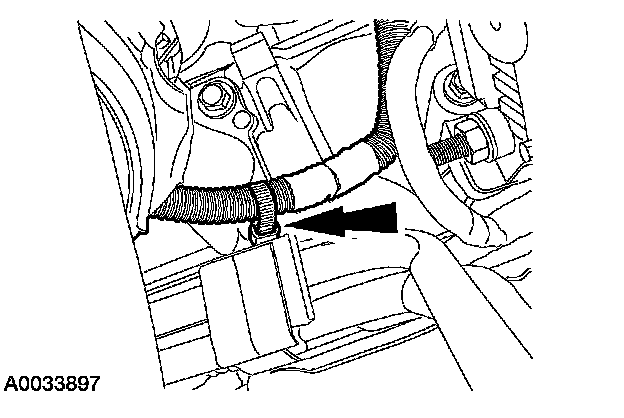

2. Install the wire harness retainer to the steel fluid cooling tube support bracket.
