Transmission Mount: Service and Repair

Transmission Support Insulator

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Support the transmission with a transmission jack.

Part 1 Of 2:

Part 2 Of 2:

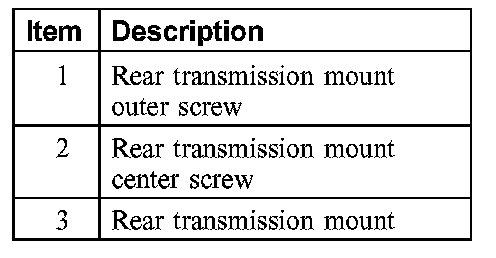

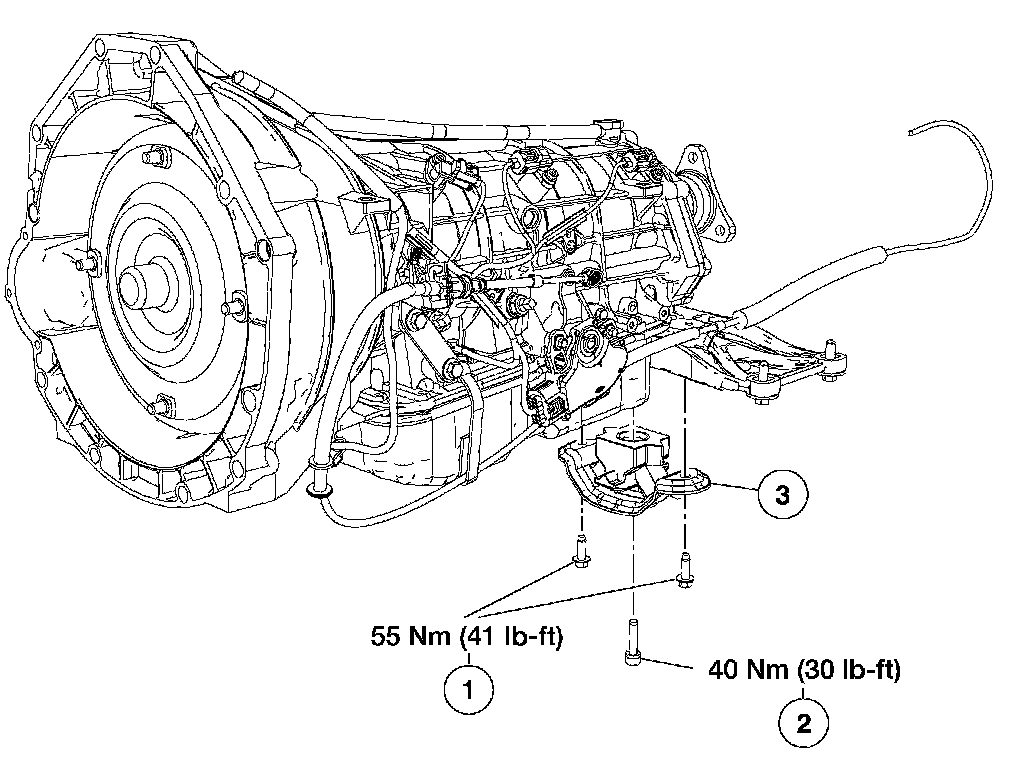

3. Remove the parts in the order indicated in the illustration and table.
4. To install, reverse the removal procedure.
