Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Rear Electronic Module (REM) C420a

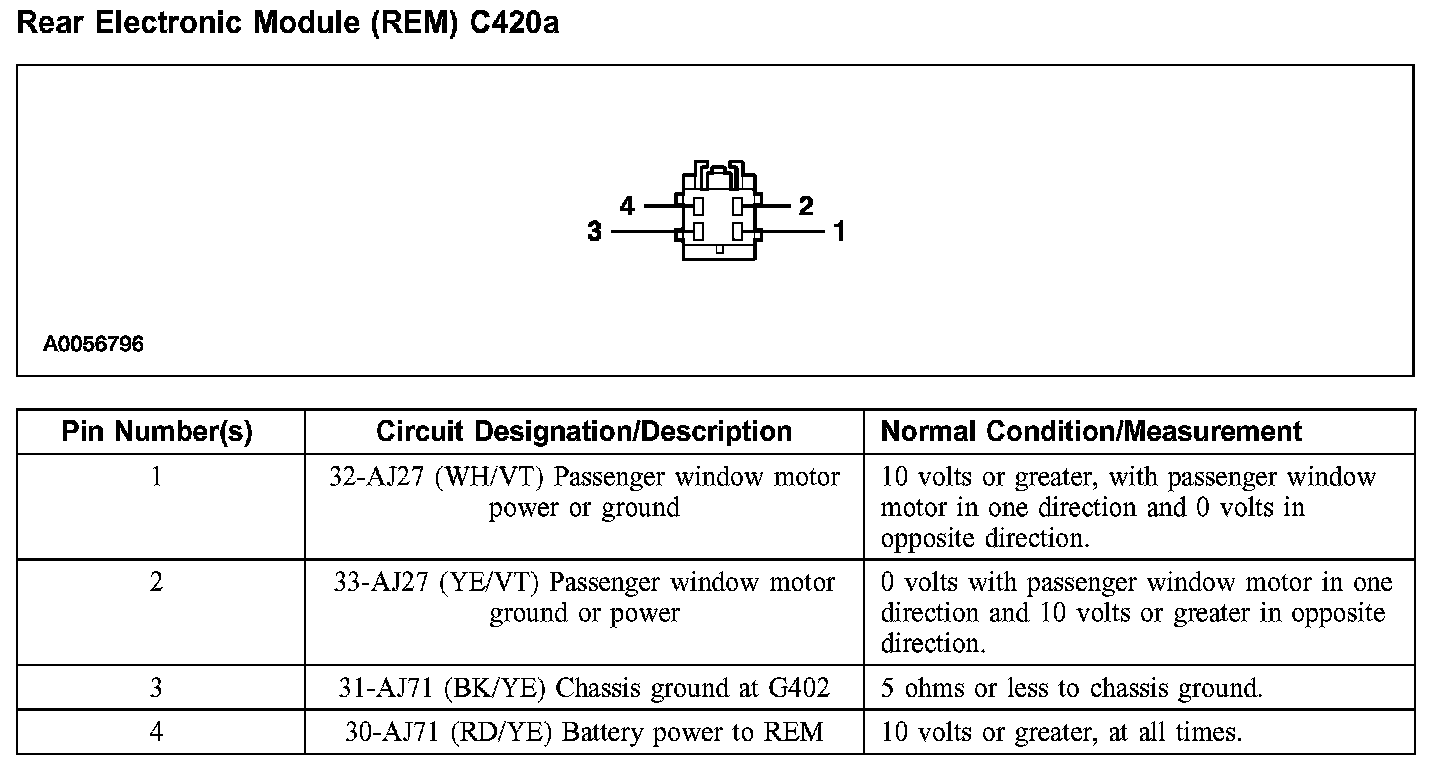

Rear Electronic Module (REM) C420a

Rear Electronic Module (REM) C420a:
