Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Rear Electronic Module (REM) C420e

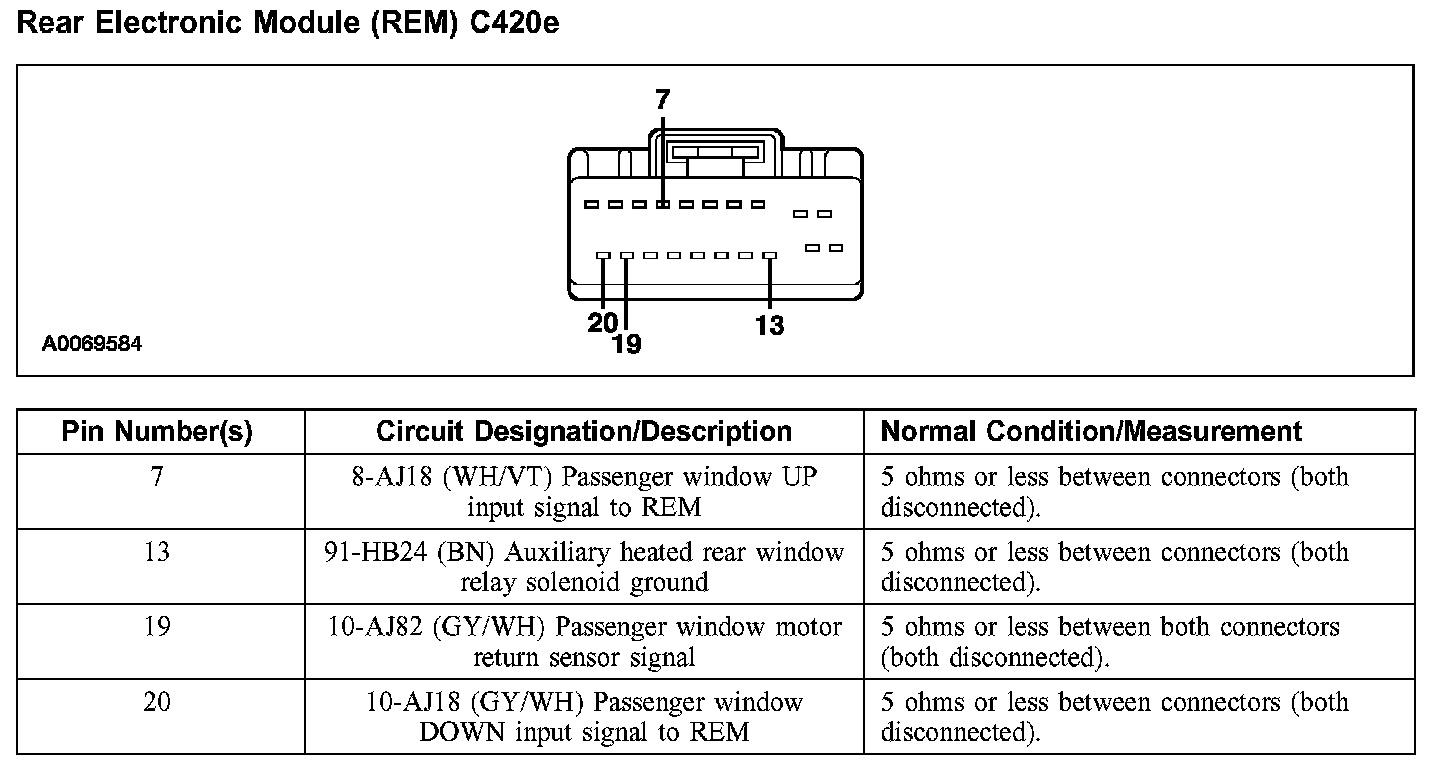

Rear Electronic Module (REM) C420e

Rear Electronic Module (REM) C420e:
