Test G

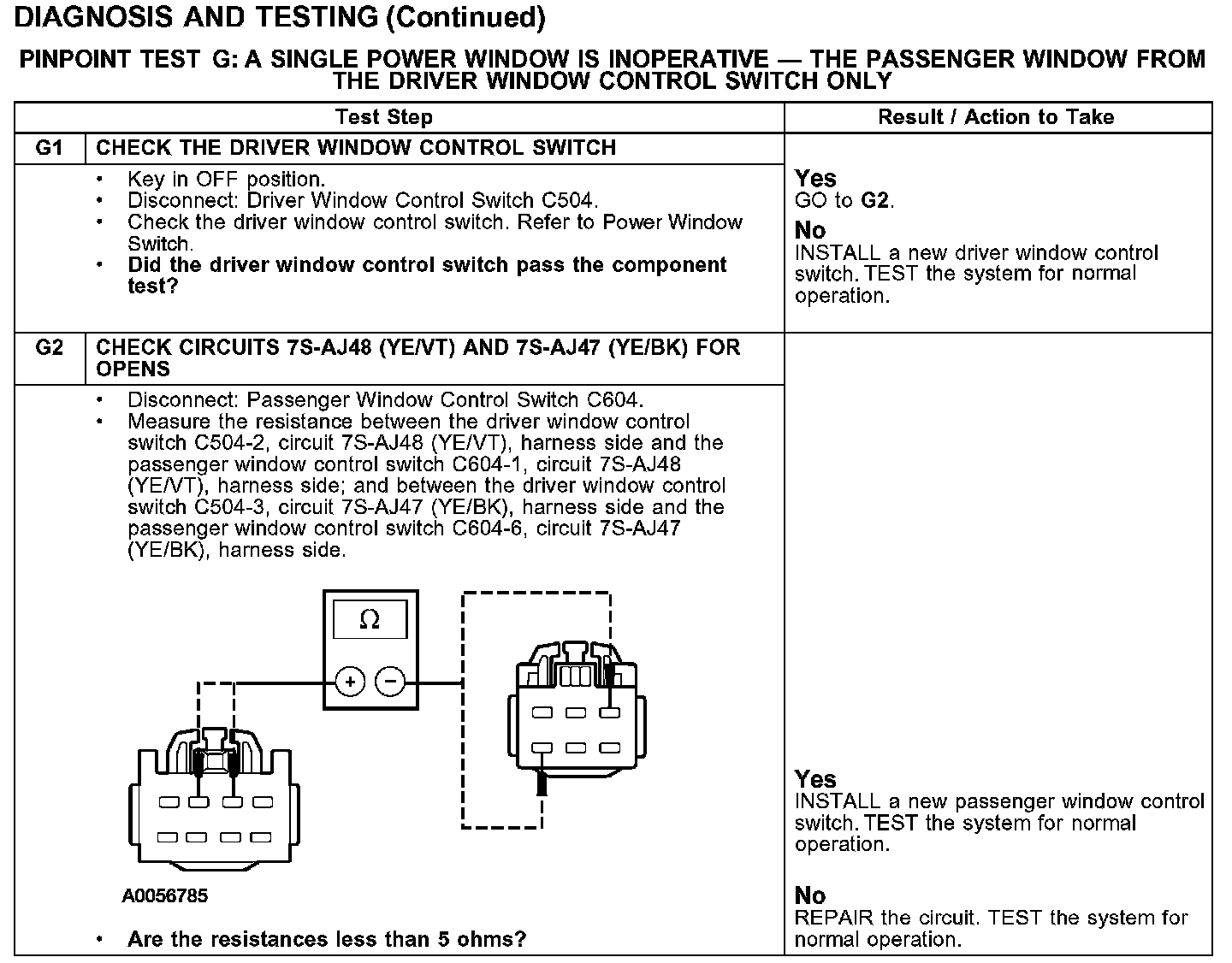

PINPOINT TEST G: A SINGLE POWER WINDOW IS INOPERATIVE - THE PASSENGER WINDOW FROM THE DRIVER WINDOW CONTROL SWITCH ONLYTest G1-G2:
Normal Operation
The driver window control switch sends a voltage signal in circuits 7S-AJ48 (YE/VT) and 7S-AJ47 (YE/BK) to the passenger window control switch and through the switch to the REM. The REM applies power and ground to the appropriate passenger window motor circuits in order to operate the passenger window in the commanded direction.
Possible Causes
- circuit 7S-AJ48 (YE/VT) open
- circuit 7S-AJ47 (YE/BK) open
- driver window control switch
- passenger window control switch
