Front Door Window Glass: Adjustments
DOOR WINDOW GLASS ADJUSTMENT1. Remove the door trim panel.
2. Remove the water shield.
3. Connect the window control switch electrical connector.
4. Connect the battery.
5. Remove the convertible top weatherstrip.
6. NOTE: The door must be closed to carry out this step.
Position the door window glass to the full up position.

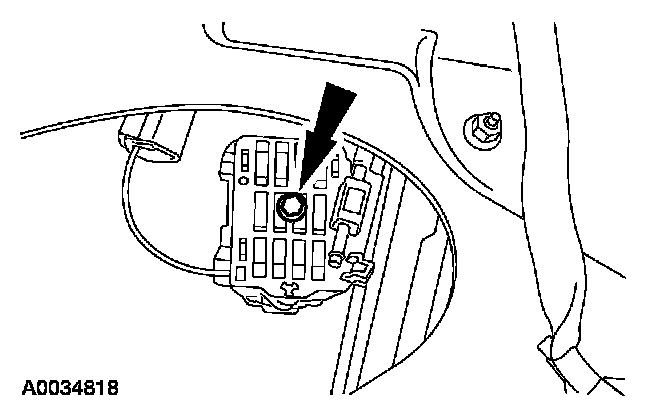

7. Loosen the 2 door window regulator clamp bolts.
8. Install a 13 mm (0.52 inch) wedge between the top of the glass and the convertible top No. 4 frame.

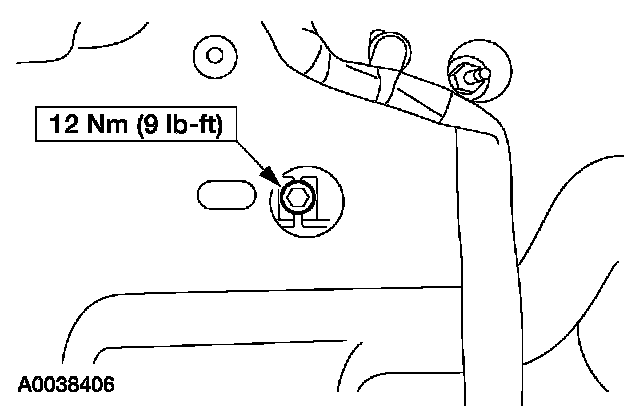

9. Tighten the 2 door window regulator clamp bolts.
10. Remove the 13 mm (0.52 inch) wedge.
11. Install the convertible top weatherstrip.
12. Disconnect the window control switch electrical connector.
13. Disconnect the battery.
14. Install the water shield.
15. Install the door trim panel.
16. Operate the door window glass and check for binding and correct alignment.
