Windshield Washer Reservoir: Service and Repair

WINDSHIELD WASHER PUMP AND RESERVOIR

REMOVAL
1. Remove the RF wheel and tire assembly.

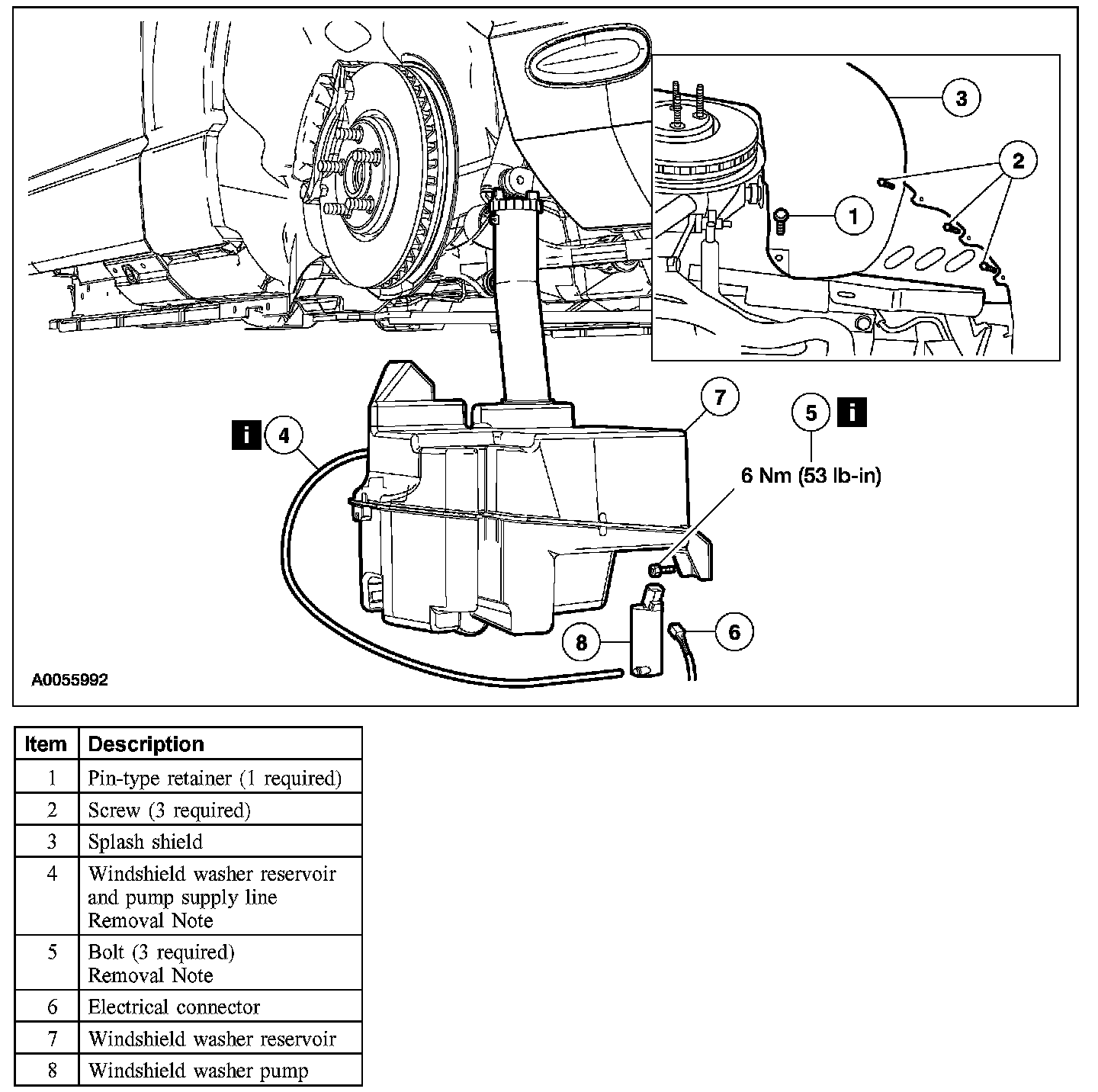

2. Remove the parts in the order indicated in the illustration and table.

Item 4: Windshield Washer Reservoir and Pump Supply Line Removal Note
1. Windshield washer fluid should be collected in a container after the windshield washer hose is disconnected.

Item 5: Bolt Removal Note
1. Disconnect the electrical connector before removing the bolts.

INSTALLATION
1. To install, reverse the removal procedure.
