Antenna

ANTENNA

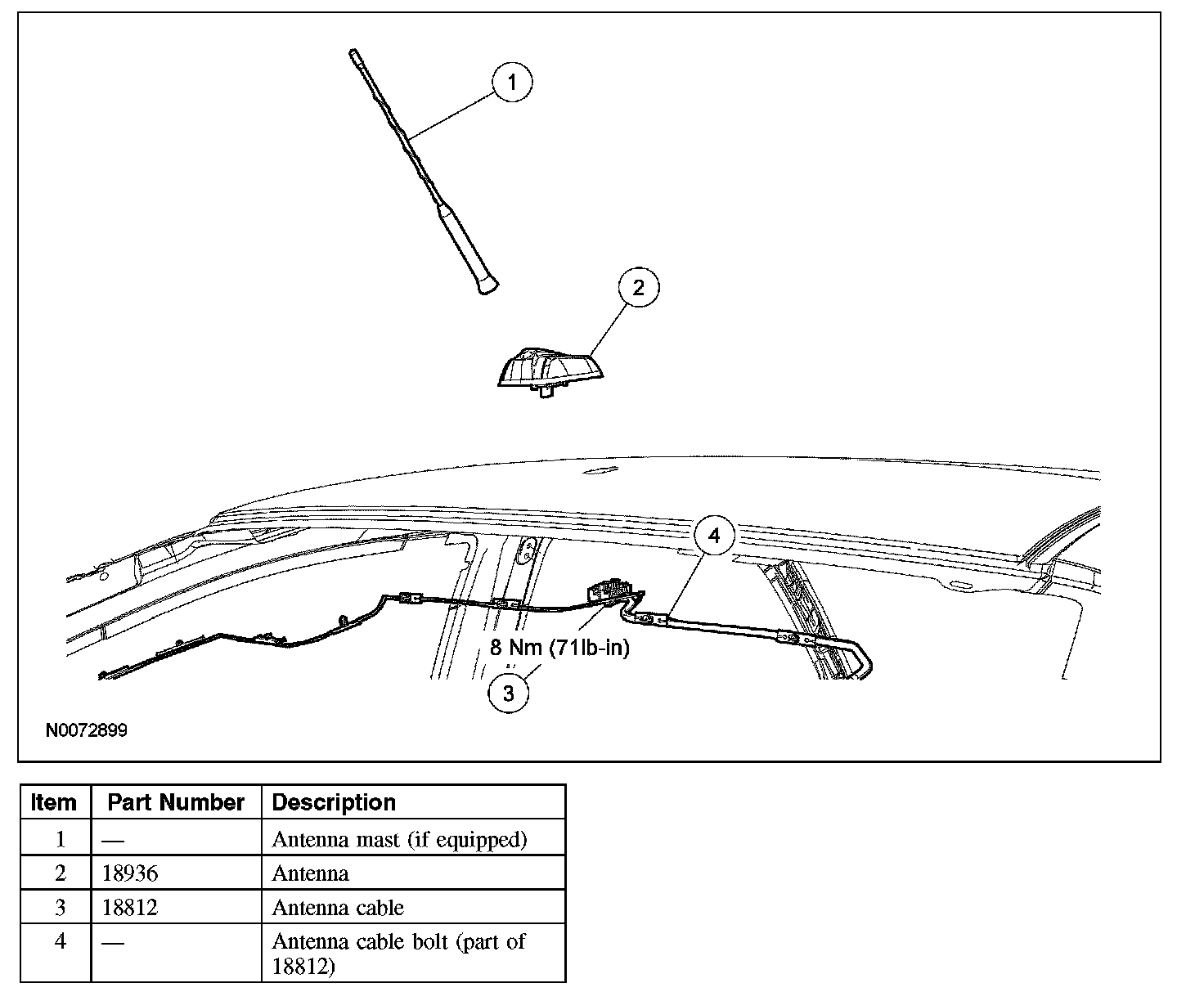

Removal and Installation
1. Remove the antenna mast, if equipped.
2. Remove the LH and RH C-pillar trim panels.
3. Carefully lower the rear of the headliner to gain access to the antenna cable bolt.
4. Loosen the antenna cable bolt completely, and disconnect the antenna cable from the antenna.
- To install, tighten to 8 Nm (71 lb-in).

5. Remove the antenna.
6. To install, reverse the removal procedure.
