Antenna Cable - AM/FM

ANTENNA CABLE - AM/FM

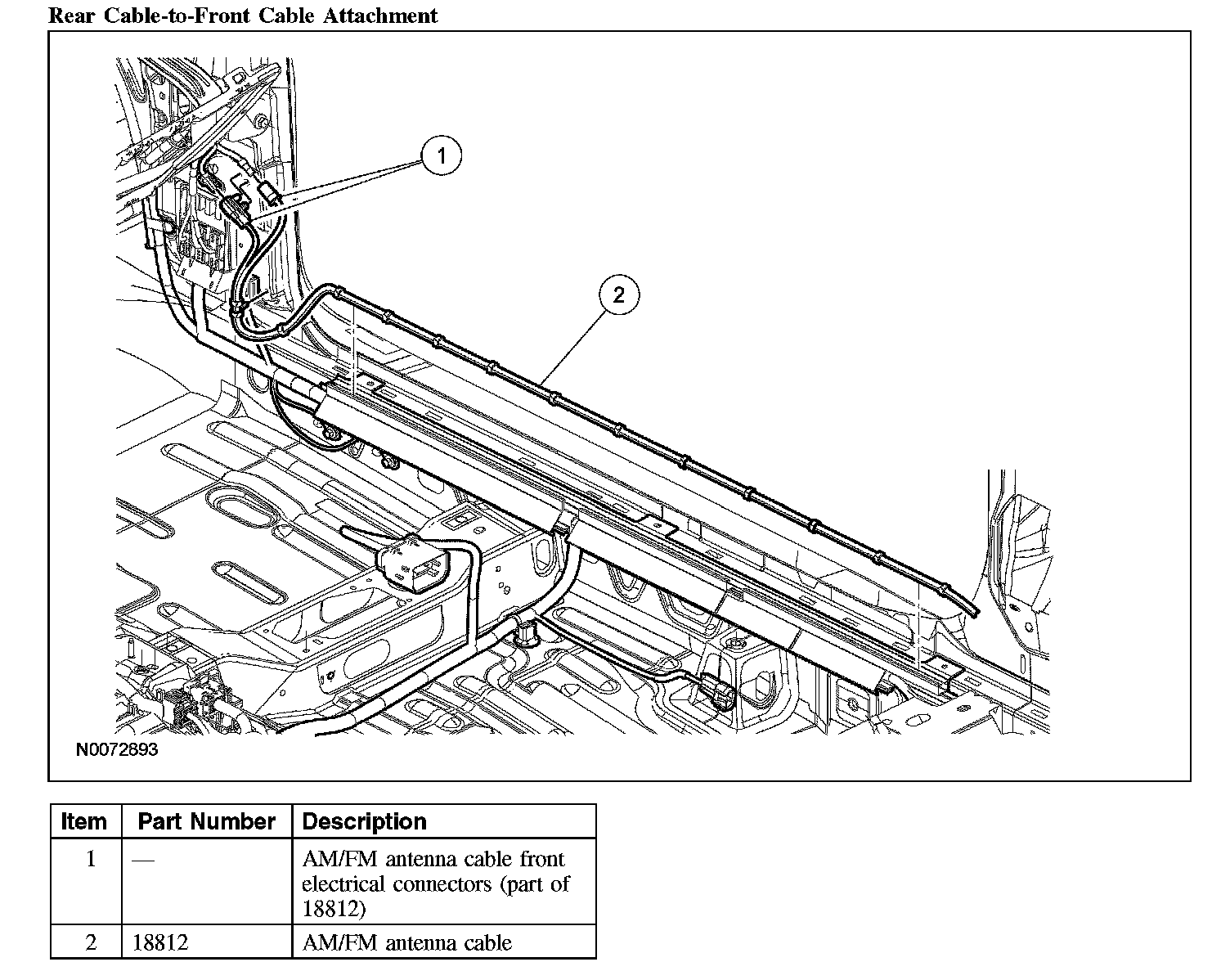

Rear Cable-to-Front Cable Attachment:

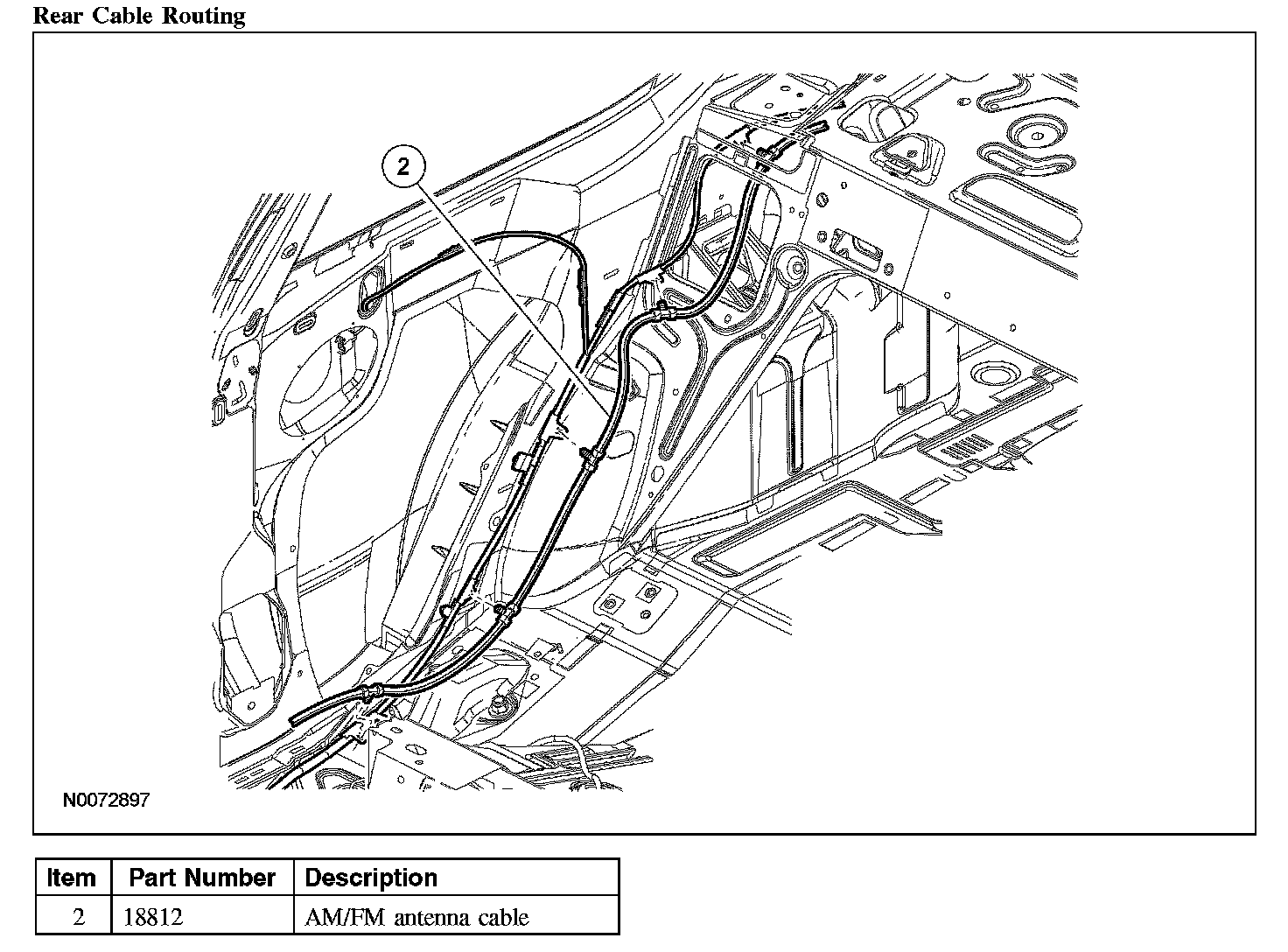

Rear Cable Routing:

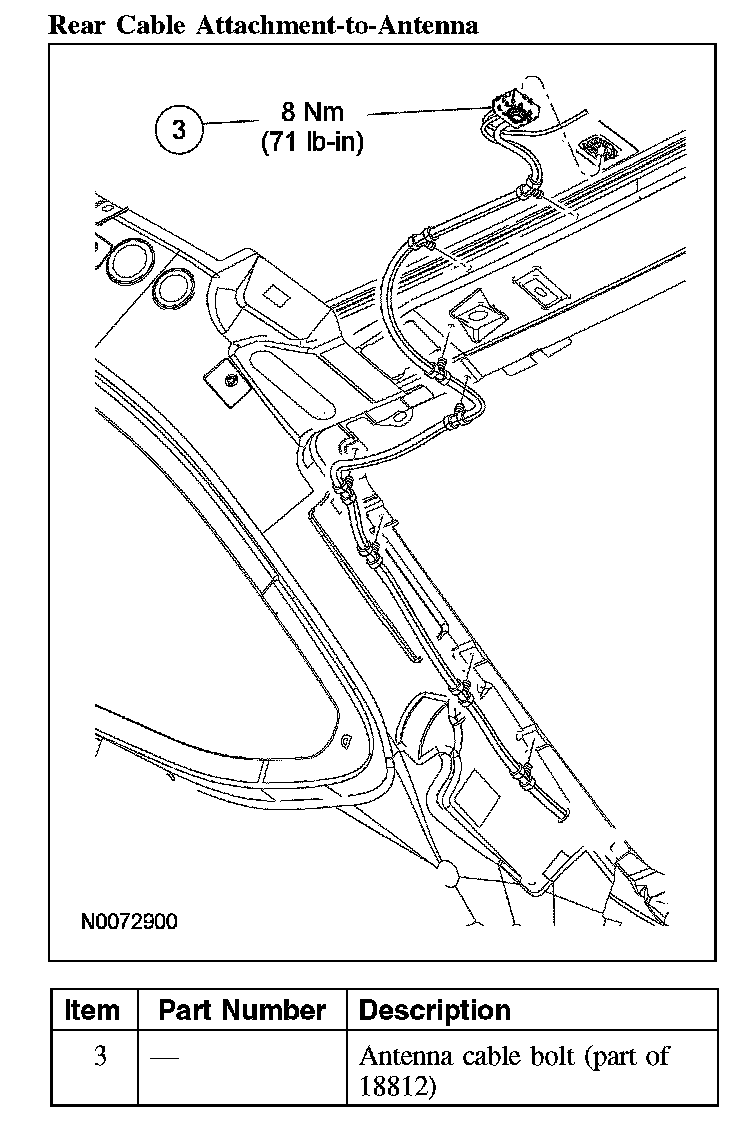

Rear Cable Attachment-to-Antenna:

Removal and Installation

NOTE: The front AM/FM antenna cable is not shown, but it is serviceable.

Front cable
1. Remove the audio control module (ACM).

Rear cable
2. Remove the C-pillar trim panels.
3. Remove the RH quarter trim panel.
4. Remove the door scuff plate trim panels.

5. NOTE: Lower the rear of the headliner enough to gain access to the antenna cable bolt.

Loosen the antenna cable bolt and disconnect the antenna cable from the antenna.
- To install, tighten to 8 Nm (71 lb-in).

All cables
6. Remove the RH A-pillar lower trim panel.
7. Disconnect the AM/FM antenna cable front electrical connectors.
8. Remove the AM/FM antenna cable.
9. To install, reverse the removal procedure.
