Antenna Cable - Satellite Radio

ANTENNA CABLE - SATELLITE RADIO

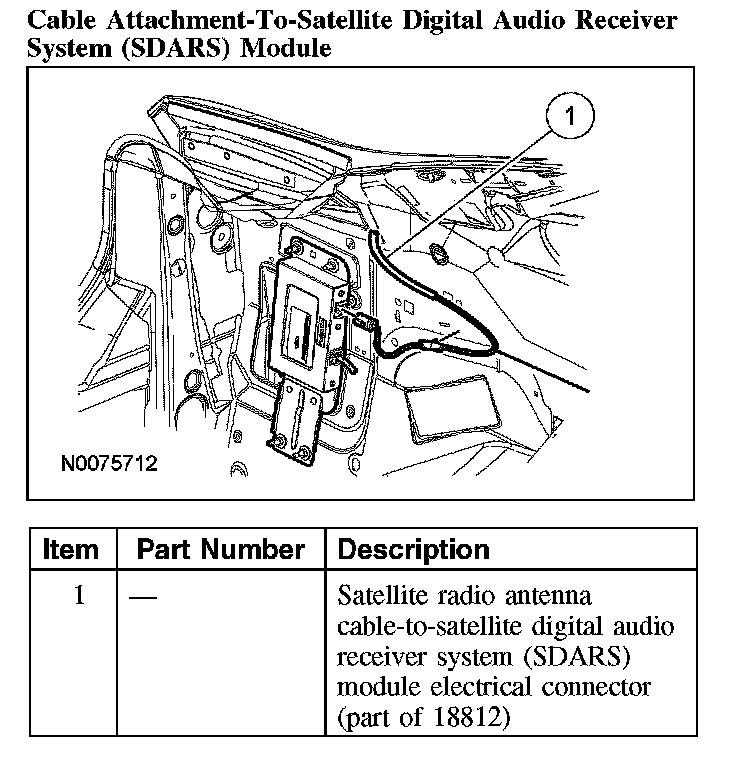

Cable Attachment-To-Satellite Digital Audio Receiver System (SDARS) Module:

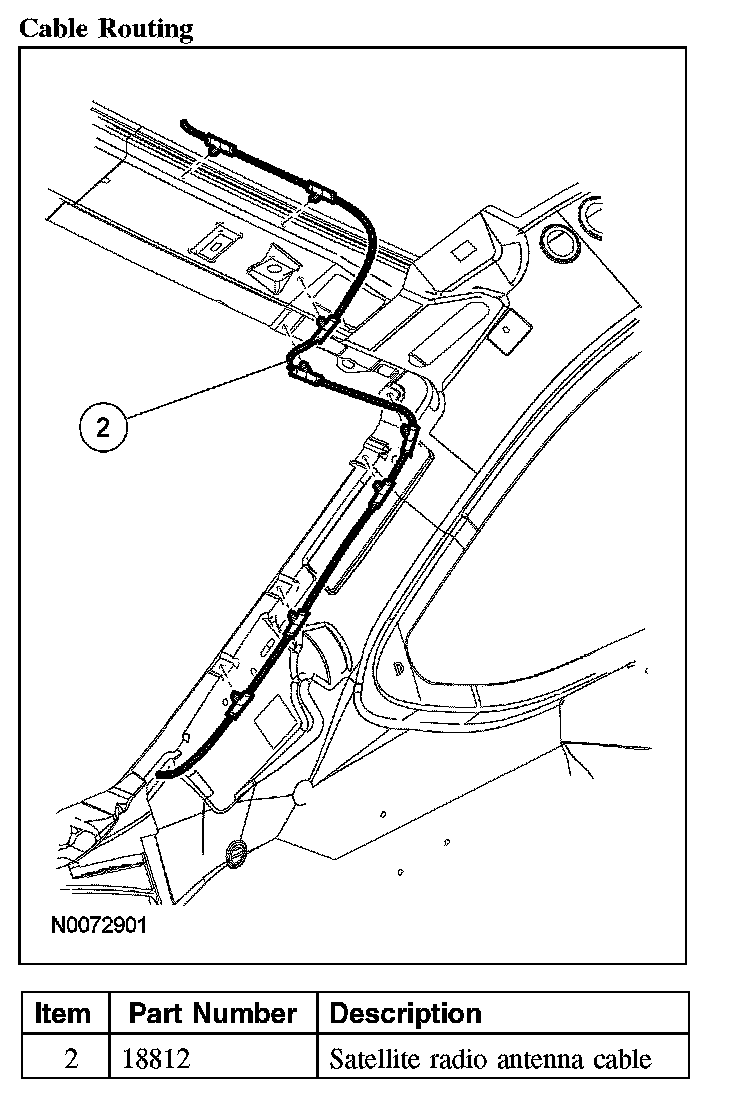

Cable Routing:

Removal and Installation
1. Remove the C-pillar trim panels.

2. NOTE: Lower the rear of the headliner enough to access the bolt.

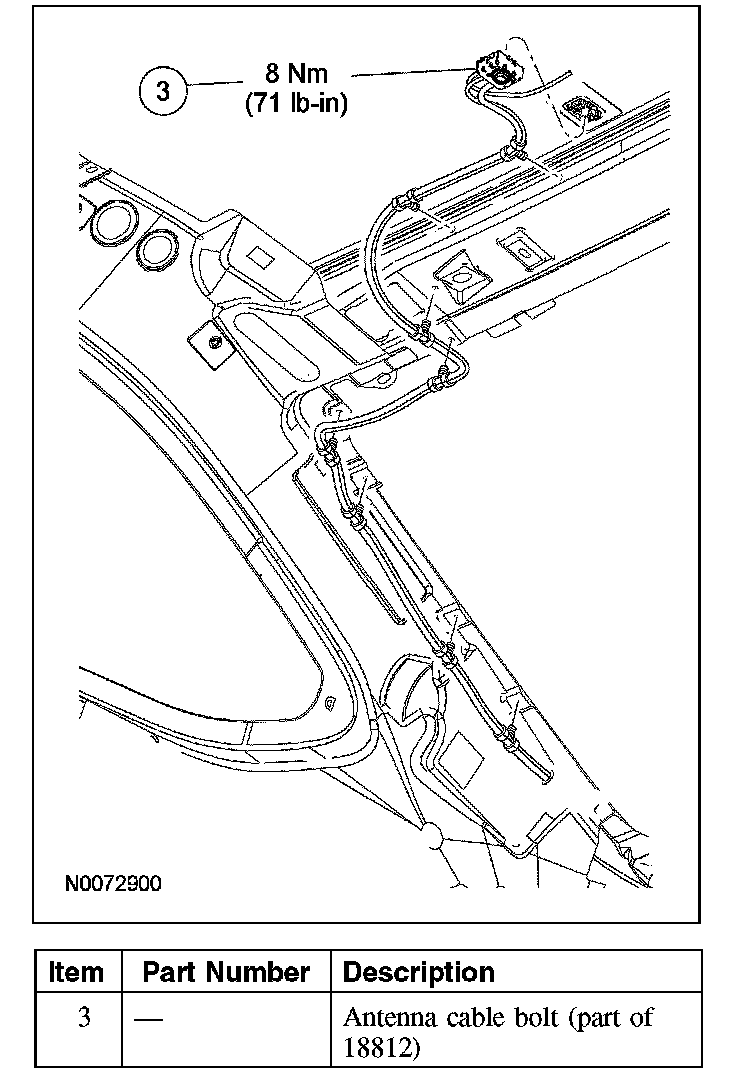

Loosen the antenna cable bolt and disconnect the satellite radio antenna cable from the antenna.
- To install, tighten to 8 Nm (71 lb-in).

3. Remove the parcel shelf.
4. Disconnect the satellite radio antenna cable-to-satellite digital audio receiver system (SDARS) module electrical connector.
5. Remove the satellite radio antenna cable.
6. To install, reverse the removal procedure.
