Home >> Ford >> 2008 >> Focus L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair >> Quarter Panel Speaker

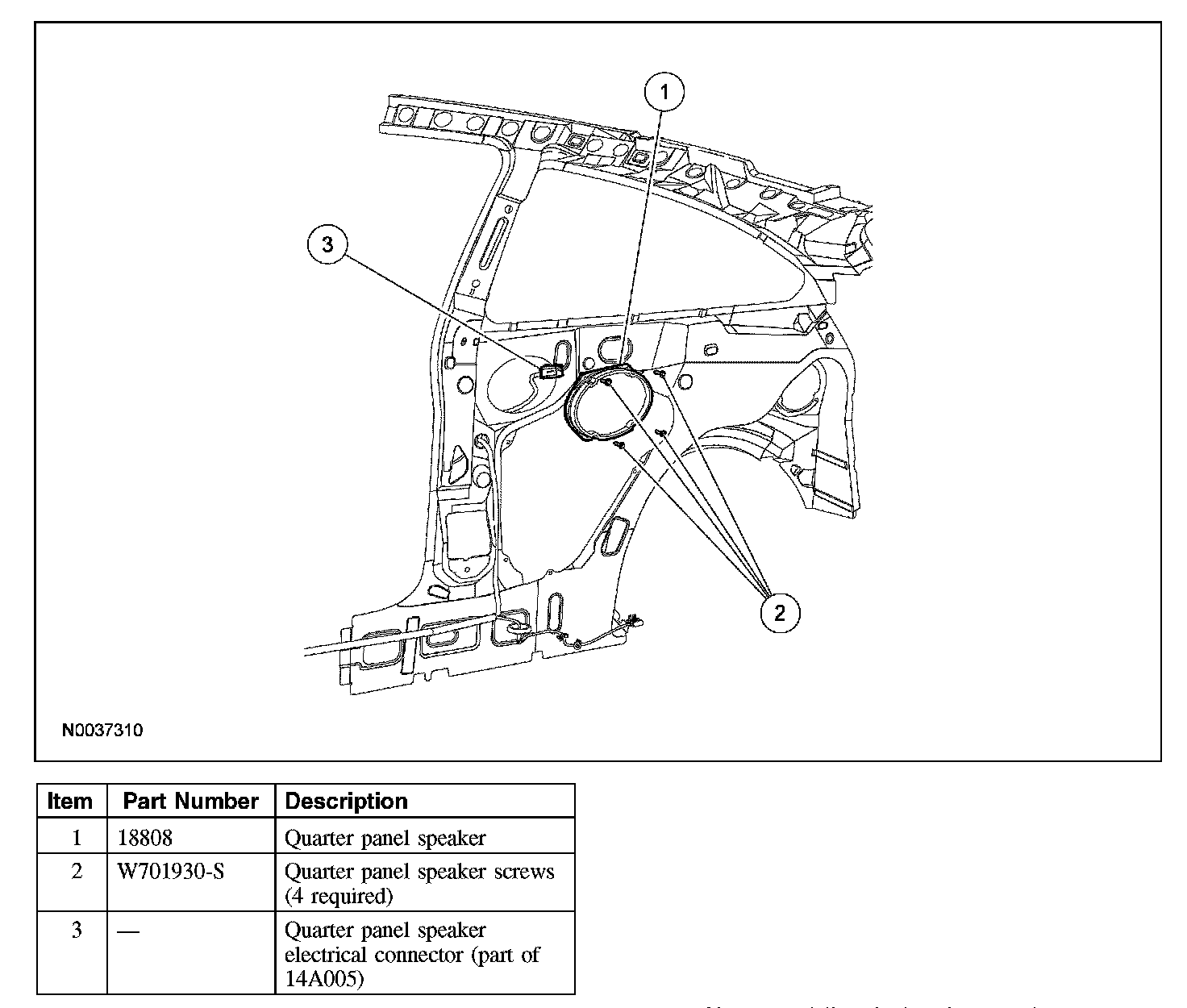

Quarter Panel Speaker

QUARTER PANEL SPEAKER







Removal and Installation
1. Remove the C-pillar trim panel.
2. Remove the 4 screws and the quarter panel speaker.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
